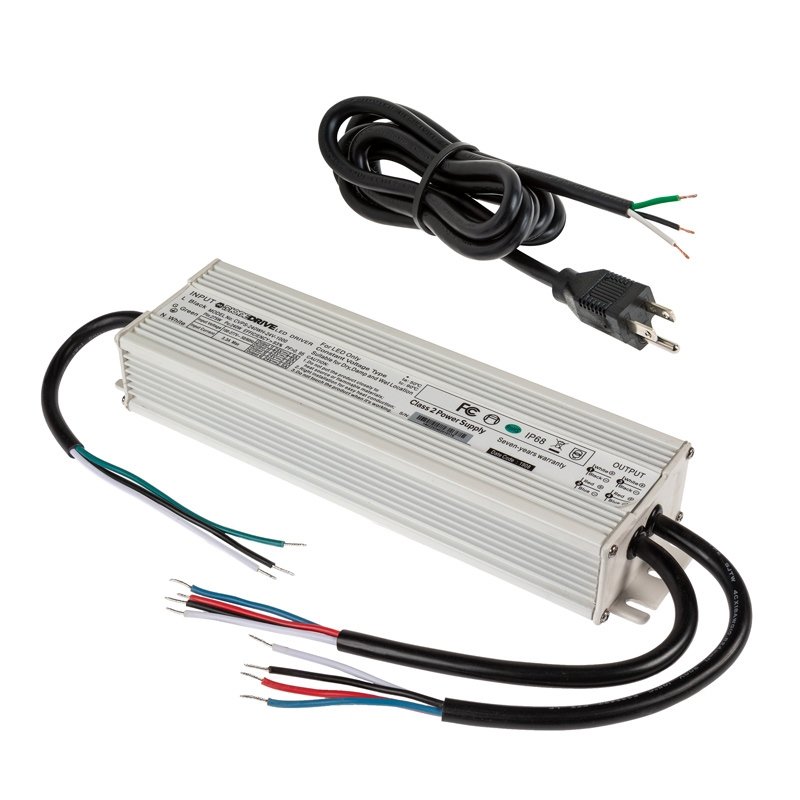

LED Switching Power Supply - DiodeDrive® Series - 240W Enclosed Power Supply - 24V

LED Switching Power Supply - DiodeDriveÂ® Series - 60W-240W Enclosed Power Supply - 24V - 240 Watt - 24 Volt ( with Power Cord)

Name: LED Switching Power Supply - DiodeDriveÂ® Series - 60W-240W Enclosed Power Supply - 24V - 240 Watt - 24 Volt ( with Power Cord)
Brand: Super Bright LEDs
SKU: CVPS-240WH-24V-1000(POWERCORD)
Price: 97.90 USD
Availability: InStock
Rating: 2.7 (3 reviews)

Part Number

CVPS-240WH-24V-1000(POWERCORD)

Features

DiodeDrive Class 2 power supply
Universal AC input; single, dual, or quadruple output
Protected against short circuit, overload, and over voltage
IP68 rated waterproof housing
UL Recognized, 7 year warranty

View more details

Skip to the end of the images gallery

13 photos

Skip to the beginning of the images gallery

Overview

DiodeDrive Class 2 switching power supply is fully enclosed with a heavy duty case to with stand water and debris for a long lifespan. Guaranteed with a 7 year warranty, the reliable device is designed for constant voltage operation. Widely applicable, use it to power LED lights inside or outside with out energy waste or risk of circuit overload.

Product Details:

Class 2 switching power supply; no FG
Designed for constant voltage operation
Single, dual, or quadruple output at 240W
Waterproof IP68
Wide voltage input; 100-277 VAC
UL Recognized
7 year warranty

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Recognized label ensures that a product component, such as a power supply or LED light strip, has been tested and verified as safe to use in a UL-Listed product. UL-Listed product samples are tested by UL and meet their Standards for Safety requirements.

In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.

Super Bright LEDs, Inc. offers a 7-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

LED Electronic Displays
Stage & Theaters
Architectural Lighting
Sign Lighting
Strip Lights

Specifications

Built-in PFC Function	No
Certifications/Compliance	CE, Class 2, UL Recognized
Dimmable	No
Environmental Rating	Suitable for Wet Locations, Waterproof
Input Connection Type	Pigtail
Input Frequency Range	50 ~ 60 Hz
Input Voltage	100-277 VAC
IP Rating .	IP68
Output Voltage	24 VDC

Print Specifications

Part NO	Ambient Operating Temperature Range	Number of Outputs	Output Power	Output Current
CVPS-240WH-24V-1000	-40~+50 °C (-40~+122 °F)	4	240 Watts	10.0A (10000mA)
CVPS-240WH-24V-1000(POWERCORD)	-40~+50 °C (-40~+122 °F)	4	240 Watts	10.0A (10000mA)
CVPS-60WH-24V-250	-40~+60 °C (-40~+140 °F)	1	60 Watts	2.5A (2500mA)
CVPS-60WH-24V-250(POWERCORD)	-40~+60 °C (-40~+140 °F)	1	60 Watts	2.5A (2500mA)
