Under Cabinet LED Lighting Kit - Complete LED Light Strip Kit for Kitchen Counter Lighting - 380 Lumens/ft.

Part Number: NFLSK-UC
21 photos
Select Type:
StandardHigh Brightness
Select LED Color:
Whites
Cool 10000KCool 6500KNatural 4500KNatural 4000KWarm 3250KWarm 3000K
Discontinued
Various Options In Stock
Starting at $89.95 / kit
Volume price as low as $67.46
Orders Ship Today!  9 Hours and 26 Minutes remaining
Notes
  • Select options to see various notes.

Overview

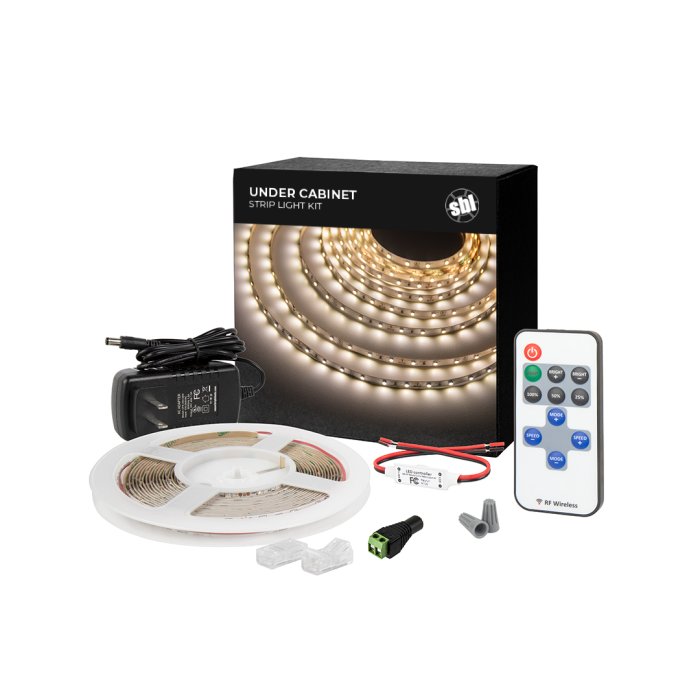

This LED light strip kit is perfect for cabinet lighting, under-cabinet lighting, toe-kick lighting, cove lighting, bookshelf lighting, showcase lighting, bias lighting, cupboard lighting, trade show lighting, or for other indoor applications where space is limited. The kit includes a plug-and-play LED light strip, push-button dimmer, remote and UL-listed 12V power supply. The flexible light strip has 300 LEDs (3528 SMD) that emit a wide 180° viewing angle. Reeled LED strip is 16-1/2' long and can be cut into 3-LED segments. Easy installation with peel-and-stick 3M VHB adhesive backing. The non-weatherproof strip operates within a wide 9-14.8V DC range and is designed to last 30,000 hours. Available in cool, natural and warm white standard or high-density versions. Price per kit.

Important Notes - Please read before purchasing:
Notes
  1. This kit is only to be used with the included 16ft. LED light strip. Additional strip added can cause damage to the included power supply.
5 Years
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. If the same product is no longer available, a product of equal value may be substituted. Read More
UL Listed
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
ISA Approved
Products that have an International Solid-State Lighting Alliance (ISA) label are approved as quality, energy-efficient LED lights that help to create a sustainable society.
RoHS Compliant

RoHS stands for Restriction of Hazardous Substances. Certain materials used in electronics and electrical products have been deemed hazardous to people and the environment and, therefore, must be limited. For a product to be RoHS compliant, testing must be performed and documented to show limited or no use of cadmium, hexavalent chromium, lead, mercury, polybrominated biphenyls, and polybrominated diphenyl ethers.

Download our statement regarding RoHS.

Under Cabinet LED Lighting Kit - Complete LED Light Strip Kit for Kitchen Counter Lighting - 380 Lumens/ft. - NFLSK-UC
 Applications
LED Cabinet Lighting
Showcase Lighting
Bookshelf Lighting
Cove LED Lighting
Under-Cabinet Lighting
Bias Lighting
Cupboard Light

The NFLSK-UC has an operating voltage range of 100~240 VAC
Wide Operating Voltage Range
9~14.8 VDC Light Strip with 90~264VAC Power Supply

High Efficiency
High Efficiency
Environment Friendly, Low Energy Draw

High Output
Up To 5600 Lumens of Natural White Light

LEDs in NFLSK-UC will last
Longevity
Will Outlast Dozens of Incandescent Bulbs

Adhesive Backing
Adhesive Backing
Easy Install - Peel-And-Stick Backing

Cut Into Strips
Cut Into Strips
Can Be Easily Cut Into 3-LED Segments

5 Years
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. If the same product is no longer available, a product of equal value may be substituted. Read More
UL Listed
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
ISA Approved
Products that have an International Solid-State Lighting Alliance (ISA) label are approved as quality, energy-efficient LED lights that help to create a sustainable society.
RoHS Compliant

RoHS stands for Restriction of Hazardous Substances. Certain materials used in electronics and electrical products have been deemed hazardous to people and the environment and, therefore, must be limited. For a product to be RoHS compliant, testing must be performed and documented to show limited or no use of cadmium, hexavalent chromium, lead, mercury, polybrominated biphenyls, and polybrominated diphenyl ethers.

Download our statement regarding RoHS.

Specifications

Swipe left to see additional specifications
Part NONumber of LEDs in UnitEmitting ColorCCT / Wavelength
Intensity Per FootIntensityRadiant PowerBeam Angle
Current Draw @ Operating Voltage
Power ConsumptionMax Run
CRI
PriceOperating Temperature
NFLSK-NW300-UC-Natural 4500K4500 K114 lm/ft1320 lm--1450 mA17.4 W-73$89.95-
NFLSK-WW300-UC-Warm 3000K3000 K114 lm/ft1110 lm--1300 mA15.6 W-73$89.95-
NFLSK-NW300X3-UC-Natural 4000K4000 K380 lm/ft5610 lm--3200 mA38 W-73$119.95-
NFLSK-WW300X3-UC-Warm 3250K3250 K380 lm/ft5040 lm--3500 mA42 W-73$119.95-
NFLSK-CW300-UC-Cool 10000K10000 K95 lm/ft1020 lm--1300 mA15.6 W-79$89.95-
NFLSK-CW300X3-UC-Cool 6500K6500 K380 lm/ft5130 lm--3500 mA42 W-79$119.95-
Strip Specifications
Full Length 196.9in (16.40ft)
Section Length 5cm (1.97in)
Strip Width 10.15mm (0.4in) or 8mm (0.315in)
Input Voltage 9~14.8 VDC
Number of LEDs 300
LEDs per Segment 3
LED Color Cool White, Natural White, or Warm White
LED Type 5050 SMD / 3528 SMD
LED Lifetime 30000 Hours
Beam Angle 180 degree
Strip Finish White
Polarity Sensitive Yes
Wire Length 50.8cm(20in)
Controller Specifications
Input Voltage 5~24 VDC
Rated Current 15A at 12V Max
Remote Specifications
Type Radio (RF)
Battery Type 1 x CR2025
Power Supply Specifications
Input Voltage 90~264VAC
Input Frequency 47~63 Hz
Output Voltage 12 VDC
Output Current 5A Max
Total Power Consumption 60 Watts Max
Wire Length 101.6cm(40in)
NFLSK-UC - Under Cabinet LED Lighting Kit - Complete LED Light Strip Kit for Kitchen Counter Lighting
Under Cabinet LED Lighting Kit - Complete LED Light Strip Kit for Kitchen Counter Lighting
NFLSK-UC - Under Cabinet LED Lighting Kit - Complete LED Light Strip Kit for Kitchen Counter Lighting
Under Cabinet LED Lighting Kit - Complete LED Light Strip Kit for Kitchen Counter Lighting

Accessories

Reviews

Overall Rating

Total Reviews

35

Tell Us What You Think

Share your own experience and photos of this product. Doing so will help inform other potential buyers and allow us improve our product lines. It may take up to 72 hours for your review to appear.

Sign In Required to Write a Review
Click here to sign in to your account
  • Name
    David
  • Technical Level
    Average
  • Part Number
    NFLSK-WW300-UC
  • Reviewed On
    08/29/14

Complete the Look

Installation was pretty straight forward. I hooked these up to a Z-Wave device outlet to come on at sunset with other lamps in the house. Makes a great cooking light when on full and an even better night / mood light when dimmed. Pick up some extra connectors and some wire just in case. I ended up drilling through the cabinets to hide the wire. It makes for a clean install. Also, I have power in the middle of this run, so I didn't see any issues with the dreaded voltage drop. Make sure you install the strips as close to the front of the cabinet as possible. I will be picking up a few more of these kits for other projects (closet lighting, safe lighting, inside cabinet lighting). They make battery adapters and have them for sale at superbrightleds, so no need to worry about running electric to power them. Great purchase, great product, great company!

Was this review helpful?
460

  • Name
    Jeff
  • Technical Level
    Advanced
  • Part Number
    NFLSK-CW300-UC
  • Reviewed On
    06/02/15

Nice accent lighting

I purchased two sets of these lights for under-cabinet and above cabinet lighting. The natural light gives off a nice light and the dimmable feature makes it a very nice accent lighting for the kitchen. The light strip is easy to work with however the corner connectors take some time to get the connections. I had to to call technical support to find some tips to getting the connectors to work. It took longer than expected to get everything setup, but that included time to hide the wiring and give it a professional look. The hardest part was connecting the wires under the cabinet, between cabinets. I ended up drilling a small hole through the frames and then splicing the supplied connector to give more length between the sections. I would recommend this product and company. The technical support people were very helpful.

Was this review helpful?
170

  • Name
    Z
  • Technical Level
    Average
  • Part Number
    NFLSK-CW300-UC
  • Reviewed On
    06/05/15

Under Counter Lighting


You can't beat this product for the money. One of the lowest cost home improvements you'll ever make. You'll be very happy with the results, this product is OUTSTANDING !!

Was this review helpful?
100

  • Name
    Chris
  • Technical Level
    Expert
  • Part Number
    NFLSK-CW300-UC
  • Reviewed On
    05/31/16

TOP NOTCH LIGHTING

WE HAVE INSTALLED APPROXIMATELY 30 OF THESE KITS OVER THE PAST FEW YEARS IN BOTH THE NEW HOMES AND KITCHEN REMODEL PROJECTS WE DO. WE LOVE HOW EASY THE INSTALL PROCESS IS AND THE CLIENTS ARE BLOWN AWAY WITH THE LIGHTING. THE SERVICE, ON TIME DELIVERY AND RESPONSE TO ANY ISSUES IS UNSURPASSED.

Was this review helpful?
90

  • Name
    Steve
  • Technical Level
    Advanced
  • Part Number
    NFLSK-CW300-UC
  • Reviewed On
    03/03/16

Warm white under cabinet lights

The LED light strips were easy to install. The tape on the back is very sticky and adheres well. The RF dimmer is a nice touch and works from almost anywhere in the house. I will buy these lights again.

Was this review helpful?
60
