LED Strip Lights FAQs
What is color temperature? Which one is best?
Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. Natural and cool white are considered ideal for task lighting.
What accessories do I need?
The only thing you need for certain to power a strip light is a power supply. We offer accessories used for installation, such as connectors and aluminum mounting channels. As well as others that add functionality such as such as dimmers, switches, and remote controls. Complete kits are also offered which include everything you need to get started.
| Part NO | Brightness | CCT Value CCT Value | Color Temperature Color Temperature | CRI | Current Draw Current Draw | Series |
|---|---|---|---|---|---|---|

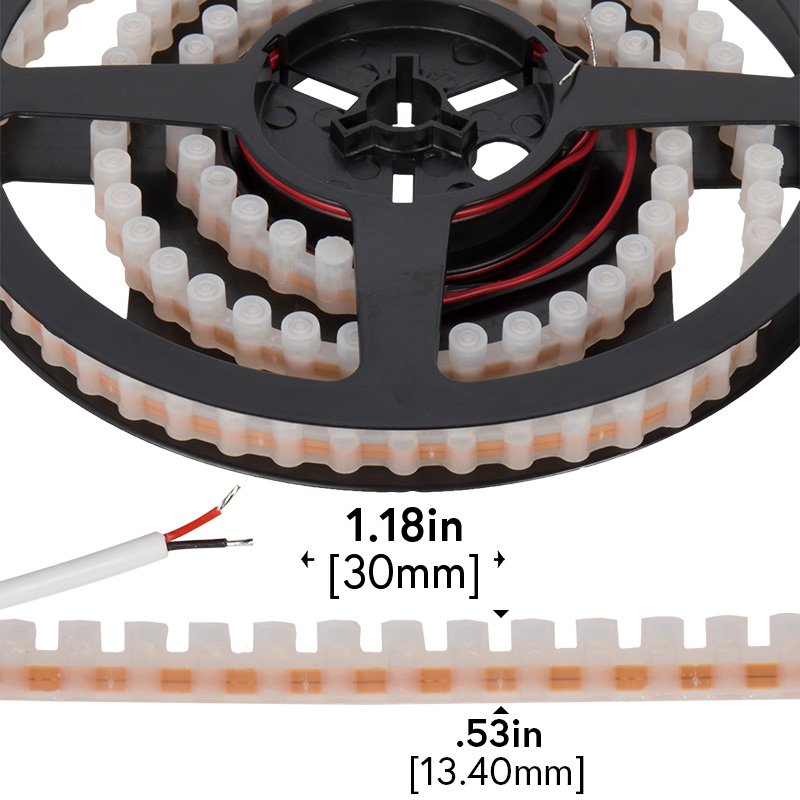

| WFLB-B96 | 85 lm/ft (280 lm/m) | Blue | 460 mA | |||
| WFLB-CW96 | 85 lm/ft (280 lm/m) | 6500K | Cool 6500K | 70+ | 430 mA | |
| WFLB-G96 | 85 lm/ft (280 lm/m) | Green | 640 mA | |||
| WFLB-O96 | 85 lm/ft (280 lm/m) | Orange | 640 mA | |||
| WFLB-R96 | 85 lm/ft (280 lm/m) | Red | 530 mA | |||
| WFLB-UV96 | 85 lm/ft (280 lm/m) | UV (Blacklight) | 640 mA | |||
| WFLB-WW96 | 83 lm/ft | 2700K | Warm 2700K | 70+ | 430 mA | |
| WFLB-Y96 | 85 lm/ft (280 lm/m) | Yellow | 640 mA |
$29.99 ea.
$13.99 ea.
$23.99 ea.
The Mean Well LED switching power supply is a safe and economical choice for powering your LED lighting. It has integrated short circuit, overload, overvoltage, and over-temperature protection. Additionally, it can withstand a 300VAC surge input for 5 seconds and has a built-in cooling fan. A universal AC input range of 100-240VAC and multiple wattage options make it a versatile and easy-to-use option for powering LED lighting systems.
$124.99 ea.
The 4-channel LED DMX Decoder translates DMX512 signals to single-color, tunable white, RGB, or RGBW LED strip lights and fixtures. It can control up to 4 separate constant voltage single-color LED products or one a single RGBW light bar or flexible strip light. Decoder can run in standalone mode using the digital display or under DMX512 digital control signals using an RJ45 or XLR3 input/output interface. Connect up to 4 amps per channel, 16 amps total for the decoder. Control a maximum load of 192W for 12 VDC or 384W for 24 VDC. Includes one male and one female XLR3 connector.
$1.99 ea.
$21.99 ea.
This LED switching power supply has been designed for constant voltage operation. Reliable and widely applicable, it powers LED technology without energy waste or risk of circuit overload. Fully enclosed in a waterproof case.
$19.99 ea.
$12.99 ea.
$124.99 ea.
The 4-channel LED DMX Decoder translates DMX512 signals to single-color, tunable white, RGB, or RGBW LED strip lights and fixtures. It can control up to 4 separate constant voltage single-color LED products or one a single RGBW light bar or flexible strip light. Decoder can run in standalone mode using the digital display or under DMX512 digital control signals using an RJ45 or XLR3 input/output interface. Connect up to 4 amps per channel, 16 amps total for the decoder. Control a maximum load of 192W for 12 VDC or 384W for 24 VDC. Includes one male and one female XLR3 connector.
Our LDK-8A is a universal single-color LED dimmer switch that can dim most 12V DC or 24V DC LED products from 0%-100% using a Pulse Width Modulation (PWM) circuit knob control. The plastic housing has screw terminals for power in and out connections with a maximum load of 8 Amps.
LED dual slide switch and dimmer combo designed to fit in standard wall switch boxes. Universal LED dimmer that can dim any 12VDC or 24VDC Dual Color or Variable Color Temperature LED products from 0%-100% using Pulse Width Modulation (PWM) slide control. 120W maximum load capacity. 4.5in wire leads for input and output connection. Dimming level is adjusted by built-in slider control. Available in white housing. Optional wall trim plate also available.
$22.99 ea.
Designed for use within the EZ Dimmer series, this wireless 1-channel LED dimmer controller operates within a 12-36 VDC while receiving RF signals from a compatible wireless LED dimmer wall switch. The LED receiver has a maximum load capacity of 8 amps and has spring terminal connectors for in and out power connections.
Designed for use within the EZ Dimmer series, this wireless 4-channel LED dimmer controller operates within a 12-36 VDC while receiving RF signals from a compatible wireless LED dimmer wall switch. The LED receiver has a maximum load capacity of 32 amps and has spring terminal connectors for in and out power connections.
$29.99 ea.
$13.99 ea.
$23.99 ea.
The Mean Well LED switching power supply is a safe and economical choice for powering your LED lighting. It has integrated short circuit, overload, overvoltage, and over-temperature protection. Additionally, it can withstand a 300VAC surge input for 5 seconds and has a built-in cooling fan. A universal AC input range of 100-240VAC and multiple wattage options make it a versatile and easy-to-use option for powering LED lighting systems.
$124.99 ea.
$21.99 ea.
This LED switching power supply has been designed for constant voltage operation. Reliable and widely applicable, it powers LED technology without energy waste or risk of circuit overload. Fully enclosed in a waterproof case.
$19.99 ea.
$12.99 ea.
$7.99 ea.
$114.99 ea.
Magnitude Dimmable LED Power Supplies are designed with magnetic transformer cores. The 12V driver has a metal NEMA 3R enclosure and can be used outdoors and indoors. It is equipped with auto-reset breakers— one on the input and one on the output, which protect both the load and driver. Includes 2 knock-outs to enable easy installation that complies with electrical code requirements. Efficiency of 80% and above allows the driver to operate at low temperatures. Compatible with TRIAC dimmers.
$8.99 ea.
The Mean Well LED switching power supply is a safe and economical choice for powering your LED lighting. It has integrated short circuit, overload, overvoltage, and over-temperature protection. Additionally, it has a constant current limiting circuit, full load burn-in, and fixed switching frequency. It can withstand a universal AC input range of 100-240VAC, and multiple wattage options make it a versatile and easy-to-use option for powering LED lighting systems.
$39.99 ea.
$1.99 ea.
3M Adhesion Promoter 06396 is a liquid primer specifically formulated for automotive applications that enhances adhesion of 3M Acrylic Foam Tapes for interior and exterior trim applications. The sponge applicator packet is easy to use and makes an ideal choice for LED strip light and aluminum extrusion installations.
$1.99 ea.
$0.15 ea.
