Name: BA9s LED Bulb - 5 SMD LED Tower - BA9s Bulb
Brand: Super Bright LEDs
SKU: BA9s-xHP5-CAR
Price: 3.99 USD
Availability: InStock
Rating: 4.5 (472 reviews)

Overview

Description

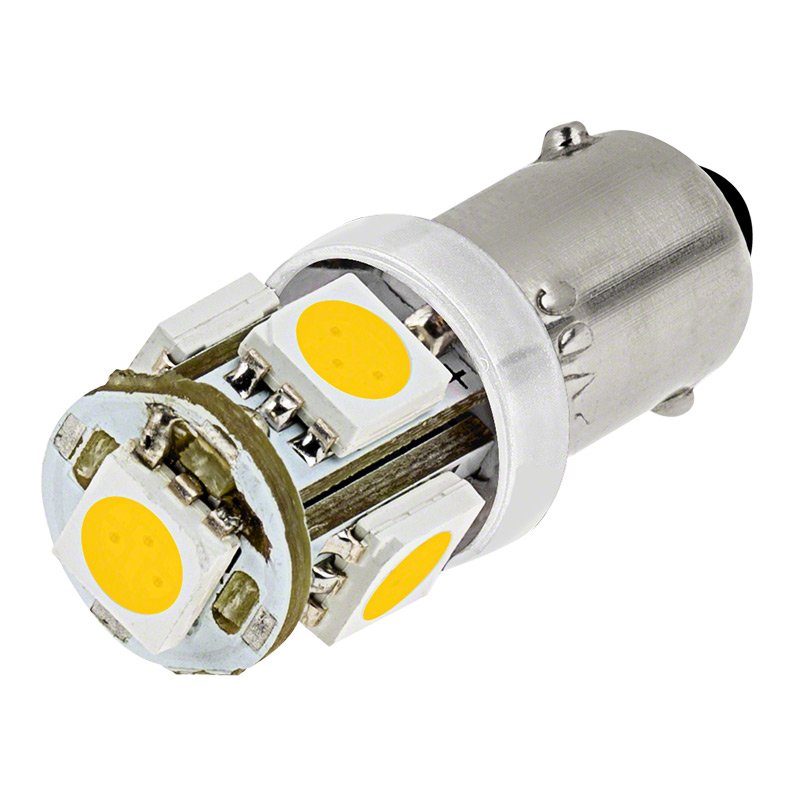

LED replacement bulbs can fit numerous vehicle applications such as dome lights, map lights and turn signal lights. This BA9s single-contact LED bulb replaces a variety of traditional bulbs including 1445 and 17053 bulbs. It has 5 LEDs (5050 SMD) that emit a 360° viewing angle for better, allover light emission with no hot spots. Tower-style design with a 9-mm miniature bayonet base for easy plug-and-play installation—just twist to lock in place. The energy-efficient bulb operates with in a wide 9-14.5V DC range and is designed to last 30,000 hours on your car, truck, SUV, or van—25 times longer than incandescents. Available in cool white, warm white, blue, green, amber and red.

Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Specifications

Base Type	BA9s (Miniature Bayonet)
Beam Angle	360°
Brand	Super Bright LEDs
CAN Bus CAN Bus LED bulbs are simple plug-and- play LED bulbs which are made specifically for CAN Bus-equipped vehicles. These bulbs work with your vehicle's advanced computer system, so when your vehicle's computer reads them, they respond back correctly. To see if your vehicle operates with a CAN Bus system, simply remove the bulb you're looking to replace, start your vehicle, and if you have a "Bulb Out" message on your dash you have a CAN Bus system.	No
Comparable Wattage	5-10 Watt Incandescent
LED Quantity	5 LEDs
LED Type	5050 SMD
Oversize	No
Polarity Sensitive Polarity Sensitive (YES) Bulbs have Plus and Minus (like batteries) and will only work when polarity is correct. If bulb does not work when installed, turn it around in the socket. Polarity Sensitive (NO) Bulbs do not have Plus and Minus and will work either way installed in the socket.	Yes
Reference Number	BA9S
Stock Numbers	1895, 1893, 57, 53, 1816, 1815, 1445, 64111, 1891, 756, 64113, 1892, 3893, 216, 293, 1445LL, 1816LL, 1891LL, 12146, 1893LL, 1895LL, 47830, 17053, 182, 1889, 47835, 3893LL, 53LL, 57X, 57LL, 53X, 1895A, 363, 6253, 3886X, 64115, 256, 257
Voltage	9-14.5 VDC

Print Specifications

Part NO	CCT Value CCT Value	Current Draw	Efficacy	LED Color	Lumen	Power Consumption
BA9S-AHP5		80 mA	90 lm/W	Amber	90 Lumen	1 Watt
BA9S-AHP5-10PK		80 mA	90 lm/W	Amber	90 Lumen	1 Watt
BA9S-AHP5-20PK		80 mA	90 lm/W	Amber	90 Lumen	1 Watt
BA9S-BHP5		100 mA	19 lm/W	Blue	22 Lumen	1.2 Watts
BA9S-BHP5-10PK		100 mA	19 lm/W	Blue	22 Lumen	1.2 Watts
BA9S-BHP5-20PK		100 mA	19 lm/W	Blue	22 Lumen	1.2 Watts
BA9S-CWHP5	6100K	100 mA	95 lm/W	Cool 6100K	90 Lumen	1.2 Watts
BA9S-CWHP5-10PK	6100K	100 mA	95 lm/W	Cool 6100K	90 Lumen	1.2 Watts
BA9S-CWHP5-20PK	6100K	100 mA	95 lm/W	Cool 6100K	90 Lumen	1.2 Watts
BA9S-GHP5		80 mA	89 lm/W	Green	85 Lumen	0.96 Watts
BA9S-GHP5-10PK		80 mA	89 lm/W	Green	85 Lumen	0.96 Watts
BA9S-GHP5-20PK		80 mA	89 lm/W	Green	85 Lumen	0.96 Watts
BA9S-RHP5		70 mA		Red	15 Lumen	0.5 Watts
BA9S-RHP5-10PK		70 mA		Red	15 Lumen	0.5 Watts
BA9S-RHP5-20PK		70 mA		Red	15 Lumen	0.5 Watts
BA9S-WWHP5	2700K	100 mA	79 lm/W	Warm 2700K	96 Lumen	1.2 Watts
BA9S-WWHP5-10PK	2700K	100 mA	79 lm/W	Warm 2700K	96 Lumen	1.2 Watts
BA9S-WWHP5-20PK	2700K	100 mA	79 lm/W	Warm 2700K	96 Lumen	1.2 Watts

Comparing Lumens Across Colors: Why Do Colored Bulbs Have Such Low Lumen Values

Lumen meters are a great way to measure white light output but can be deceptive for colored bulb intensity. Lumens measure light wavelengths in all colors of the visible spectrum. Because multiple wavelengths create white light and colored bulbs are a single-wavelength source, colored bulbs will have lower lumen readings. However, they will appear equally as bright as a white bulb.

Accessories & Power Supplies

All Accessories

Socket Adapters

Installation Supplies

Load Resistors

Accessories Links

Accessory Category

Accessory Type:

$1.99 ea.

BA9s Bayonet Base Socket - Wired - BA9s Part Number: BA9s
In stock

This replacement socket accepts single-contact BA9s bulbs. The 9-mm bayonet socket has 6" 20-gauge attached wire. Price per socket.

$3.95 ea.

LED Marker Lamp Load Resistor Kit - Sidemarker LED Light Warning Fix - 25W LED Marker Lamp Load Resistor Kit Part Number: RL-2525-K
In stock

25 Ohm, 25 Watt load resistor kit for mini wedge base bulbs or any sidemarker LED lights. Connect one across each LED marker light to resolve bulb-out warning indicator problems.

View Installation Diagram & Instructions [PDF]

Mount the resistor away from painted surfaces, plastic, or other components that may be damaged by the heat generated by the resistor.
