Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

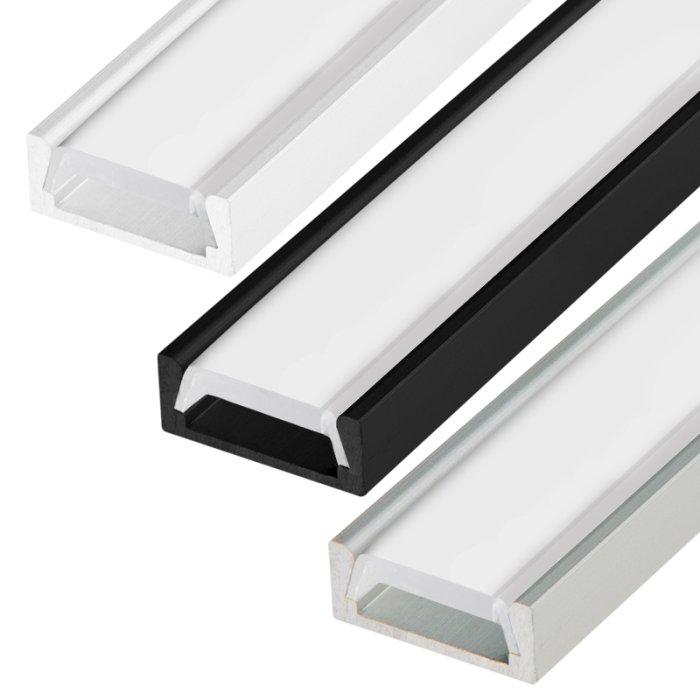

MICRO-ALU Aluminum Channel - Surface - For Strips Up To 11mm - 1m / 2m
Part Number:
B1888
Manufacturer Part Number:
Discontinued
Features
- Low-profile surface mount
- Compatible with optional lenses
- Accommodates LED strips up to 11mm wide
- Able to reach an IP67 waterproof rating
- 4-year warranty
Related Products
Overview
The KLUS® MICRO-ALU Aluminum channel offers a professional mounting solution for surface mounting LED strip lights up to 11mm wide. The low-profile aluminum extrusion is 6mm deep. When sealed with optional accessories, it can reach a waterproof rating for use in wet areas. Use a clear lens for optimal brightness or a frosted lens for smooth lighting with less visible hot spots. Available in 1m or 2m lengths, silver, black, or white anodized aluminum, and non-anodized silver.
Reference number(s): A01888A_1, A01888A_2, A01888A07_1, A01888A07_2, A01888L10OD_1, A01888L10OD_2, A01888N_1,
See the similar KLUS TAMI aluminum channel or the premade LED linear light bar fixture.
See our selection of LED strip lights.
Reference number(s): A01888A_1, A01888A_2, A01888A07_1, A01888A07_2, A01888L10OD_1, A01888L10OD_2, A01888N_1,
See the similar KLUS TAMI aluminum channel or the premade LED linear light bar fixture.
See our selection of LED strip lights.
Product Details:
- Extruded Aluminum
- Mount with 3M-FTS Double-Sided tape or brackets (see accessories)
- Able to reach a waterproof rating
- 4-year warranty
Documents
B1888 Specification Sheet
B1888 Photometric File Applications:
- Bathrooms
- Bookshelves
- Cabinets
- Commercial Kitchens
- Displays
- Gardens
- Task Lighting
- Under-Cabinets
- Windows
Specifications
Product Characteristics
The extrusion made from high quality aluminum (also available in a double-anodized version) is designed for flexible or rigid LED
strips that are 8 - 10mm wide. One of the accessories offered for the extrusion are covers that shade and protect LEDs inside the
profile. There are few types of covers: cover K (frosted or transparent), HS (frosted or transparent) or clear focusing covers, which
allow you to obtain a 60 degree light angle. Covers are made of polycarbonate. Standard polypropylene end caps,
electricity -conductive end caps, and mounting brackets (made from steel, zinc or chrome finish) can be used for the extrusion as
supplementary accessories. End caps protect the extrusion from dust and other undesirable elements, which can make LED strips
dirty and consequently deteriorate the quality of their light output. The extrusion can be mounted to surfaces with the use of double sided
adhesive tape or mounting brackets. The mounting bracket guarantees easy and secure mounting of the extrusion surface.
They can also work as connector between two extrusions.
Applications
The extrusion with the LED light source is mostly used as interior lighting, especially to light cabinets, stairs, glass cases, or as a decoration light
for a niche in drywall ceilings.
Product Dimensions
Advantages
Small dimensions allow the profile to fit in a variety of locations such as housings interiors, exhibits, shelving units, and stair cases.
They are lightweight, easily release heat, and environment friendly.
