Linkable LED Under Cabinet Light Bar - Seamless Connection - 413 lm/ft
Part Number:
LSLB-NWx
Manufacturer Part Number:
Starting at
$8.99
ea.
Starting at
Was
In Stock
Features
- Slim design illuminates hard-to-see spaces
- Linkable up to 16’ in versatile configurations
- Change direction while maintaining continuous beam
- 410 lumens per foot
- 12VDC
Frequently Bought Together
Total Price:
Loading...
Related Products
Overview

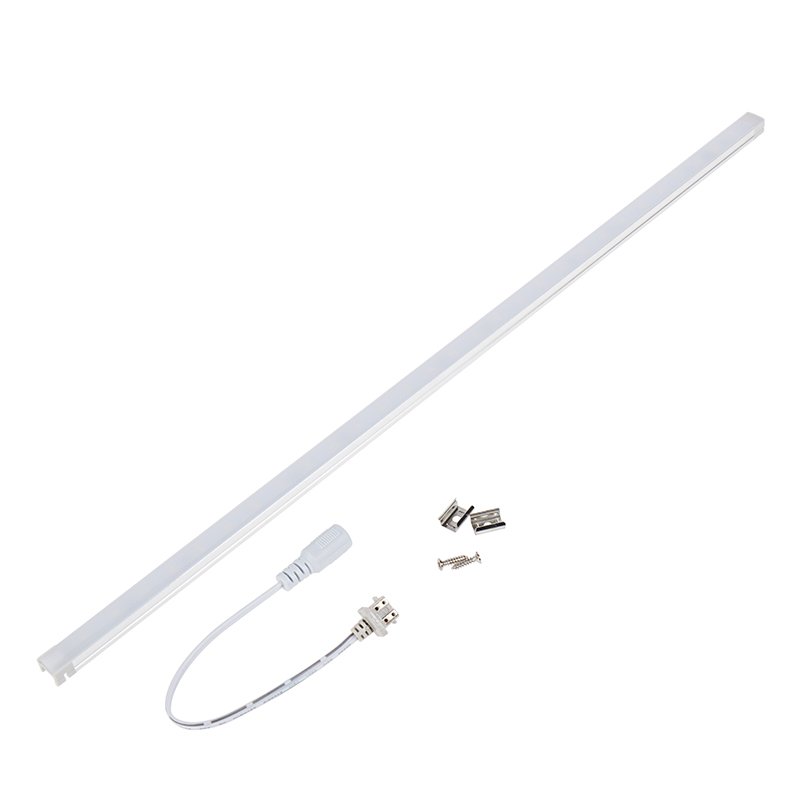

LSLB series LED Light Bars are uniquely designed for a customized shape and span of linear light to provide task or accent lighting in low-profile spaces. They can be linked up to 16’ in straight lines or around corners, with multiple lengths and connector options to choose from. Seamlessly highlight under cabinets or inside a case display with out the need for interconnect wires. LEDs are arranged directly behind a frosted polycarbonate lens to diffuse a smooth beam of light. Operating on low wattage, illumination is dimmable for further efficiency and convenience. Lightweight yet durable, the aluminum frame is integrated with back-panel magnets for quick attachment to metal applications. For other installations, mounting clips and hardware is included.
Product Details:
- Compatible with multiple connector options (sold seperately)
- Integrated back-mounted sliding magnets
- Included mounting clips
- Included 8" cord with barrel plug
- Dimmable with controller (sold seperately)
- Available in 4000K
- 12VDC
- 30000 hours L70 lifespan
- IP20 rated for dry conditions
- 3 year warranty
LSLB Specification Sheet Applications:
- Bookshelves
- Cove Lighting
- Displays
- Off Grid Lighting
- RV Lights
- Showcases
- Trade Shows
- Under-Cabinets
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
|
Color Temperature
Color Temperature
Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. |
4000K |
|---|---|
| CRI | 80+ |
|
Current Draw per Foot
Current Draw per Foot
Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).
|
324mA |
| Dimmable | Yes |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Dry Locations |
| Input Connection Type | 5.5 mm x 2.1 mm DC Barrel |
|
IP Rating
IP Rating
|
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Color | Natural 4000K |
| LEDs per Segment | 30 |
| LED Lifetime | 30000 Hours |
|
Operating Voltage
Operating Voltage
LED Strip Light Voltages – What You Need to KnowChoosing the correct voltage for your LED tape lights ensures optimal performance, safety, and ease of installation. Here’s a quick guide to help you decide:
12 Volt ACCommon in landscape lighting setups, 12 VAC strips work with standard low-voltage AC transformers and are best suited for fixed outdoor applications such as landscape, hardscape, and deck lighting projects.
12 Volt DCThese strip lights are a go-to choice for smaller projects and mobile applications like RVs, boats, and vehicles. They are easy to work with, highly flexible, and perfect for short runs up to ~16 ft.
24 Volt DCIdeal for residential and commercial projects, 24 VDC strips are becoming the new industry standard. They offer longer run lengths (up to ~32 ft) with reduced voltage drop and increased efficiency.
36 Volt DCOffering extended runs with consistent brightness and reduced power loss across longer distances, 36 VDC strips are well suited for medium to large-scale installations.
48 Volt DCThese strips deliver optimal performance and the longest runs (40+ ft) of DC strip lights. Their ultra-low current draw minimizes heat and allows for thinner, more efficient wiring.
120 Volt ACThese high-voltage strips offer a plug-and-play strip lighting solution compatible with standard household wall outlets. They operate free from external drivers, simplifying project design and installation. They offer the longest max run (50–150+ ft) without a noticeable voltage drop. They are best suited for large areas, architectural lighting, and outdoor use. |
12 VDC |
| Output Connection Type | LSLB |
| Strip Width | 12.75mm (0.5in) |
| Wattage per Foot | 4.3 W/ft |
| Part NO |
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
Efficacy | Length | Lumens Per Foot | Wattage |
|---|---|---|---|---|---|
| LSLB-NW08-12V | 240 mA | 95 lm/W | 8 in. | 413 lm/ft | 2.9 Watts |
| LSLB-NW12-12V | 360 mA | 95 lm/W | 12 in. (1 ft) | 410 lm/ft | 4.3 Watts |
| LSLB-NW20 | 540 mA | 93 lm/W | 20 in. | 402 lm/ft | 7 Watts |
