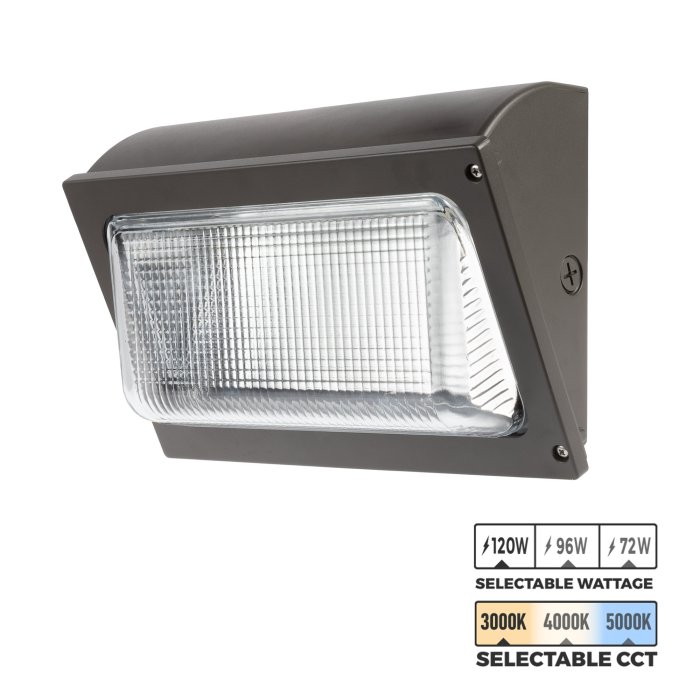

LED Wall Pack With Selectable CCT and Wattage - Glass Lens - 16,200 Lumens - 72W / 96W / 120W - 3000K / 4000K / 5000K

LED Wall Pack With Selectable CCT and Wattage - Durable Glass Lens - 16,200 Lumens - 72W / 96W / 120W - 3000K / 4000K / 5000K

brand logo
Part Number
WPGL2-SW3B120-HPC

Features

  • Field-selectable CCT: 3000K, 4000K, and 5000K
  • Field-selectable wattage: 72W, 96W, and 120W
  • Integrated bypassable photocell for dusk to dawn operation
  • Replace 400W metal halide fixtures
  • DLC 5.1 Premium
View more details
In Stock
$124.99 ea.
Request a Quote
Free Shipping
On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify

Overview

This LED wall pack features selectable CCT and wattage to customize the fixture to the application area. The integrated photocell simplifies operation and can be bypassed by unplugging it. The fixture is constructed of a bronze die-cast aluminum housing, a long-lasting glass lens, and is rated IP65 for outdoor installations. Traditional design directs light downward, decreasing wasted light. Wide beam distribution is ideal for parking lots, building exteriors, and warehouses.

View the entire WPGL2 Series for more wattages and selectable CCT wattage options.
Product Details:
  • Wide Type III-S light distribution
  • Surface mount directly to junction box or use 3/4" conduit entry points
  • Select CCT and wattage using the internal switch
  • Bronze powder-coated aluminum housing and glass lens
  • IP65 rating for outdoor conditions
  • 0-10V dimmable
  • Integrated 4 kV surge protection
  • 120-277 VAC
  • DLC 5.1 Premium
  • 5-year warranty
DLC Premium
DLC Premium
Certified by UL
Certified by UL
5 Years
5 Years
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
luxiflux tool image

Incorporate this product in your next project by using our Lighting Layout Tool.

Try it now
Use as a guide only—values are based on our own in-house testing. Contact us for additional information or to discuss your lighting needs.

Specifications

Ambient Operating Temperature -40~+45 °C (-40~+113 °F)
Beam Angle 100° x 70°
Brand Super Bright LEDs
BUG Rating B2-U3-G2
CCT 3000K, 4000K, 5000K, Selectable CCT
Certifications/Compliance Certified by UL, DLC Premium
Current Draw 260/347/433 mA @ 277 VAC, 600/800/1000 mA @ 120 VAC
Dimmable Yes
Dimming Type 0-10V
Distribution Type Type III-S
Efficacy 135 lm/W
Environmental Rating Suitable for Wet Locations, Waterproof
Equivalency 400 Watt Metal Halide
Finish Bronze
Integrated Surge Protection 4 kV
IP Rating IP65
LED Color Warm White, Natural White, Cool White, Selectable CCT
Rated Life (L70) 50000 Hours
Lens Type Glass
Lumens 9720 Lumens, 12960 Lumens, 16200 Lumens
Mount Type Junction Box, Surface Mount
Operating Voltage 120-277 VAC
Photocell Integrated Photocell (Bypassable)
Power Factor ≥0.9
Product Materials Aluminum Housing, Glass Lens
Product Weight 8.3 lb (3.8 kg)
UL File Number E366643
Warranty 5 Year
Wattage 72 Watts, 96 Watts, 120 Watts
