LED Corn Bulb - EX39 Base - Selectable CCT and Wattage - Type B Ballast Bypass - Up To 32,500 Lumens
Part Number:
CLCCT2-SW3B270-SBC-EX39
Manufacturer Part Number:
$199.99
ea.
Was
In Stock
Similar Products Available Today
Features
- Selectable Wattage: 270W, 200W, 135W
- Selectable CCT: 3000K, 4000K, 5000K
- Type B ballast bypass
- Rated for use in enclosed fixtures
Ask About This Product
Get instant AI-powered answers
Try asking:
Most Popular Compatible Products
Overview
This LED corn bulb has field-selectable CCT and wattage, producing up to 28,350 lumens of light. Use the switches on the bulb to select from 3000K, 4000K, and 5000K color temperature options and 270, 200, and 135 wattage options to suit the application best. Use the EX39 mogul screw base bulb in open or enclosed fixtures for retrofitting old metal-halide fixtures up to 400 watts. The polycarbonate lens provides durability. This LED corn bulb is a type B ballast bypass, saving energy and eliminating future costs associated with ballast maintenance. Remove the existing ballast before installation for retrofit applications. Use the included support bracket for horizontal installation applications such as wall packs or traditional cobra head area lights.
Product Details:
- Clear polycarbonate lens
- IP64 rated, suitable for damp locations
- Suitable for enclosed fixtures
- 280° x 360° beam pattern
- EX39 mogul base
- 6 kV surge protection
- 120-277 VAC
- UL Listed, UL Classified, DLC 5.1 Standard
- 5-year warranty
Documents
CLCCT2 Specification Sheet Applications:
- Cobra Heads
- High Bays
- Low Bays
- Parking Lots
- Post Tops
- Street Lights
- Wall Packs
- Warehouses
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. UL tests specific properties of product samples to ensure that they adhere to applicable UL requirements, Standards for Safety, and other national and international organization's standards.
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Specifications
| Ambient Operating Temperature | -40 to 50 °C (-40 to 122 °F) |
|---|---|

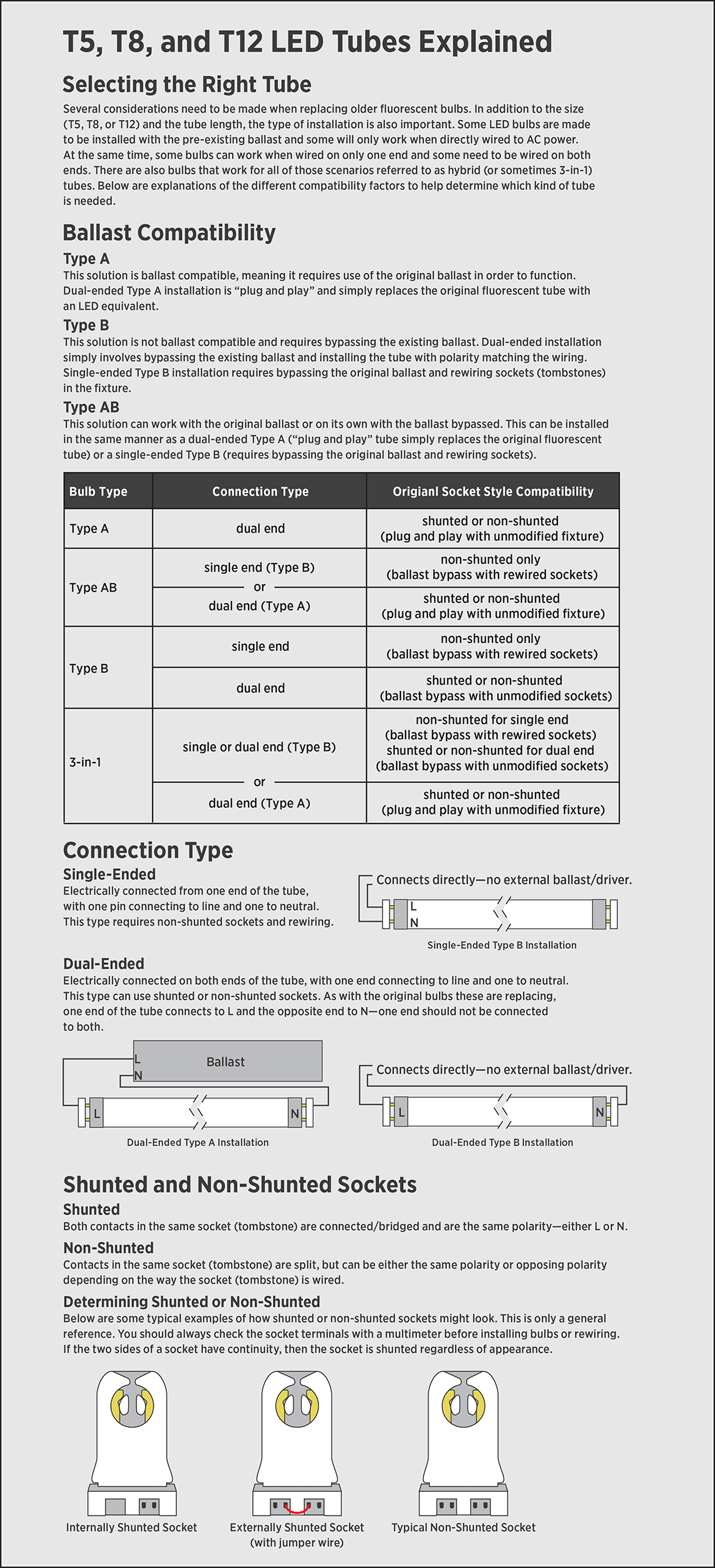

| Ballast Compatibility | Type B (Ballast Bypass) |
| Base Type | EX39 (Mogul Screw) |
|
Beam Angle
Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
280° x 360° |
| Brand | Super Bright LEDs |
| Bulb Type | Corn Bulb |
|
CRI
CRI
 |
80+ |
| Current Draw | 1.1/1.7/2.25 A @ 120 VAC, 490/720/970 mA @ 277 VAC |
| Dimmable | No |
| Efficacy | 120 lm/W |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Suitable for Damp Locations, Weatherproof |
| Equivalency | 250 Watt Metal Halide, 320 Watt Metal Halide, 400 Watt Metal Halide |
|
IP Rating
IP Rating
 |
IP64 |
| LED Lifetime | 50000 Hours |
| LED Color | Selectable CCT |
| Lumens | 16200 Lumens, 24000 Lumens, 32500 Lumens |
| Operating Voltage | 120-277 VAC |
| Product Material | Aluminum Housing, Polycarbonate Lens |
| Reference Number | EX39 (Mogul Base) |
| Standards And Certifications | DLC, UL Classified, UL Listed |
| Warranty | 5 Year |
| Wattage | Selectable Wattage, 135 Watts, 200 Watts, 270 Watts |
