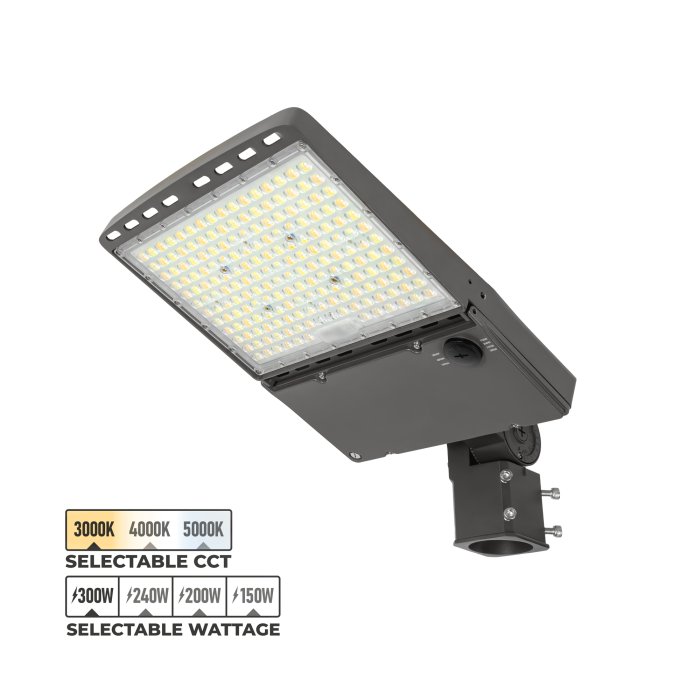

This High Voltage LED Parking Lot Light features selectable CCT (3000K, 4000K, or 5000K) and wattage (150W, 200W, 240W, or 300W).

High Voltage LED Parking Lot Light - Selectable Wattage Up To 300W - Selectable CCT - 43,500 Lumens Max - 200-480 VAC - Optional Photocell

Name: High Voltage LED Parking Lot Light - Selectable Wattage Up To 300W - Selectable CCT - 43,500 Lumens Max - 200-480 VAC - Knuckle Slipfitter Mount - With Shorting Cap
Brand: Super Bright LEDs
SKU: ALDS2-SW3B300-BDS3-SF-SC
Price: 359.99 USD
Availability: InStock

Part Number

ALDS2-SW3B300-BDS3-x

Features

Selectable Wattage: 150W, 200W, 240W, 300W
Selectable CCT: 3000K, 4000K, 5000K
Type III-S light distribution
1000W metal halide equivalent
Optional photocell for automatic dusk-to-dawn lighting
DLC 5.1 Premium

View more details

Free Shipping

On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify

Skip to the end of the images gallery

11 photos

Skip to the beginning of the images gallery

Overview

Description

This High Voltage LED Parking Lot Light features field-selectable wattage and CCT for customized lighting. The parking lot light delivers up to 43,500 lumens in a Type III-S light distribution pattern. At 145 lumens per watt efficacy, this area shoebox light fixture reduces energy and maintenance costs over its 1000W metal halide equivalent. To access the wattage and CCT selection switches, remove the waterproof cap on the face of the light. Its IP65 waterproof housing is constructed of durable die-cast aluminum with a bronze finish. The shatterproof polycarbonate lens is UV-resistant. For automatic operation, select either the 277V or 480V photocell. For manual operation, select the shorting cap. Multiple mounting options are available.

Product Details:

Bronze die-cast aluminum housing, polycarbonate lens
IP65 waterproof
200-480 VAC
DLC 5.1 Premium
UL Listed
5-year warranty

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More

This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

Try it now

Use as a guide only—values are based on our own in-house testing. Contact us for additional information or to discuss your lighting needs.

Specifications

Ambient Operating Temperature	-40~+45 °C (-40~+113 °F)
Brand	Super Bright LEDs
CCT	3000K, 4000K, 5000K, Selectable CCT
Certifications/Compliance Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here .	DLC Premium, UL Listed
Current Draw Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A. Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations.	800 mA / 1.0 / 1.2 / 1.6 A @ 208 VAC, 345 / 460 / 550 / 690 mA @ 480 VAC
Dimmable	Yes
Dimming Type 0-10V Dimming: This type of dimming control is the most popular and newest style for compatible dimmable power supplies. It works by varying the voltage from 0 to 10 VDC. A 10-volt signal on the dimming wire will allow maximum current flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply, dimming the LEDs to approximately 6% of full intensity. 1-10V Dimming: This type of dimming control is an older style that is being replaced with 0-10V dimming control. It works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow maximum current flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. TRIAC Dimming: TRIAC dimmers are typical household dimmers sold in hardware stores by brands like Lutron and Leviton. They rely on a semiconductor device called a TRIAC (Triode for Alternating Current). Adjusting the dimmer switch alters the timing at which the TRIAC conducts electricity in each AC cycle, modulating the energy delivered to the light bulb and resulting in adjustable brightness levels. Pulse-Width Modulation Dimming: This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, the current will increase, and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease, and the LEDs will be dimmer. Resistive Dimming: Resistive dimming can be fixed or variable. If a fixed dimming level is required, a simple resistor is needed to dim the LEDs to a particular level. A potentiometer can serve this purpose if a varying dimmable level is desired. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on the wiper position.	0-10V
Distribution Type	Type III-S
Efficacy	145 lm/W
Environmental Rating	Suitable for Wet Locations, Waterproof
Equivalency	1000 Watt Metal-Halide
Finish	Bronze
Input Connection Type	Pigtail
Integrated Surge Protection	10 kV
IP Rating	IP65
LED Color	Warm White, Natural White, Cool White, Selectable CCT
Rated Life (L70)	50000 Hours
Lens Type	Polycarbonate
Lumens	21750 Lumens, 29000 Lumens, 34800 Lumens, 43500 Lumens
Operating Voltage	200-480 VAC
Product Materials	Aluminum Housing, Polycarbonate Lens
Warranty	5 Year
Wattage	150 Watts, 200 Watts, 240 Watts, 300 Watts
Wire Gauge	18 AWG (L/N/G), 22 AWG (dimming)

Print Specifications

Part NO	Mount Type	Photocell Photocell What is a Photocell and How Does It Work? When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically. Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed? Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type. Shorting Cap Photocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized. DIP Switch or Slide Switch While DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts. Disconnect the Wiring Some photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch.	Product Weight
ALDS2-SW3B300-BDS3-PM-JL-480	Pole Mount	480 VAC Photocell	16.9 lb (7.7 kg)
ALDS2-SW3B300-BDS3-PM-JL	Pole Mount	277 VAC Photocell	16.9 lb (7.7 kg)
ALDS2-SW3B300-BDS3-PM-SC	Pole Mount	Includes Shorting Cap	16.9 lb (7.7 kg)
ALDS2-SW3B300-BDS3-SF-JL	Knuckle Slipfitter Mount	277 VAC Photocell	17.1 lb (7.8 kg)
ALDS2-SW3B300-BDS3-SF-JL-480	Knuckle Slipfitter Mount	480 VAC Photocell	17.1 lb (7.8 kg)
ALDS2-SW3B300-BDS3-SF-SC	Knuckle Slipfitter Mount	Includes Shorting Cap	17.1 lb (7.8 kg)
ALDS2-SW3B300-BDS3-TR-JL	Trunnion Mount	277 VAC Photocell	16.4 lb (7.4 kg)
ALDS2-SW3B300-BDS3-TR-JL-480	Trunnion Mount	480 VAC Photocell	16.4 lb (7.4 kg)
ALDS2-SW3B300-BDS3-TR-SC	Trunnion Mount	Includes Shorting Cap	16.4 lb (7.4 kg)
ALDS2-SW3B300-BDS3-YK-JL	Yoke Bracket	277 VAC Photocell	18.2 lb (8.3 kg)
ALDS2-SW3B300-BDS3-YK-JL-480	Yoke Bracket	480 VAC Photocell	18.2 lb (8.3 kg)
ALDS2-SW3B300-BDS3-YK-SC	Yoke Bracket	Includes Shorting Cap	18.2 lb (8.3 kg)
