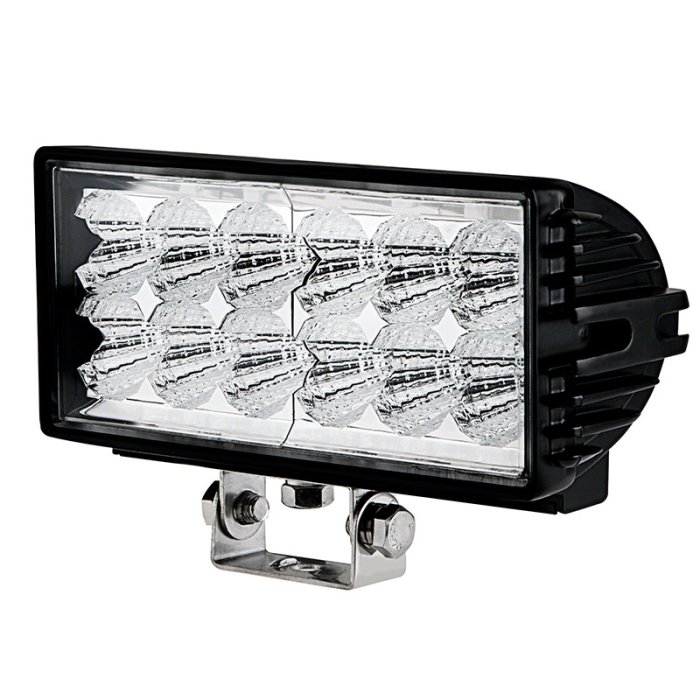

8" Off-Road LED Light Bar - Double Row - 36W - 2,700 Lumens
Part Number:
ORBX8-36WD-SP
Manufacturer Part Number:
![8" Heavy Duty Off Road LED Light Bar - 36W](https://www.superbrightleds.com/media/catalog/product/cache/658b5bae439743a0c5caf366a5f0df99/8/-/8-inch-heavy-duty-off-road-led-light-bar-36w-xtra-series-store.jpg "8" Heavy Duty Off Road LED Light Bar - 36W")
$43.99
ea.
Was
In Stock
Features
- Xtra Series light bars offer performance and rugged durability at a great value
- 35° beam pattern for long-range illumination with optimal coverage
- Aluminum housing and polycarbonate lens protect internal components
- Waterproof and vibration resistant
- 12-24 VDC
- Lifetime Warranty
Frequently Bought Together
Total Price:
Loading...
Related Products
Overview
The Xtra series 8-inch off-road LED light bar has a dual-row design with 12 LEDs that emit 2,700 lumens in a 35-degree beam pattern. The 35-degree beam angle offers long-distance illumination with wide area coverage. A corrosion-resistant aluminum housing and polycarbonate lens protect the LEDs and other internal components. Integral heat sinks allow for efficient cooling extending LED lifespan. Includes mounting hardware and an adjustable stainless steel mounting bracket.
Product Details:
- Includes pigtail connector and stainless steel mounting bracket
- Operating temperature: -40 to +122°F
- Rated IP67 for wet conditions
- 12-24 VDC
- Lifetime Warranty
Info Center
News, Tips, Tutorials
Beam Patterns for Off-Road Lights
In order to choose a light with the proper beam pattern for your...
How Do LED Infrared Lights Work?
Infrared (IR) LED light emits light not visible to the naked human eye...
How to Install a Light Bar
If you’re dying to install your new LED light bar but aren’t sure how, we can walk you through the process...
Installing a Combination Beam LED Light Bar
A step by step guide for easy installation of the Combination Beam LED Light Bar.
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -40 to 50 °C (-40 to 122 °F) |
|---|---|
|
Beam Angle
Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
35° |
|
Beam Pattern
Beam Pattern
Spot Lights
Spot lights give off a narrow and concentrated beam of light that allows for greater visibility at further distances. With light output stretching beyond that of standard headlights. Spot lights are best used to navigate dark back roads for everything from recreational vehicles to work trucks and search and rescue vehicles. Flood Lights Flood lights are best at illuminating a wider area at a shorter distance than typical headlights. These are great for use on vehicles performing tasks at night such as roadwork or harvesting, as well as use on curvy roads and side roads. Combo Beams
Combo vehicle lights are a combination of a spot light and a flood light that are always on simultaneously. This allows for the light to cover both short and long distances at the same time for a variety of tasks. Selectable Multibeams
Selectable multibeams contain both a spot light and a flood light. With this, you gain the ability to have either the spot light or the flood light, or both on at the same time. Selectable multi-beams are extremely versatile in that you get three beam patterns in a single light. However it does require additional wiring to operate both beams independently through either multiple rocker switches, or a momentary switch. Combo + Side Shooters
Side shooters illuminate a full 180 degrees or more through the use of a combo beam vehicle light. Side shooters contain an extra row of vertically or horizontally stacked and angled LED lights. This row is what gives the side shooter the ability to expand beyond a normal flood light's field of view. Side shooters are best used while stationary or at very low speeds where the field of view is critical. |
Spot |
| Brand | Super Bright LEDs |
| Color Temperature | 6000K |
|
Current Draw
Current Draw
The current draw of your lights is calculated using the amount of power your light needs (wattage) and system voltage using the following formula: Watts/Volts = amps or W/V = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED bulbs with the correct amperage ensures proper operation and prevents damage to your electrical system or the bulbs. See your vehicle owner's manual for amperage, wattage, and voltage information, or match the information on your existing bulbs. |
1.6 A |
| Finish | Black |
| Input Connection Type | Pigtail |
| Input Voltage | 12-24 VDC |
|
IP Rating
IP Rating
|
IP67 |
| LED Color | Cool 6000K |
| LED Quantity | 12 |
| Length | 8 in. |
| Lumens | 2700 Lumens |
| Product Materials | Aluminum |
| Rows Of LEDs | Dual |
| Series | Xtra Series |
| Warranty | Lifetime |
| Wattage | 36 Watts |
| Wire Length | 16 in. |
