Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

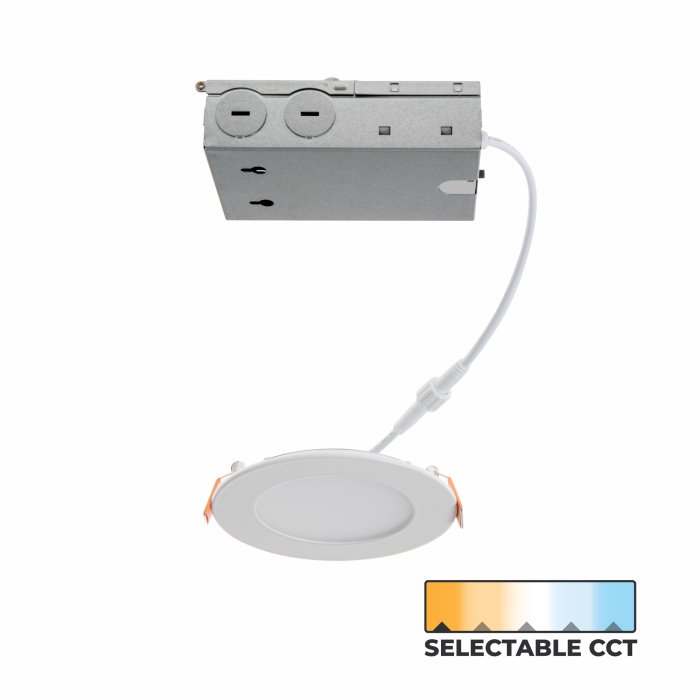

4" 9W Canless LED Recessed Downlight - Selectable CCT - Up to 648 Lumens
Part Number:
KOK-4EJCT09SR05
Manufacturer Part Number:
Discontinued
Features
- Available in 4", 6", and 8" versions
- Field selectable CCT: 2700K, 3000K, 3500K, 4000K, or 5000K
- Suitable for wet locations
- 50W halogen equivalent
- IC-rated for direct insulation contact
Related Products
Overview
The 4-inch 9-watt canless LED recessed downlight is a complete LED lighting solution with selectable CCT. The light is designed for new construction, remodeling, and retrofit installation without a can light housing or junction box. A slim profile and independent junction box with a dimmable driver allow installation in any ceiling with limited vertical clearance, such as a cathedral or vaulted ceiling. Select the color temperature with a simple switch on the driver for various applications with up to 648 lumens. Warm white light creates a relaxed atmosphere for living rooms, dens, or entertainment spaces. Cool white light helps maintain a more alert environment ideal for offices, schools, or kitchens.
Product Details:
- Aluminum housing, polycarbonate lens
- IP44, suitable for wet locations
- 120-degree beam angle
- TRIAC dimmable
- Recessed mount with spring clips
- 120 VAC
- IC-rated for direct insulation contact
- ETL Listed and CEC Title 24 JA8 Compliant
- 5-year warranty
KOK-xEJCTxSR05 User Manual Applications:
- Basements
- Bathrooms
- Closets
- Hallways
- Kitchens
- Living Rooms
- Offices
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
This product meets California Energy Commission (CEC) Title 24 JA8 requirements and is registered in their Modernized Appliance Efficiency Database System (MAEDbS).
Title 24 encompasses regulations for energy conservation, green design, construction, maintenance, fire and life safety, and accessibility in both residential and non-residential buildings across California, covering structural, mechanical, electrical, and plumbing systems. Implemented on January 1, 2017, these Building Energy Efficiency Standards include the Joint Appendix Section 8 (JA8) requirements for residential buildings, which are akin to Title 20 requirements, featuring L/W prerequisites. Compliance with Title 24 entails:
- CRI greater than 90
- R9 greater than 50 (R9 color rendering value indicates how well your lighting will highlight red colors)
- CCT under 4000K
- 6,000-hour lumen maintenance greater than or equal to 86.7%
- Rated life greater than or equal to 15,000 hours
- 10% dimming
- Flicker less than 30% for 200 Hz or below at 100% and 20% levels
- Noise less than 24 dB at 100% and 20%
- Label (either JA8-2016 or JA8-2016-E) on bulb
- Immediate start time (0.5 seconds or less)
IC Rated
IC (Insulation Contact) Rated An IC-rated fixture is designed to operate in direct contact with insulation material. Its rating indicates that the fixture has added thermal protection, minimizing fire hazards.
Specifications
| Ambient Operating Temperature | -20 to 40 °C (-4 to 104 °F) |
|---|---|
| Beam Angle | 120° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
CEC Title 24 JA8 Compliant, ETL Listed |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
75 mA |
| Dimmable | Yes |
| Efficacy | 72 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations |
| Equivalency | 50 Watt Halogen |
| Finish | White |
|
IP Rating
IP Rating
|
IP44 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lumens | 648 Lumens |
| Operating Voltage | 120 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Warranty | 5 Year |
| Wattage | 9 Watts |
