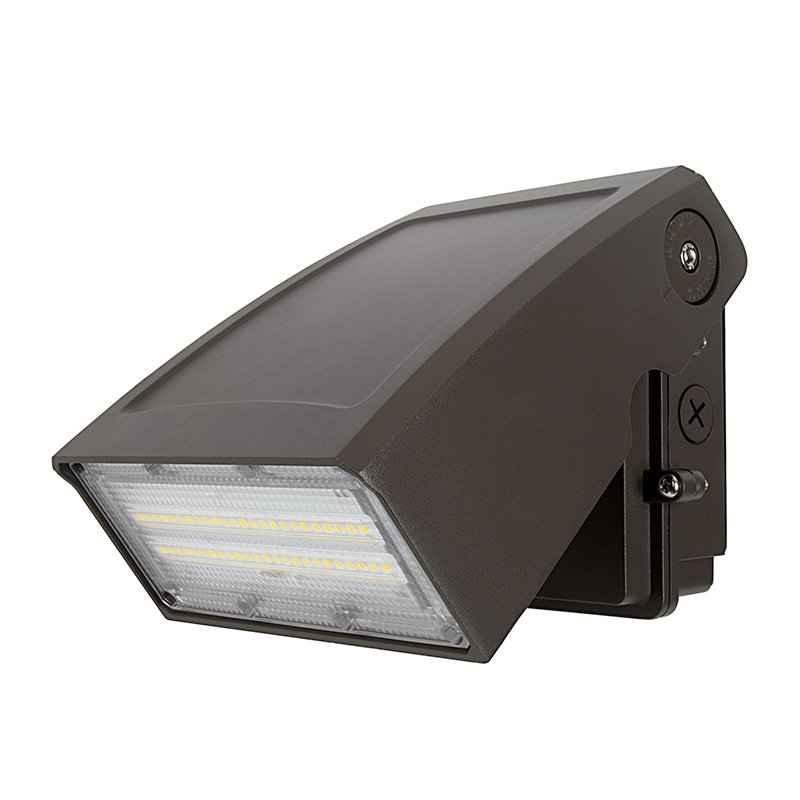

Name: 35W Adjustable Full Cutoff LED Wall Pack - 4550 Lumens - 175W MH Equivalent - 5000K
Brand: Super Bright LEDs
SKU: WPA-xK35-W
Price: 67.99 USD
Availability: InStock
Rating: 5 (4 reviews)

Overview

Description

Replacing traditional fixtures with better light output and architectural design, WPA series 35W Wall Pack is a compact lighting solution with high efficiency. with out wasteful uplight, the full cutoff form and adjustable angle directs beams precisely. Aim this efficient LED after installation -- closer for accenting building exteriors, outward for door visibility, or directly forward to illuminate entrance signs. Durable powder coated aluminum housing resists corrosion, while conduit entry and hinged door allows for easy mounting.

For campuses, schools, or business parks that have a variety of lighting needs, see the rest of the WPA series to tailor illumination to each unique space while maintaining a consistent look throughout. The complete line has positioning versatility and a lumen range of 1,500 to 15,000 to fit both small stairways and large lots, to accentuate features or improve safety.

Product Details:

Conduit entry points allow direct wall or junction box mounting
Compatible with photocell for dusk to dawn operation - sold separately
Available in 3000K or 5000K
50000 hours L70 lifespan
IP65 rated for wet conditions
UL Listed
5 year warranty

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Landscape Lighting
Signs
Parking Lots
Campuses
Architectural Lighting
Security Lighting
Parking Garages
Gas Stations
Commercial Lighting

Specifications

Ambient Operating Temperature	-40~+50 °C (-40~+122 °F)
Beam Angle	100° x 75°
Brand	Super Bright LEDs
CCT Value	5000K
Certifications/Compliance Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	UL Listed
CRI	70+
Current Draw	290 mA
Dimmable	Yes
Dimming Type TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton. Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application. Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned. 1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. 0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.	0-10V
Distribution Type	NEMA 6x5
Efficacy	130 lm/W
Environmental Rating	Suitable for Wet Locations, Waterproof
Equivalency	175 Watt Metal-Halide
Finish	Bronze
Input Connection Type	Pigtail
IP Rating	IP65
LED Color	Cool White
Lens Type	Polycarbonate
Intensity	4550 Lumens
Operating Voltage	120-277 VAC
Photocell What is a Photocell and How Does It Work? When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically. Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed? Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type. Shorting Cap Photocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized. DIP Switch or Slide Switch While DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts. Disconnect the Wiring Some photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch.	No Photocell
Power Consumption	35 Watts
Product Materials	Aluminum Housing, Polycarbonate Lens
Product Weight	3lb 3oz (1.45kg)
Rated Life (L70)	50000 Hours
UL File Number	E366643
Warranty	5 Year

Print Specifications

Accessories & Power Supplies

All Accessories

Photocells

Installation Supplies

Wiring

Accessories Links

Accessory Category

Accessory Type:

$13.99 ea.

120-277 VAC Photocell - JL-423C Part Number: JL-423C
In stock

Increase energy savings with this dusk-to-dawn photocell sensor. It automatically powers wall packs, landscape systems, or other lights on at dusk and off at dawn. The weatherproof photocell is rated for 1,000 watts. Install the sensor in light fixture knockouts, and secure it in place with the included nut.
$9.99 ea.

208-277 VAC Photocell - 208-277 VAC Part Number: tork-3002
In stock

Photocell for landscape systems, path lighting, wall packs, or 208-277V AC dusk to dawn applications. Weather-resistant housing with included gasket and nut makes this flush mounting photocontrol unit durable and reliable. A switch delay of up to 2 minutes prevents false switching due to momentary light flashes. Also available in the 120V AC photocontrol version.

$0.09 ea.

22-16 AWG Grey 3M Twist-On Wire Connector Part Number: WN-2216
In stock

Use these 3M 22-16 AWG grey wire connector for closed-end connections and secure splices. The UL-Listed twist-on wire connectors tighten with out ratcheting and feature a deep skirt to prevent bare wire from being exposed.
$8.99 ea.

LED Surge Protector - 5kA Max Capacity - 120-277 VAC - QR-SPD07-10 Part Number: QR-SPD07-10
In stock

In the event of a voltage surge or electrical failure, LED Surge Protector is an added defense for indoor or outdoor LED fixtures. Take advantage of the already safe, long lifespan of LEDs with this additional accessory. It provides a nominal discharge current of 5kA, and a maximum discharge current of 10kA for 120-277V drivers.

$0.39 per Foot

22 Gauge Wire - Two Conductor Power Wire - 22 AWG Part Number: WP22-2
In stock

Power Wire for low voltage installations. Parallel bonded two conductor 22 gauge stranded wire. Price per foot.
$0.59 per Foot

SJT Cable - Black Jacketed 18 Gauge Three Conductor Power Wire - 18 AWG Power Wire Part Number: WP18-35J
In stock

Parallel bonded three conductor 18 gauge 3x18 stranded power wire for installations. This standard SJT cable is ideal for high voltage applications. Price per foot.
