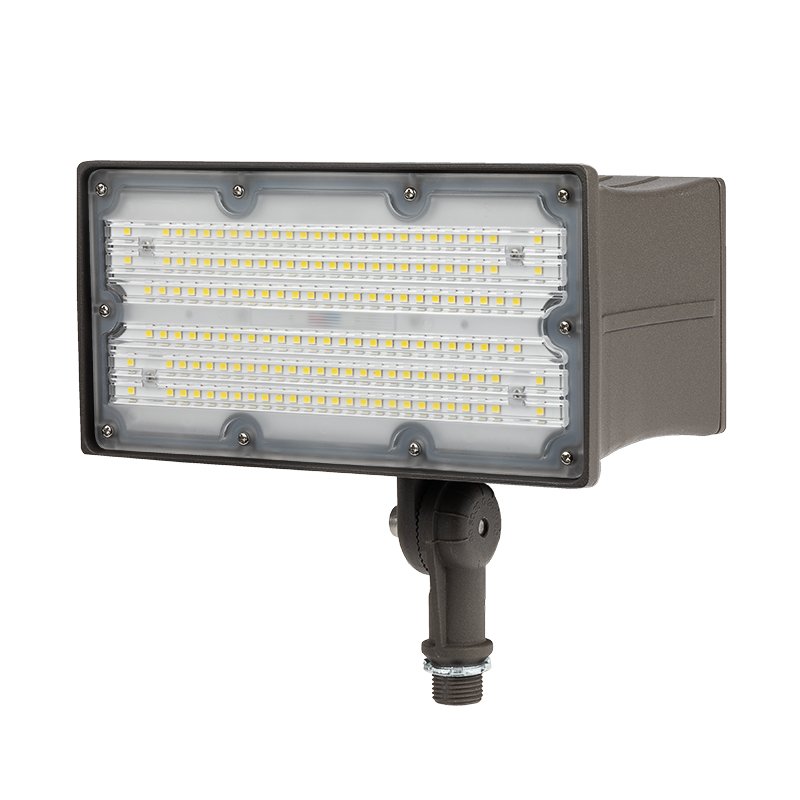

Name: 70W LED Flood Light With Knuckle Mount - 10,500 Lumens - Bypassable Photocell - 250W MH Equivalent - 5000K
Brand: Super Bright LEDs
SKU: WSD-FL07W27-50K-D-K-P-G2
Price: 119.99 USD
Availability: InStock

Overview

This 70W LED Flood Light with knuckle mount features a wide NEMA 7x7 light distribution pattern for wide, flood applications. This flood light produces 10,500 lumens and can replace 250W metal halide fixtures, lowering maintenance and energy costs over time. The heavy-duty aluminum housing and polycarbonate lens are corrosion-resistant and can withstand extreme weather conditions. Bypass the photocell by unplugging the sensor on the inside of the fixture. Mount to a 1/2" conduit knockout using the included adjustable knuckle mount. Ideal for signage, parking areas, and security lighting.

Product Details:

Bronze aluminum housing and a polycarbonate lens
IP65 waterproof rating
1-10V Dimming
Included knuckle mount adjusts 180° total- 90° forward and 90° backward
120-277 VAC
Certified by UL
DLC 5.1 Premium
5-year warranty

This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.

This product has been certified by Underwriter Laboratories to their engineering and safety standards.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Pathways
Security Lights
Parking Lots
Building Facades
Area Lighting

Specifications

Ambient Operating Temperature	-30~+45 °C (-22~+113 °F)
Beam Angle	100°
CCT Value	5000K
Certifications/Compliance Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	Certified by UL, DLC Premium
Current Draw	250 mA @ 277 VAC, 580 mA @ 120 VAC
Dimmable	Yes
Dimming Type TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton. Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application. Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned. 1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. 0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.	1-10V
Distribution Type	NEMA 7x7
DLC Product ID	PA7VDAKA
Efficacy	150 lm/W
Environmental Rating	Suitable for Wet Locations, Waterproof
Equivalency	250 Watt Metal-Halide
Finish	Bronze
Input Connection Type	Pigtail
IP Rating	IP65
LED Color	Cool White
Intensity	10500 Lumen
Mount Type	Knuckle Mount
Operating Voltage	120-277 VAC
Photocell	Integrated Photocell (bypassable internally)
Power Consumption	70 Watts
Power Factor	≥0.9
Product Materials	Aluminum Housing, Polycarbonate Lens
Product Weight	4lb 4oz (1.93kg)
Rated Life (L70)	75000 Hours
UL File Number	E354939
Warranty	5 Year
Wire Gauge	18 AWG

Print Specifications

Accessories & Power Supplies

All Accessories

Connectors

Wiring

Accessories Links

Accessory Category

Accessory Type:

$0.45 ea.

22-12 AWG Waterproof Silicone Filled Twist-On Wire Connector Part Number: WWN-2212
In stock

UL listed waterproof wire connectors suitable for all wire splices, especially those exposed to condensation, water, vapors or dust. 22-12 AWG Blue wire connector pre-filled with silicone to seal and protect connection from moisture. Not suitable for submersed connections. Price for each.
$0.59 per Foot

SJT Cable - Black Jacketed 18 Gauge Three Conductor Power Wire - 18 AWG Power Wire Part Number: WP18-35J
In stock

Parallel bonded three conductor 18 gauge 3x18 stranded power wire for installations. This standard SJT cable is ideal for high voltage applications. Price per foot.
