RV Interior LED Light - Optional Touch Dimmer Switch - Surface Mount - Frosted Lens - 4000K - 12-24 VDC

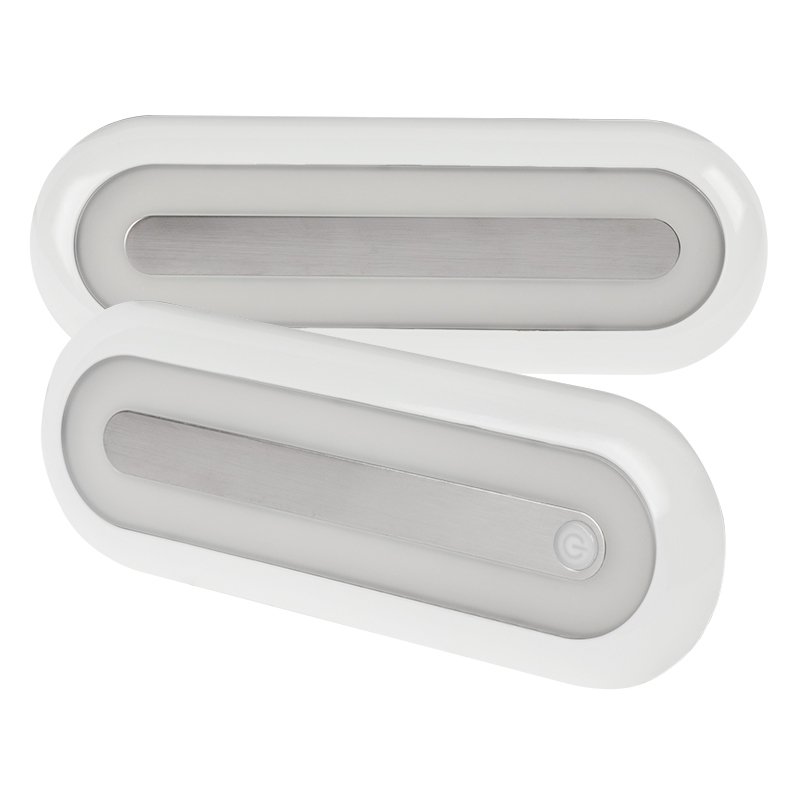

LED RV Interior Dome Light - Optional Touch Switch - 9" Oval - Frosted Lens - 4000K - 12V / 24V

Name: LED RV Interior Dome Light with Touch Switch - 9" Oval - Frosted Lens - 4000K - 12V / 24V
Brand: Super Bright LEDs
SKU: VIL-40K8-9OT
Price: 29.99 USD
Availability: InStock
Rating: 3 (1 reviews)

Part Number

VIL-40K8-9Ox

Features

Quick touch switch for ON/OFF, hold switch for dimming option
Blue night light mode option once OFF
Option with out switch for existing RV switched circuit
IP67 rated construction and UV resistant lens for outdoor application
Also available in a circular or oval form factor option
750 lumens at 4000K

View more details

Free Shipping: On orders $300 and up. Flat rate shipping for other qualifying orders. Learn More⇒

Skip to the end of the images gallery

10 photos

Skip to the beginning of the images gallery

Overview

Description

VIL series RV Interior Light is a long-lasting and brighter alternative to standard incandescent and halogen dome lights. The plastic trim is removable for mounting to hard surfaces and requires no bulbs to replace. Touch switch option turns light ON/OFF, gradually dims to 10% when held down, and includes a blue night light activated when the light is off for easy access. Option with out the switch allows for integration into a larger RV lighting scheme. Certified IP67 weatherproof with UV resistant lenses, the construction is also suitable for outdoor application. Perfect for overhead, under-cabinet, and accent lighting for many different RV applications.

Product Details:

White finished aluminum housing, frosted polycarbonate lens
Dimensions: 8.66"x2.98"x0.56"
Pigtail electrical connection
20 AWG wire gauge
Plastic trim snaps off for mounting

In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.

Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Doorways
Map Lights
Reading Lights
RV Cabins
RV Interiors
Trailer Lights
RV Storage Compartments
Overhead Lights

Specifications

Ambient Operating Temperature	-40~+65 °C (-40~+149 °F)
Beam Angle Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.	115°
Brand	Super Bright LEDs
Certifications/Compliance	CE
Current Draw Current Draw is used to size fuses and wire for a circuit. Current draw is the amount of energy consumed by an LED or LEDs in an electrical circuit at a specific voltage, measured in amps (A) or milliamps (mA).	310 mA @ 24 VDC, 630 mA @ 12 VDC

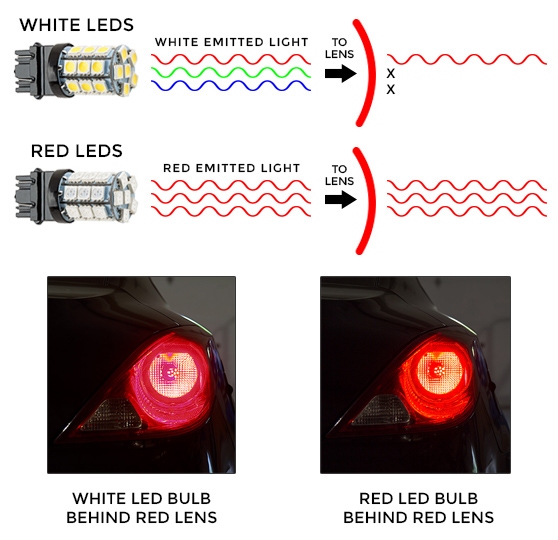

Intensity For best results, the LED color should be the same as the lens color. If the bulb is behind a clear lens, use the appropriate color for turn and brake light functions. When installed in a housing that has a matching colored lens, red and amber bulbs will appear brighter than white LED bulbs - even though they have lower lumen outputs. As an example: a red lens will filter out all but the red portion of light from a bulb, so if the light being emitted from the bulb is all red, none or very little light will be blocked by the lens. The light from a white LED bulb contains very little light in the red portion of the visible spectrum, so most of the light that contributes to its higher lumen value would be filtered out by a red lens. This makes the white bulb appear dimmer than the red bulb.	750 Lumen
IP Rating	IP67
LED Color	Natural White
LED Lifetime	50000 Hours
Product Materials	Aluminum Housing, Polycarbonate Lens
Voltage	12-24 VDC
