5 Pin Relay Socket - Pigtail Connection - 5 Pin Relay Socket

Name: 5 Pin Relay Socket - Pigtail Connection - 5 Pin Relay Socket
Brand: Super Bright LEDs
SKU: R5-SW
Price: 1.99 USD
Availability: InStock
Rating: 4.6 (15 reviews)

Part Number

R5-SW

Rating:
92% of 100

15 Reviews Add Your Review

Features

Pre-wired relay socket
16 AWG load wires
2 year warranty

View more details

Free Shipping: On orders $300 and up. Flat rate shipping for other qualifying orders. Learn More⇒

Skip to the end of the images gallery

3 photos

Skip to the beginning of the images gallery

Overview

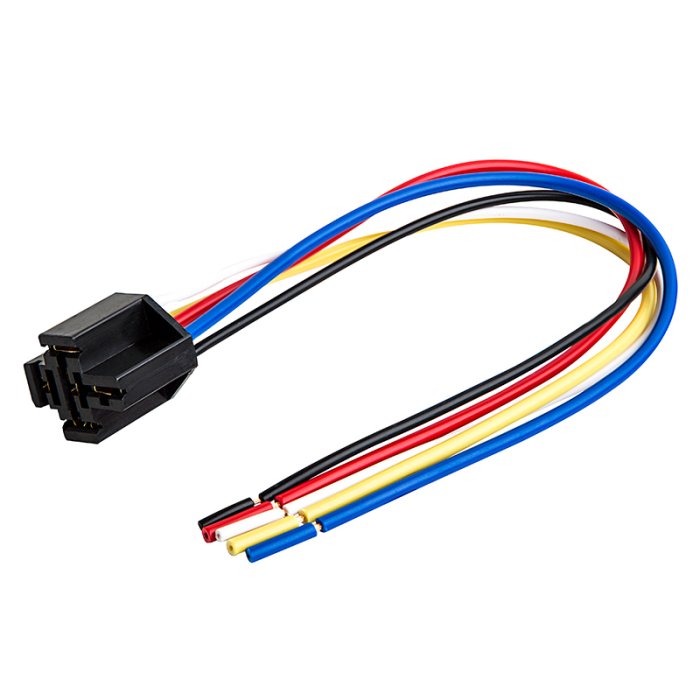

Pre-wired relay socket for use with 12 VDC Bosch type five terminal relays. 3 x 12in 18 AWG power wires and 2 x 12in 16 AWG load wires. Suitable for use with high power LED Off Road Bars, AUX lights, Work Lights and other custom applications.

Product Details:

Includes pigtail connector
12 inch wire length

Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Dune Buggies
Emergency Vehicles
Rock Crawlers
Vehicle Accent
Marine Lighting
Off Road Vehicles
Utility Vehicles
Tow Truck Lights

Specifications

Connector Type	5-Pin Sockets
Input Connection Type	Pigtail
Length	12in (1ft)
Wire Length	12in(30.5cm)

Print Specifications
