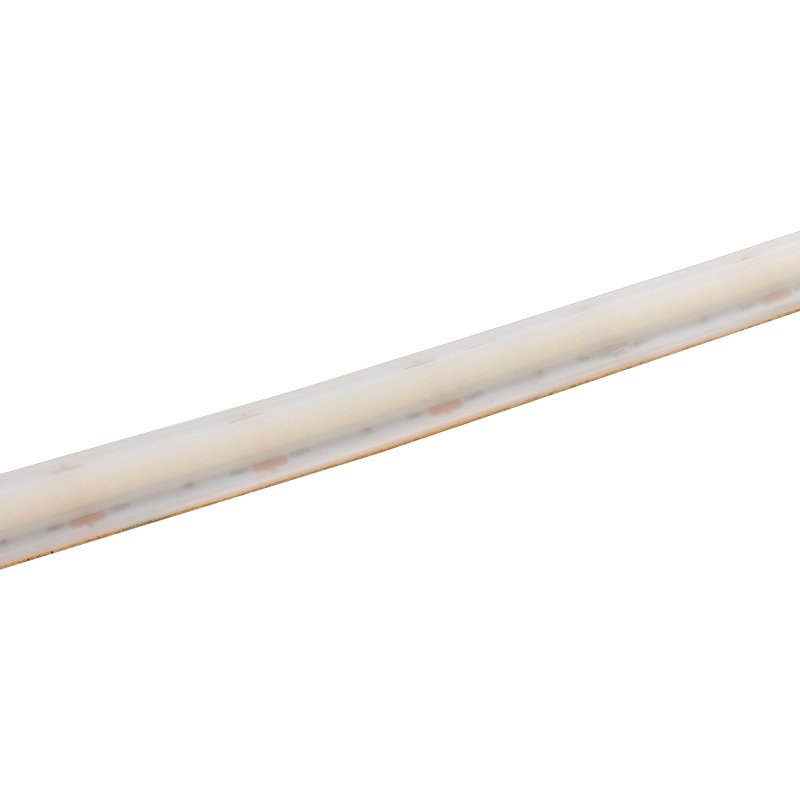

Name: 5m White LED Strip Light - Lux Series LED Tape Light - High Density - High CRI - 24V - IP67
Brand: Super Bright LEDs
SKU: LX-IP67-90CRI-5m
Price: 134.99 USD
Availability: InStock

Overview

Description

The high density LED strip light provides a continuous line of light and high lumen output. Each 5m strip has 92 LEDs per foot, delivering up to 836 lumens per foot with 90+ CRI for powerful, vibrant light. To diffuse the LED hotspots the strips are constructed with an IP67 rated silicone coating that ensures the strip is suitable for wet locations while also remaining flexible for applications. For optimal and long-lasting strip operation, a heatsink is required. Pair with one of our strip channels (see accessories).

Product Details:

92 LEDs/ft produces a continuous line of light
90+ CRI rating ensures vibrant, natural-looking color tones
Strip width measures 12mm
IP67 waterproof rated
PWM Dimmable
24 VDC
5-year warranty

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Outdoor Accents
Patio Lighting
Under-Cabinet Lighting
Outdoor Kitchens
Showcases
Architectural Lighting
Sign Lighting
LED Stair Lights
Hallways

LED Strip Lights FAQs

What is the difference between 12V and 24V strip lights?

Most LED strips are extremely similar despite differences in voltage. They look the same and are capable of similar light output. Despite this, there are some key differences between voltages which affect use for various applications. 12-volt DC strips can be connected directly to a vehicle's 12-volt DC electrical system. Higher voltage strips (e.g. 24 VDC, 36 VDC, or 48 VDC) on the other hand allow for longer runs and higher densities of LEDs over their 12-volt counterparts. 120 VAC strips offer incredibly long max runs and the ability to power from a standard wall outlet. For the maximum run of a strip see max run in the specification table. Read More »

How long of a run can I make my strip?

The max run of an LED strip is dependent on two primary things—voltage and density.

Higher voltage strips will generally give you a longer run than comparable lower voltage strips (e.g. 24 VDC would have a longer max run than 12 VDC with the same type of strip and density). Similarly, lower density strips have the potential for longer runs than high density strips.

So essentially, max run can be lengthened by choosing a higher voltage and/or lower density version of a strip, but a higher voltage could also provide a similar max run at an increased density where brightness or 'line of light' are more of a concern. If an install needs to extend beyond a strips max run, additional power feeds can also be run back to the power supply from other points in the run.

Please refer to the max run spec listed in the specification table of each product information page for specific information about each strip. Read More »

What is color temperature? Which one is best?

Graphic showing light output color temperature range

Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. Natural and cool white are considered ideal for task lighting.

Read More About: Lumens vs CCT vs CRI »

How bright is the strip? What are lumens and how many do I need?

Lumens are the measure of how bright an LED strip will be when in use. The higher the lumen rating, the brighter the strip will be. Higher lumen strips are usually better for under cabinet and task lighting. Lower lumen strips are typically used for accent lighting applications.

Read More About: Lumens vs CCT vs CRI »

What accessories do I need?

The only thing you need for certain to power a strip light is a power supply. We offer accessories used for installation, such as connectors and aluminum mounting channels. As well as others that add functionality such as such as dimmers, switches, and remote controls. Complete kits are also offered which include everything you need to get started.

12 Volt Power Supplies

24 Volt Power Supplies

Strip Connectors

Controllers

Housings

Installation Supplies

LED Strip Light Power Supply Calculator

Calculate the minimum power supply capacity needed for your installation. Minimum wattage is calculated as estimated wattage / 0.80 to give you the 20% wattage overhead necessary to improve power supply longevity.

Outdoor?

Yes No

Length (in feet) Voltage Wattage (per foot)

Calculate

Minimum Power Supply Wattage:
xx watts.

Shop Indoor Power Supplies

We've pre-filtered compatible power supplies for you based on voltage and weatherproofing requirements. Double check your wattage selection based on the calculation above before adding to cart. Many of our power supplies are offered in multiple wattages.

Specifications

Ambient Operating Temperature	-20~+45 °C (-4~+113 °F)
Certifications/Compliance	CE, UL Listed
CRI	90+
Current Draw Current Draw is used to size fuses and wire for an electrical circuit. Current draw is the amount of energy consumed by an LED or LEDs in an electrical circuit at a specific voltage, measured in amps (A) or milliamps (mA).	5 A
Current Draw per Foot Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).	305 mA
Dimmable	Yes
Environmental Rating Learn more about environmental rating	Suitable for Wet Locations, Waterproof
Finish	White
IP Rating	IP67
LED Beam Angle Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.	120°
LED Density	92 LEDs/ft
LED Type	2835 SMD
Length	16.4ft (5m)
Max Run (Class 2) The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.	Up to 13.1ft (4m)
Minimum Cut Length	25mm (1.0in)
Operating Voltage	24 VDC
Power Consumption	120 Watts
Rated Life (L70)	50000 Hours
Series	Lux
Strip Width	12mm (0.47in)
Wattage per Foot	7.3 W/ft (24 W/m)

Print Specifications

Part NO	Brightness	CCT Value CCT Value	Color Temperature Color Temperature Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. Natural and cool white are considered ideal for task lighting.	Efficacy
STW-A27K90-C8L-10U5M-24V	777 lm/ft (2547 lm/m)	2700K	Warm 2700K	126 lm/W
STW-A30K90-C8L-10U5M-24V	820 lm/ft (2689 lm/m)	3000K	Warm 3000K	133 lm/W
STW-A40K90-C8L-10U5M-24V	863 lm/ft (2830 lm/m)	4000K	Natural 4000K	140 lm/W
STW-A50K90-C8L-10U5M-24V	863 lm/ft (2830 lm/m)	5000K	Cool 5000K	140 lm/W
