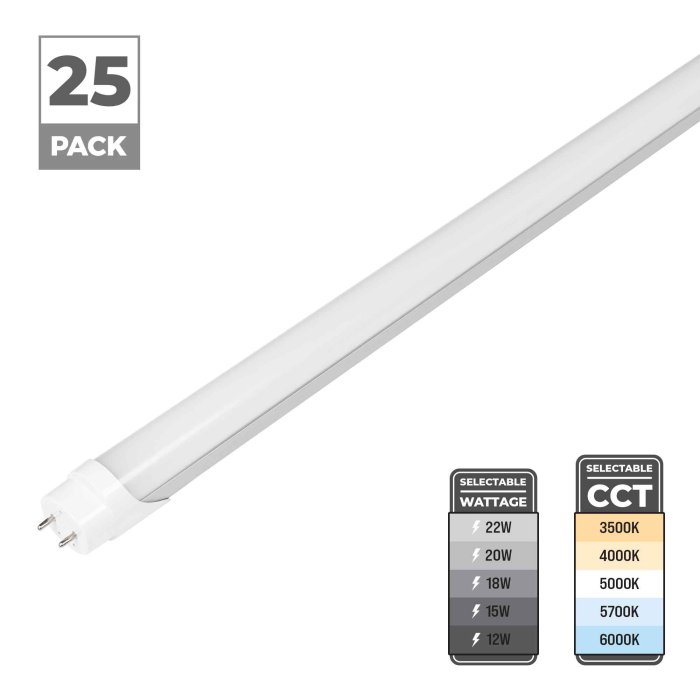

4ft T8 LED Tubes - Selectable CCT and Wattage - Type A/B - Ballast Compatible / Ballast Bypass - Up 2,640 Lumens - 25-Pack
Part Number:
T8U4-SW5C22-F-25PK
Manufacturer Part Number:
$199.99
per Pack
Was
In Stock
Features
- Selectable wattage: 12W, 15W, 18W, 20W, 22W
- Selectable CCT: 3500K, 4000K, 5000K, 5700K, 6000K
- Equivalent to 4ft 32W T8 fluorescent tube
- Plug-and-play Type A or ballast bypass Type B operation
Related Products
Overview
These T8 LED tubes are compatible with plug-and-play (Type A) and ballast bypass (Type B) installations. Each 4ft tube has a selectable wattage and selectable color temperature for various applications. Use the switch on the end of the tube to select between five wattages (12W, 15W, 18W, 20W, 22W) and five CCTs (3500K, 4000K, 5000K, 5700K, 6500K). One tube is equivalent to one 32W fluorescent T8 tube light. The tubes have a G13 Bi-Pin base and are compatible with a single- or dual-ended connection. Available in 25-packs only.
Product Details:
- Durable aluminum housing
- Frosted polycarbonate lens
- Suitable for dry locations
- 155° beam angle
- G13 Bi-Pin base, single- or dual-end wiring
- ETL Classified, ETL Listed
- DLC 5.1 Standard
- 5-year warranty
Documents
T8U4-SW5C22-F Specification Sheet Applications:
- Commercial Lobby and Entrances
- Hospitals
- Offices
- Restaurants
- Retail Shops
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
Type A/B
Type A/B hybrid LED tubes function like dual-ended Type A or single-ended Type B. Using a Type A/B Hybrid tube is advantageous if you want to continue using your ballast now while having the option of bypassing it in the future.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Ballast Compatibility | Type A (Ballast Compatible), Type B (Ballast Bypass), Type A/B (Ballast Bypass/Ballast Compatible) |
| Base Type | G13 (Bi-Pin) |
| Beam Angle | 155° |
| Brand | Super Bright LEDs |
| Bulb Type | T8 |
|
CCT
CCT
 |
3500K, 4000K, 5000K, 5700K, 6500K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC, ETL Classified, ETL Listed |
|
CRI
CRI
 |
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
105/130/155/170/190mA @ 120 VAC, 45/55/65/75/80mA @ 120 VAC |
| Dimmable | No |
|
Dimmer Type
Dimmer Type
|
Non-Dimmable |
| DLC Product ID | S-G8Q8HX |
| Efficacy | 120 lm/W |
|
Environmental Rating
Environmental Rating
 |
Non-weatherproof, Suitable for Dry Locations |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| LED Tube Wiring | Single Ended, Dual Ended |
| Length | 48 in. (4 ft) |
| Lens Color | Frosted |
| Lens Type | Polycarbonate |
| Lumens | 1440 Lumens, 1800 Lumens, 2160 Lumens, 2400 Lumens, 2640 Lumens |
| Operating Voltage | 120-277 VAC |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Warranty | 5 Year |
| Wattage | 12 Watts, 15 Watts, 18 Watts, 20 Watts, 22 Watts |
