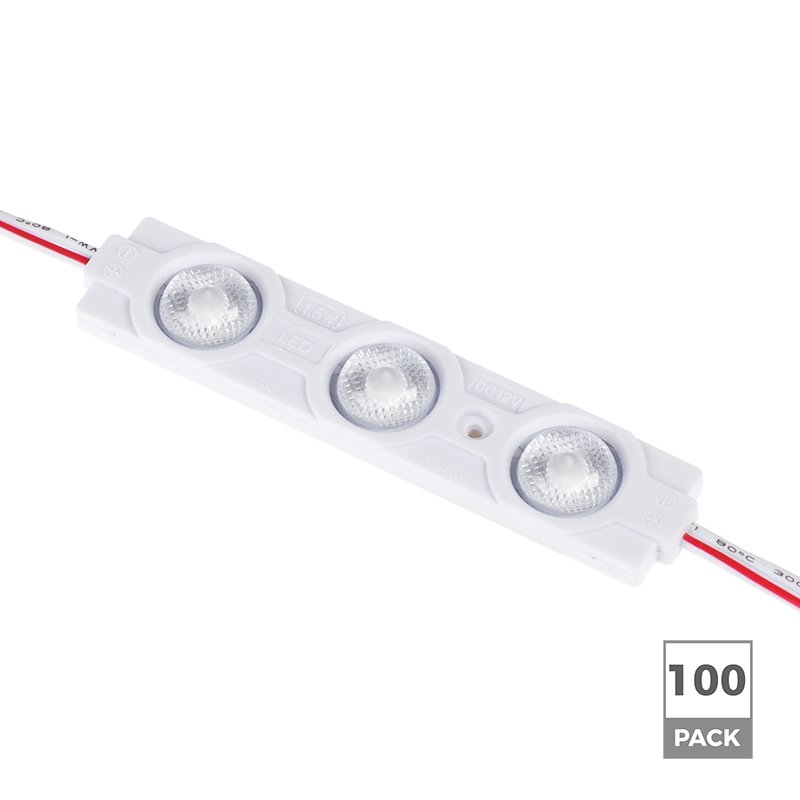

Name: Single Color LED Modules - Linear Module with 3 SMD LEDs - 185 Lumens/Module - Natural White - 100 Pack
Brand: Super Bright LEDs
SKU: SMCC2-W40K3-12V-100PK
Price: 84.95 USD
Availability: InStock
Rating: 4.6 (9 reviews)

Overview

SMCC2 series LED Modules are designed to be a versatile solution for sign and display builders, electrical contractors, OEMs, and more. With high quality optics, each module contains 3 LEDS, and a lens that creates broad, uniform illumination without hotspots. Screw holes allow for permanent mounting, while 3M™ adhesive backing simplifies set up and take down for temporary applications like trade show displays. These modules have a sealed weatherproof body to be used in an array of lighting design applications such as channel letters or display booths.

Product Details:

Dimmable with optional controllers
Each module measures 3.38"x0.72"
5.5" of wire between each module
Max run: 20 modules
Constant-Current driver maintains brightness
35000 hours L70 lifespan
Rated IP65 for wet locations
UL Recognized Component, CE
5 year warranty

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Recognized label ensures that a product component, such as a power supply or LED light strip, has been tested and verified as safe to use in a UL-Listed product. UL-Listed product samples are tested by UL and meet their Standards for Safety requirements.

In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Backlighting
Displays
Interior Home
LED Sign Lighting
Machine Building
Mobile Experience Display Lighting
OEM Components
Retrofits
Stage & Theaters
Windows
Accent Lighting
Channel Letters
Coves
Under-Cabinets
Trade Shows

Specifications

Beam Angle	170°
Constant Current	Yes
Dimming Type TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton. Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application. Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned. 1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. 0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supplyâ€”dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.	Pulse Width Modulation (PWM)
Enclosed Fixture Rated	Yes
Connection Type	Pigtail
LED Lifetime	35000 Hours
LED Type	2835 SMD
Material	Plastic
Max Run (# of Modules) Max Run (or maximum run) is used to specify the total number of modules that can run in series without experiencing dimming due to voltage drop. When Max Run is reached, power wires for additional devices must be 'home run' directly back to the power source, starting a new run.	20
Operating Temperature	-20~+45 °C (-4~+113 °F)
Standards And Certifications	CE, UL Recognized
Voltage	12 VDC

Print Specifications

Part NO	Current Draw Per Module	Lumen Per Module
SMCC2-W40K3-12V	150mA	185 lm/module
SMCC2-W40K3-12V-100PK	150mA	185 lm/module
SMCC2-W40K3-12V-20PK	150mA	185 lm/module
SMCC2-W65K3-12V	150mA	185 lm/module
SMCC2-W65K3-12V-100PK	150mA	185 lm/module
SMCC2-W65K3-12V-20PK	150mA	185 lm/module
SMCC2-WB3-12V	125mA
SMCC2-WB3-12V-100PK	125mA
SMCC2-WB3-12V-20PK	125mA
SMCC2-WG3-12V	125mA
SMCC2-WG3-12V-100PK	125mA
SMCC2-WG3-12V-20PK	125mA
SMCC2-WR3-12V	125mA
SMCC2-WR3-12V-100PK	125mA
SMCC2-WR3-12V-20PK	125mA
