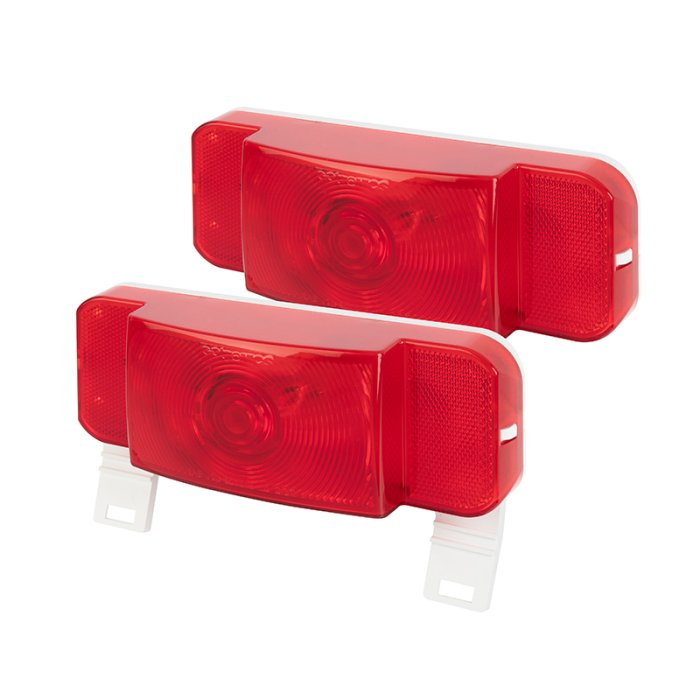

ONE LED RV Combination Tail Light - White Base - 1 LED - Passenger Side / Driver Side
Part Number:
RVSTL006xP
Manufacturer Part Number:
Starting at
$11.99
ea.
Starting at
Was
Features
- ONE Series features high lumens from a single LED
- Rectangular combination LED tail light
- Durable construction with an acrylic lens
- Surface mount to your RV or trailer
- DOT Compliant
- Lifetime Warranty
Related Products
Overview
The rectangular RV ONE LED Combination Tail Light with a white base is designed for stop, turn, and tail applications. The light by Optronics has a white plastic base and a durable red acrylic lens. Driver-side light includes license plate light and license bracket. Surface mount the light to the trailer. Hardwires to power using the 3-wire pigtail.
Product Details:
- ABS base with an acrylic lens
- IP65 waterproof rating
- Surface Mount
- 12 VDC
- DOT Compliant
- Lifetime Warranty
Applications:
- Brake Lights
- Emergency Vehicles
- RV Lights
- Semi-Trucks
- Tail Lights
- Trailers
- Turn Signal Lights
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
The Department of Transportation (DOT) sets strict guidelines in respect to external vehicle lighting that must be followed in order for a light to be street legal. Vehicle fixtures—such as headlights and taillights—that have a DOT compliance mark are legal, safe, and considered to provide suitable illumination for street use when properly installed.
Specifications
| Ambient Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
|---|---|
| Brand | Optronics |
| Certifications/Compliance | DOT Compliant |
|
Environmental Rating
Environmental Rating
|
Waterproof |
| Input Connection Type | Pigtail |
| Input Voltage | 12 VDC |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | Red |
| LED Quantity | 1 |
| Mount Type | Surface Mount |
| Product Materials | ABS, Acrylic |
| Series | ONE |
| Warranty | Lifetime |
| Wire Gauge | 18 AWG |
| Part NO |
Current Draw
Current Draw
The current draw of your lights is calculated using the amount of power your light needs (wattage) and system voltage using the following formula: Watts/Volts = amps or W/V = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED bulbs with the correct amperage ensures proper operation and prevents damage to your electrical system or the bulbs. See your vehicle owner's manual for amperage, wattage, and voltage information, or match the information on your existing bulbs. |
FMVSS Code
FMVSS Code
|
Lens Color | Wattage |
|---|---|---|---|---|
| RVSTL0060P | 10 mA, 320 mA | A, I6, S2, T2 | Red | 0.1 Watts, 3.8 Watts |
| RVSTL0060P+RVSTL0061P | 10 mA, 30 mA, 320 mA | A, I6, L, S2, T2 | Red/Clear | 0.1 Watts, 0.4 Watts, 3.8 Watts |
| RVSTL0061P | 10 mA, 30 mA, 320 mA | A, I6, L, S2, T2 | Red/Clear | 0.1 Watts, 0.4 Watts, 3.8 Watts |
