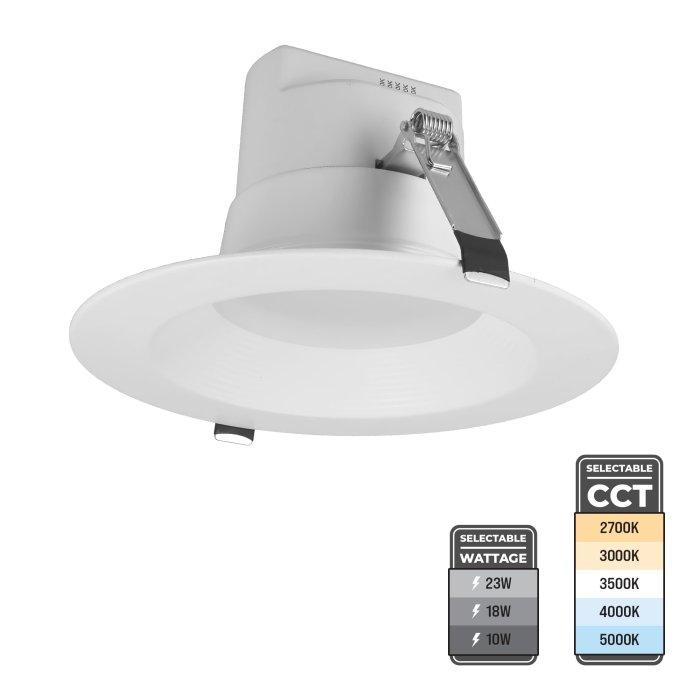

MaxLite 6” Recessed Universal Downlight - Selectable CCT and Wattage - 2700K / 3000K / 3500K / 4000K / 5000K - 10W / 18W / 23W - Up to 2,300 Lumens
Part Number:
RCF6V10WCSTA
Manufacturer Part Number:
$39.99
ea.
Was
In Stock
Features
- Wattage and CCT Selectable
- Spring clips allow direct ceiling installation
- 12W CFL Equivalent
- 0-10 V Dimming
- TAA compliant
- IC-rated for direct contact with insulation
Overview
The MaxLite 6” Recessed Universal Downlight is an economical, all-in-one solution for adding recessed downlighting to commercial applications. The downlight combines 15 light configurations into one fixture: five selectable CCTs (2700K, 3000K, 3500K, 4000K, 5000K) and three selectable wattages (10W, 18W, 23W). Spring clips allow for easy installation in commercial downlight frames, and a steel cable with a carabiner provides added safety. The light includes a flexible electrical wire whip and twist-on wire connectors for installation. It comes in three other sizes, 4", 8", and 10", making it ideal for use in new construction, remodeling, and retrofit projects.
Product Details:
- Selectable switches on top of fixture
- White aluminum housing
- 90+ CRI
- 100° beam angle
- 120-277 VAC
- 5-year warranty
RCF_0-10V Commercial Downlight Series Specification Sheet Applications:
- Auditoriums
- Commercial Downlights
- Conference Halls
- New Construction
- Offices
- Retail Shops
- Retrofit Lighting
- Schools
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
TAA Compliance
TAA compliance refers to the Trade Agreements Act, a federal law that sets guidelines for government contracts and procurement. The act aims to promote fair and open international trade and ensure that products purchased by the U.S. government are manufactured entirely in or have undergone substantial transformation in the U.S. or a designated country.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -20~+40 °C (-4~+104 °F) |
|---|---|
| Beam Angle | 100° |
| Brand | MaxLite |
|
CCT
CCT
|
2700K, 3000K, 3500K, 4000K, 5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
ETL Classified, ETL Listed, TAA Compliant |
|
CRI
CRI
|
90+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
90/160/210 mA @ 120 VAC, 40/70/90 mA @ 277 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 100 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations |
| Equivalency | 32 Watt Compact Fluorescent |
| Finish | White |
| Input Connection Type | Pigtail |
| IC Rated | Yes |
| LED Color | Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lens Color | Frosted |
| Lens Type | Polycarbonate |
| Lumens | 910 Lumens, 1650 Lumens, 2300 Lumens |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Product Weight | 1.3 lb (0.6 kg) |
| Warranty | 5 Year |
| Wattage | 10 Watts, 18 Watts, 23 Watts |
| Wire Gauge | 18 AWG (L/N/G), 24 AWG (dimming) |
