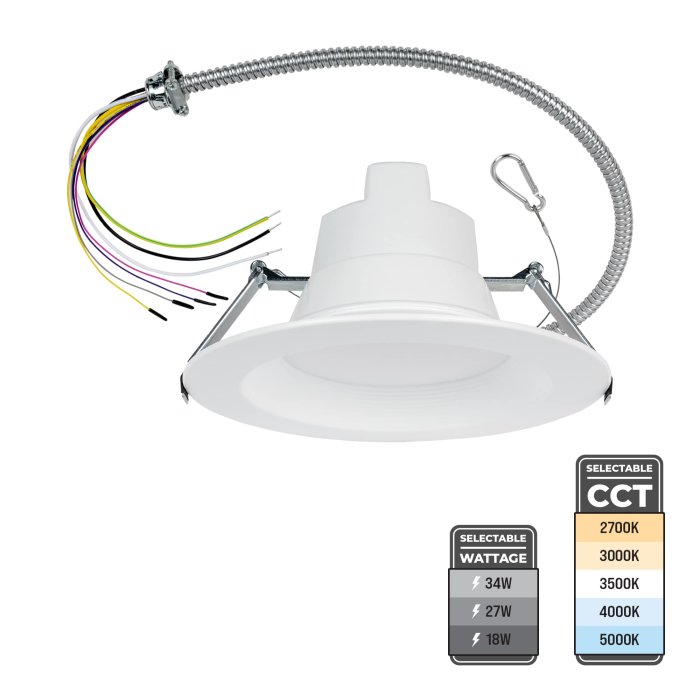

MaxLite 8" LED Recessed Universal Downlight - Selectable CCT and Wattage - Dimmable - Up To 3,400 Lumens - 18W / 27W / 34W
Part Number:
RCF8V18WCSTA
Manufacturer Part Number:
$53.99
ea.
Was
In Stock
Similar Products Available Today
Features
- Wattage and CCT Selectable
- Mounts directly into a ceiling, no can housing required
- Up to 200-watt incandescent equivalent
- 90+ CRI
- 0-10V Dimming
- TAA compliant
- IC Rated for direct contact with insulation
Ask About This Product
Get instant AI-powered answers
Try asking:
Most Popular Compatible Products
Overview
The MaxLite 8" LED Recessed Universal Downlight is an all-in-one solution for adding recessed downlighting in retail, office, and other commercial lighting applications. The switches on the top of the downlight allow for selection of 18, 27, or 34 watts, and color temperatures of 2700K, 3000K, 3500K, 4000K, 5000K. It has 12V AUX output wires to work with c-Max network controls. The 24” wire whip connects directly to a junction box, while the integral driver eliminates traditional recessed housings. The downlight’s slim body fits into shallow ceilings and is easy to install in new construction and remodeling.
Product Details:
- Die-cast aluminum housing and polycarbonate lens
- 24” electrical wire whip included
- 120-277 VAC
- ETL Listed as a fixture; ETL Classified as a retrofit
- 5-Year warranty
RCF8V18WCSTA Specification Sheet Dimensional Drawings
Applications:
- Art Galleries
- Basements
- Bathrooms
- Commercial Downlights
- Home Bars
- Home Theaters
- Offices
- Residential Downlights
- Retail Shops
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
TAA Compliance
TAA compliance refers to the Trade Agreements Act, a federal law that sets guidelines for government contracts and procurement. The act aims to promote fair and open international trade and ensure that products purchased by the U.S. government are manufactured entirely in or have undergone substantial transformation in the U.S. or a designated country.
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Specifications
| Ambient Operating Temperature | -20 to 40 °C (-4 to 104 °F) |
|---|---|
| Beam Angle | 100° |
| Brand | MaxLite |
|
CCT
CCT
 |
2700K, 3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
ETL Classified, ETL Listed, TAA Compliant |
|
CRI
CRI
 |
90+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
160/245/310 mA @ 120 VAC, 70/105/135 mA @ 277 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 100 lm/W |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Suitable for Wet Locations |
| Equivalency | 125 Watt Incandescent, 150 Watt Incandescent, 200 Watt Incandescent |
| Finish | White |
| Input Connection Type | Pigtail |
| IC Rated | Yes |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lens Color | Frosted |
| Lens Type | Polycarbonate |
| Lumens | 1800 Lumens, 2700 Lumens, 3400 Lumens |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Warranty | 5 Year |
| Wattage | Selectable Wattage, 18 Watts, 27 Watts, 34 Watts |
| Wire Gauge | 18 AWG (L/N/G), 24 AWG (dimming) |
