Dimmable LED Driver - DiodeDrive® Series - 200W Enclosed Power Supply - 12V

Dimmable LED Power Supply - DiodeDrive® Series - 200W Enclosed Power Supply - 12V

brand logo
Part Number
CVPSD-200WM-12V-JB-x

Features

  • Rated for outdoor or indoor use
  • TRIAC Dimmable
  • Constant voltage
  • 2 outputs up to 100-watts each
  • Input 120 VAC, output 12 VDC
  • 2 year warranty, ETL Listed
View more details
In Stock
Only %1 left

Starting at $129.99 ea.
Free Shipping
On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify

Overview

Description

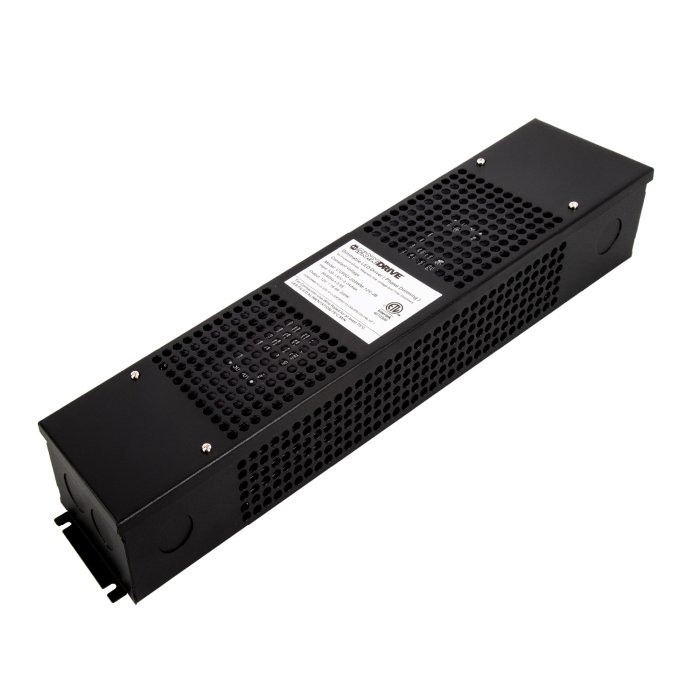

DiodeDrive Constant Voltage 200W LED Driver can effectively power lights that require low voltage, such as strip lights and linear light bars. With a max wattage of 100 per outlet, this TRIAC dimmable device protects against short-circuit, overload, and heat build up. The durable, vented enclosure protects the inner components for indoor or outdoor use. Designed with 2 outputs and 7 total knockouts, wire access is easy. Select to include the optional power cord for simplified installation.
Product Details:
  • Includes 7 conduit knockouts
  • Comprised of two 100-watt outlets
  • Includes mounting slots
  • Compatible with TRIAC dimmers
  • Input 120 VAC
  • Output 12 VDC
  • Driver rated IP66 for wet conditions
  • ETL Listed
  • 2-Year warranty
ETL Listed
ETL Listed
FCC
FCC
2 Years
2 Years
IP66
IP66
Triac Dimmable
Triac Dimmable
Wiring Enclosure
Wiring Enclosure
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.
IP Ratings

Specifications

Ambient Operating Temperature Range -40~+60 °C (-40~+140 °F)
Brand DiodeDrive
Certifications/Compliance ETL Listed, FCC
Dimmable Yes
Dimming Control TRIAC (MLV), TRIAC (ELV)
Environmental Rating Suitable for Wet Locations, Waterproof
Input Frequency Range 50 ~ 60 Hz
Input Connection Type Pigtail
Input Voltage 120 VAC
IP Rating IP66
Number of Outputs 2
Output Current 16.7A (16700mA)
Output Power 200 Watts
Output Voltage 12 VDC
Warranty 2 Year
Print Specifications
