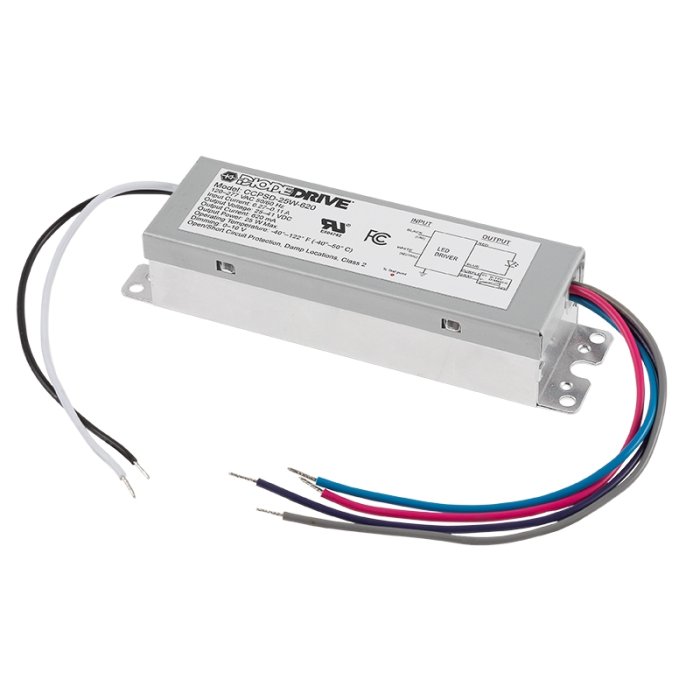

CCPSD series 25W Constant Current LED Driver - DiodeDrive® - 620mA

CCPSD series 25W Constant Current LED Driver - DiodeDrive® - 620mA - 25-41 VDC - IP65 Waterproof - CCPSD-25W-620

brand logo
Part Number


  • Class 2 Constant Current
  • Fully enclosed body
  • Fanless design
  • 0–10V dimmable
  • Weatherproof IP65
  • 25-watts | 620 mA output
  • 5 year warranty
View more details
In Stock
$21.99 ea.
Free Shipping
On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify

Frequently Bought Together


CCPSD series Constant Current Driver from DiodeDrive is a reliable power solution for LED lighting systems. Durable construction maintains an IP65 rating for indoor or outdoor application. High efficiency of 86% and fanless design allow this device to operate with in a wide temperature range. Can be used to replace an existing driver. Please check voltage and wattage of the previous driver to make sure this is a compatible replacement.
Product Details:
  • 120-277 VAC input
  • 18 AWG input/output wires, 20 AWG dimming wires
  • 2kV surge protection
  • Built-in short-circuit, overload, open circuit, and over-temperature protection
  • UL Recognized, FCC approved
UL Recognized
UL Recognized
5 Years
5 Years
10V Dimmable
10V Dimmable
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Recognized label ensures that a product component, such as a power supply or LED light strip, has been tested and verified as safe to use in a UL-Listed product. UL-Listed product samples are tested by UL and meet their Standards for Safety requirements.


Ambient Operating Temperature Range -40~+50 °C (-40~+122 °F)
Brand DiodeDrive
Certifications/Compliance Class 2, FCC, UL Recognized
Dimmable Yes
Dimming Control 0-10V
Environmental Rating Suitable for Wet Locations, Waterproof
Input Connection Type Pigtail
Input Voltage 120-277 VAC
IP Rating IP65
Material Aluminum Housing, Galvanized Steel Top
Output Current 620 mA
Output Voltage 25–41 VDC
Surge Protection 2 kV
Warranty 5 Year
