Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

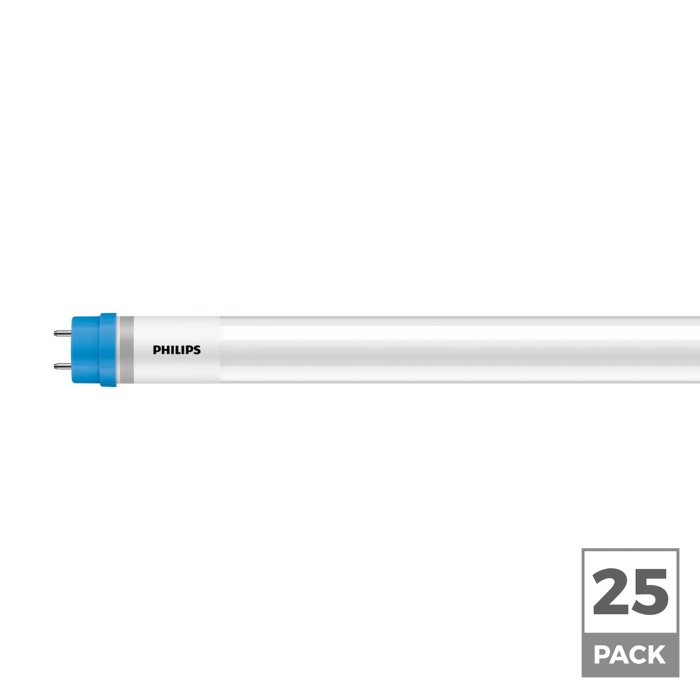

Philips 12.5W FlexFit Hybrid Type-A + B T8 LED Tube - 4ft Linear Tube Light - Double-Ended Bypass - 1,800 Lumens - 25-pack - 4000K
Part Number:
046677600181
Manufacturer Part Number:
12.5T8/COR/48-840/FF18/G/DIM 25/1, 9290023173
Discontinued
Features
- UL Type-A plug-and-play or UL Type-B direct wire ballast bypass
- Long-lasting LED technology reduces maintenance costs
- Over 50% energy savings vs. equivalent fluorescent
- Frosted glass lens for uniform diffused light
- Only available in a 25-pack
Related Products
Overview
With Philips Lighting's 12.5W FlexFit Hybrid Type-A + B T8 LED Tubes, you can enjoy the convenience of UL Type-A plug-and-play and UL Type-B double-ended direct wire operation. These bulbs are compatible with a wide range of existing ballasts, making installation easy and hassle-free. In addition, they work with shunted and non-shunted sockets, which means you can wire them directly to the line voltage if your ballasts fail. Not only do these tubes provide reliable performance, but they also offer a significant boost in energy savings - more than 50% compared to a 4ft 32-watt fluorescent T8 tube. With a long 50,000-hour lifetime, you'll also enjoy reduced maintenance costs. The tube's frosted glass construction emits 1,800 lumens of uniform light in a 220-degree beam, so you can enjoy consistent, high-quality lighting.
Product Details:
- Dual-ended G13 bi-pin with UL Type-A plug-and-play or Type-B ballast bypass
- Suitable for dry locations
- 220° beam angle
- 120-277 VAC
- UL Classified
- DLC 5.1 Standard
- 5-year warranty
Documents
Philips ballast compatibility guide
12.5T8-COR-48-840-FF18-G_25-1 IES File Applications:
- Commercial Buildings
- Hospitals
- Offices
- Restaurants
- Retail Shops
- Schools
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Ballast Compatibility | Type A (Ballast Compatible), Type B (Ballast Bypass), Type A/B (Ballast Bypass/Ballast Compatible) |
| Base Type | G13 (Bi-Pin) |
| Beam Angle | 220° |
| Brand | Philips |
| Bulb Type | T8 |
|
CCT
CCT
|
4000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC, UL Classified (cULus) |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
120 mA @ 120 VAC, 150 mA @ 120 VAC, 67 mA @ 277 VAC, 50 mA @ 277 VAC |
| DLC Product ID | PD745LMC |
| Efficacy | 138 lm/W |
| Input Connection Type | G13 Bi-Pin |
| LED Color | Natural White |
| Rated Life (L70) | 50000 Hours |
| LED Tube Wiring | Dual Ended |
| Length | 48 in. (4 ft) |
| Lens Color | Frosted |
| Lens Type | Glass |
| Lumens | 1800 Lumens |
| Manufacturer Part Number | 12.5T8/COR/48-840/FF18/G/DIM 25/1, 9290023173 |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Glass Lens |
| UL File Number | E364159 |
| Warranty | 5 Year |
| Wattage | 12.5 Watts (Type B), 13 Watts (Type A) |
