Miniature Oval LED Accent Light - Chrome - 20 Lumens
Part Number
AM-OC-x6
Overview
Highlight the look of motorcycles, ATV’s, and trucks with the AM series Miniature Oval LED Accent Light. Designed with a stylish chrome housing that will add to the look of any vehicle. Select from one of 7 color options. A wide 110° beam angle provides maximum illumination from this compact fixture. Attach the weatherproof housing with the included 3M™ adhesive backing and pigtail connection.
Product Details:
- Includes 18.5” pigtail connection
- Includes 3M™ adhesive backing
- Rated IP65 for wet conditions
- Operating Temperature -4 to +122 °F
- 9-15 VDC
- 2 year warranty
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More
Applications
- Boat Lights
- Fuel Tank Lights
- Saddlebag Lights
- Vehicle Accent Lighting
- Motorcycle Accent Lighting
- Engine Lighting
Specifications
| Beam Angle | 110° |
|---|---|
| Current Draw | 0.02A (20mA) |
| LED Type | 3528 SMD |
| Operating Temperature | -20~+50 °C (-4~+122 °F) |
| Standards And Certifications | CE |
| Voltage | 9-15 VDC |

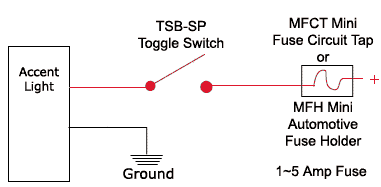

Recommended Wiring Schematics
