Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.
LED Wall Pack - 35W - Durable Glass Lens - 4,550 Lumens - 175W MH Equivalent - 5000K
Part Number:
WPGL2-50K35-H
Manufacturer Part Number:
Discontinued
Features
- Less depth than traditional form factor, for more trim, sleek design
- Wide Type III-S light distribution
- Rated IP65 for outdoor conditions
- Non-yellowing glass lens
- DLC 5.1 Premium
Related Products
Overview

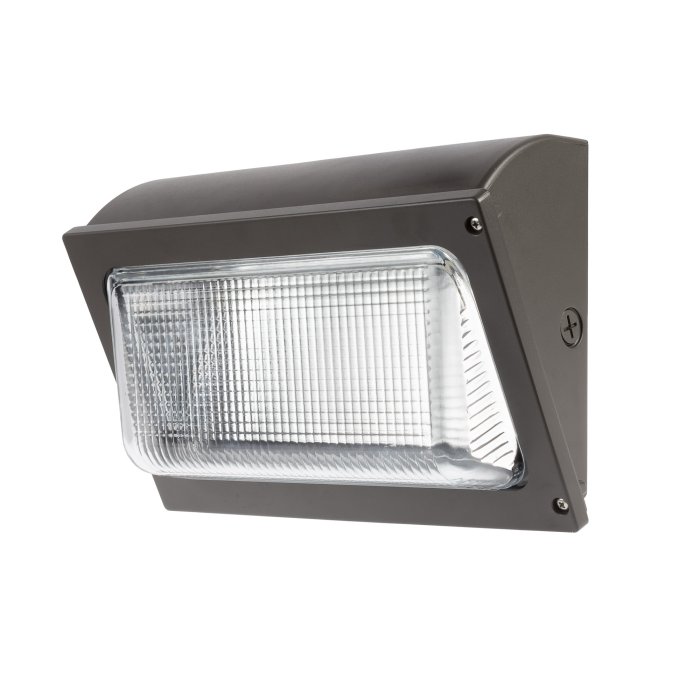

This LED wall pack is a durable and maintenance-free fixture. The fixture is constructed of a bronze die-cast aluminum housing, a long-lasting glass lens, and is rated IP65 for outdoor installations. Traditional design directs light downward, decreasing wasted light. Wide beam distribution is ideal for parking lots, building exteriors, and warehouses.
View the entire WPGL2 Series for more wattages and selectable CCT wattage options.
View the entire WPGL2 Series for more wattages and selectable CCT wattage options.
Product Details:
- Wide Type III-S light distribution
- Surface mount directly to junction box or use 3/4" conduit entry points
- Bronze powder-coated aluminum housing and glass lens
- 0-10V dimmable
- Integrated 4 kV surge protection
- 120-277 VAC
- DLC 5.1 Premium
- 5-year warranty
Documents
WPGL2-50K35-H IES File
WPGL2-50K35-H Photometric Data Sheet
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -40 to 45 °C (-40 to 113 °F) |
|---|---|
| Beam Angle | 100° x 70° |
| Brand | Super Bright LEDs |
| BUG Rating | B2-U3-G2 |
|
CCT
CCT
|
5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
130 mA @ 277 VAC, 290 mA @ 120 VAC |
| Dimmable | Yes |
|
Distribution Type
Distribution Type
|
Type III-S |
| Efficacy | 130 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Equivalency | 175 Watt Metal Halide |
| Finish | Bronze |
| Integrated Surge Protection | 4 kV |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | Cool White |
| Rated Life (L70) | 50000 Hours |
| Lens Type | Glass |
| Lumens | 4550 Lumens |
| Operating Voltage | 120-277 VAC |
|
Photocell
Photocell
What is a Photocell and How Does It Work?When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically.Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed?Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type.Shorting CapPhotocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized.DIP Switch or Slide SwitchWhile DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts.Disconnect the WiringSome photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch. |
No Photocell |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Glass Lens |
| Product Weight | 7.9 lb (3.6 kg) |
| UL File Number | E366643 |
| Warranty | 5 Year |
| Wattage | 35 Watts |
