| Part NO | Color Temperature Color Temperature | Current Draw Current Draw | Current Draw per Foot Current Draw per Foot | LEDs per Segment | Max Run (Class 2) Max Run (Class 2) | Minimum Cut Length | Operating Voltage | Wire Length |
|---|---|---|---|---|---|---|---|---|
| STW-BAMB-B3C-08B5M-12V | Amber | 1.9 A | 116mA | 3 | Up to 16.4ft (5m) | 50mm (1.97in) | 12 VDC | 1.6 ft (0.5 m) |
| STW-BAMB-B6C-08B5M-24V | Amber | 950 mA | 58mA | 6 | Up to 41ft (12.5m) | 100mm (3.9in) | 24 VDC | 1.7 ft (0.5 m) |
| STW-BBLU-B3C-08B5M-12V | Blue | 1.9 A | 116mA | 3 | Up to 16.4ft (5m) | 50mm (1.97in) | 12 VDC | 1.6 ft (0.5 m) |
| STW-BBLU-B6C-08B5M-24V | Blue | 950 mA | 58mA | 6 | Up to 41ft (12.5m) | 100mm (3.9in) | 24 VDC | 1.7 ft (0.5 m) |
| STW-BGRE-B3C-08B5M-12V | Green | 1.9 A | 116mA | 3 | Up to 16.4ft (5m) | 50mm (1.97in) | 12 VDC | 1.6 ft (0.5 m) |
| STW-BGRE-B6C-08B5M-24V | Green | 950 mA | 58mA | 6 | Up to 41ft (12.5m) | 100mm (3.9in) | 24 VDC | 1.7 ft (0.5 m) |
| STW-BPIN-B3C-08B5M-12V | Pink | 1.9 A | 116mA | 3 | Up to 16.4ft (5m) | 50mm (1.97in) | 12 VDC | 1.6 ft (0.5 m) |
| STW-BPIN-B6C-08B5M-24V | Pink | 950 mA | 58mA | 6 | Up to 41ft (12.5m) | 100mm (3.9in) | 24 VDC | 1.7 ft (0.5 m) |

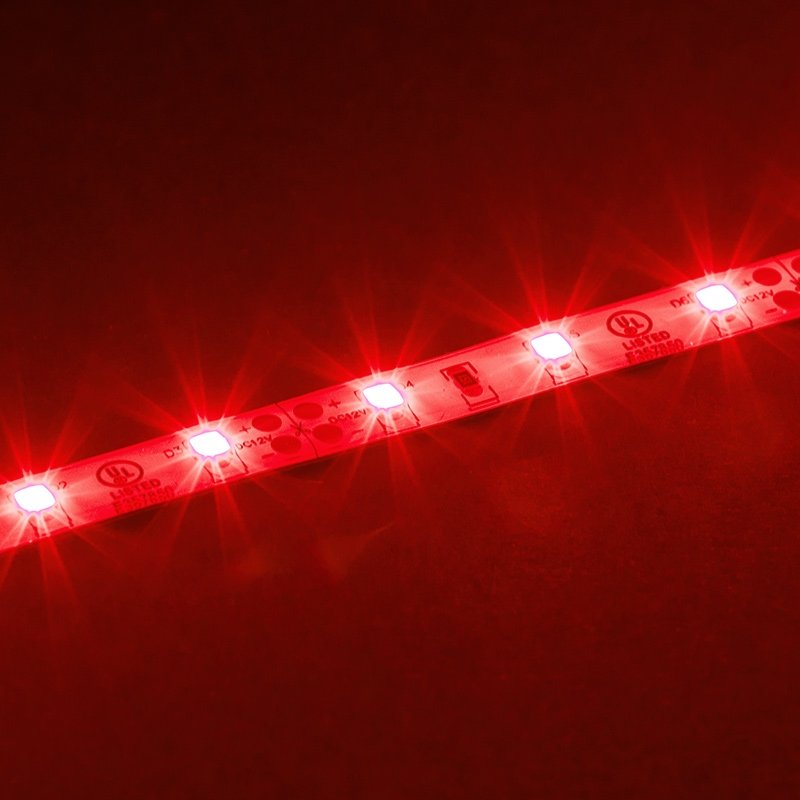

| STW-BRED-B3C-08B5M-12V | Red | 1.9 A | 116mA | 3 | Up to 16.4ft (5m) | 50mm (1.97in) | 12 VDC | 1.6 ft (0.5 m) |
| STW-BRED-B6C-08B5M-24V | Red | 950 mA | 58mA | 6 | Up to 41ft (12.5m) | 100mm (3.9in) | 24 VDC | 1.7 ft (0.5 m) |
| STW-BULV-B3C-08B5M-12V | UV (Blacklight) | 1.9 A | 116mA | 3 | Up to 16.4ft (5m) | 50mm (1.97in) | 12 VDC | 1.6 ft (0.5 m) |
| STW-BULV-B6C-08B5M-24V | UV (Blacklight) | 950 mA | 58mA | 6 | Up to 41ft (12.5m) | 100mm (3.9in) | 24 VDC | 1.7 ft (0.5 m) |
| STW-BYEL-B3C-08B5M-12V | Yellow | 1.9 A | 116mA | 3 | Up to 16.4ft (5m) | 50mm (1.97in) | 12 VDC | 1.6 ft (0.5 m) |
| STW-BYEL-B6C-08B5M-24V | Yellow | 950 mA | 58mA | 6 | Up to 41ft (12.5m) | 100mm (3.9in) | 24 VDC | 1.7 ft (0.5 m) |
$18.99 ea.
$43.99 ea.
$18.99 ea.
$9.99 ea.
$9.99 ea.
$23.99 ea.
The Mean Well LED switching power supply is a safe and economical choice for powering your LED lighting. It has integrated short circuit, overload, overvoltage, and over-temperature protection. Additionally, it can withstand a 300VAC surge input for 5 seconds and has a built-in cooling fan. A universal AC input range of 100-240VAC and multiple wattage options make it a versatile and easy-to-use option for powering LED lighting systems.
The 4-channel LED DMX Decoder translates DMX512 signals to single-color, tunable white, RGB, or RGBW LED strip lights and fixtures. It can control up to 4 separate constant voltage single-color LED products or one a single RGBW light bar or flexible strip light. Decoder can run in standalone mode using the digital display or under DMX512 digital control signals using an RJ45 or XLR3 input/output interface. Connect up to 4 amps per channel, 16 amps total for the decoder. Control a maximum load of 192W for 12 VDC or 384W for 24 VDC. Includes one male and one female XLR3 connector.
$18.99 ea.
$43.99 ea.
$18.99 ea.
$9.99 ea.
$9.99 ea.
$9.99 ea.
$13.99 ea.
$18.99 ea.
The 4-channel LED DMX Decoder translates DMX512 signals to single-color, tunable white, RGB, or RGBW LED strip lights and fixtures. It can control up to 4 separate constant voltage single-color LED products or one a single RGBW light bar or flexible strip light. Decoder can run in standalone mode using the digital display or under DMX512 digital control signals using an RJ45 or XLR3 input/output interface. Connect up to 4 amps per channel, 16 amps total for the decoder. Control a maximum load of 192W for 12 VDC or 384W for 24 VDC. Includes one male and one female XLR3 connector.
Our LDK-8A is a universal single-color LED dimmer switch that can dim most 12V DC or 24V DC LED products from 0%-100% using a Pulse Width Modulation (PWM) circuit knob control. The plastic housing has screw terminals for power in and out connections with a maximum load of 8 Amps.
LED dual slide switch and dimmer combo designed to fit in standard wall switch boxes. Universal LED dimmer that can dim any 12VDC or 24VDC Dual Color or Variable Color Temperature LED products from 0%-100% using Pulse Width Modulation (PWM) slide control. 120W maximum load capacity. 4.5in wire leads for input and output connection. Dimming level is adjusted by built-in slider control. Available in white housing. Optional wall trim plate also available.
$22.99 ea.
Designed for use within the EZ Dimmer series, this wireless 1-channel LED dimmer controller operates within a 12-36 VDC while receiving RF signals from a compatible wireless LED dimmer wall switch. The LED receiver has a maximum load capacity of 8 amps and has spring terminal connectors for in and out power connections.
Designed for use within the EZ Dimmer series, this wireless 4-channel LED dimmer controller operates within a 12-36 VDC while receiving RF signals from a compatible wireless LED dimmer wall switch. The LED receiver has a maximum load capacity of 32 amps and has spring terminal connectors for in and out power connections.
This Mini PIR Sensor automatically powers on connected 12 VDC or 24 VDC LED lights when human motion is detected. The sensors will power on lights at night or during the day, and an adjustable dial allows your lights to remain on for 1, 3, 5, 8, or 10 minutes. Motion detection range is within 8 meters (26') of the PIR sensor. The single-channel sensor has a 6-Amp maximum load and operates within a 12-24 VDC range. Price for each.
Adjust the brightness of single-color LED strip lights using the LED dimmer. The single-color dimmer has a 30m communication range with a synchronization function that allows multiple controllers to be controlled simultaneously. Control one lighting zone per one dimming controller using a compatible remote control or using the MiBoxer app on your smartphone. For smartphone control, the dimmer must be paired with Wi-Fi LED Controller Hub. Compatible remote controls and Wi-Fi controllers are sold separately.
$23.99 ea.
The Mean Well LED switching power supply is a safe and economical choice for powering your LED lighting. It has integrated short circuit, overload, overvoltage, and over-temperature protection. Additionally, it can withstand a 300VAC surge input for 5 seconds and has a built-in cooling fan. A universal AC input range of 100-240VAC and multiple wattage options make it a versatile and easy-to-use option for powering LED lighting systems.
$21.99 ea.
This LED switching power supply has been designed for constant voltage operation. Reliable and widely applicable, it powers LED technology without energy waste or risk of circuit overload. Fully enclosed in a waterproof case.
$19.99 ea.
$7.99 ea.
$12.99 ea.
$114.99 ea.
Magnitude Dimmable LED Power Supplies are designed with magnetic transformer cores. The 12V driver has a metal NEMA 3R enclosure and can be used outdoors and indoors. It is equipped with auto-reset breakers— one on the input and one on the output, which protect both the load and driver. Includes 2 knock-outs to enable easy installation that complies with electrical code requirements. Efficiency of 80% and above allows the driver to operate at low temperatures. Compatible with TRIAC dimmers.
$13.99 ea.
$46.99 ea.
DiodeDrive Class 2 switching power supply is designed for constant voltage operation. Fully enclosed in a waterproof case, the durable device will withstand moisture and dust for a long lifespan. Reliable and widely applicable, use it to power LED lights inside or outside without energy waste or risk of circuit overload.
$49.99 ea.
Class 2 switching power supply from DiodeDrive is fully enclosed with a heavy duty case to withstand water and debris for a long lifespan. Backed by a 7 year warranty, the reliable device is designed for constant voltage operation. Use it to power a wide range of low voltage LED lighting applications, inside or outside, without energy waste or risk of circuit overload.
$29.99 ea.
$1.99 ea.
3M Adhesion Promoter 06396 is a liquid primer specifically formulated for automotive applications that enhances adhesion of 3M Acrylic Foam Tapes for interior and exterior trim applications. The sponge applicator packet is easy to use and makes an ideal choice for LED strip light and aluminum extrusion installations.
$19.99 ea.
$7.99 ea.
$21.99 ea.
The Mean Well LED switching power supply is a safe and economical choice for powering your LED lighting. It has integrated short circuit, overload, overvoltage, and over-temperature protection. Additionally, it can withstand a 300VAC surge input for 5 seconds and has a built-in cooling fan. A universal AC input range of 100-240VAC and multiple wattage options make it a versatile and easy-to-use option for powering LED lighting systems.
$21.99 ea.
The Mean Well LED switching power supply is a safe and economical choice for powering your LED lighting. It has integrated short circuit, overload, overvoltage, and over-temperature protection. The 100W and 200W cool by air convection, and the 350W has a built-in cooling fan. A universal AC input range of 100-240VAC and multiple wattage options make it a versatile and easy-to-use option for powering LED lighting systems.
$114.99 ea.
$21.99 ea.
This LED switching power supply has been designed for constant voltage operation. Reliable and widely applicable, it powers LED technology without energy waste or risk of circuit overload. Fully enclosed in a waterproof case.
$39.99 ea.
The DiodeDrive Constant Voltage LED Driver is a Class 2 power supply for indoor lighting systems compatible with TRIAC dimmers. It has two screw terminals and six conduit knockouts with easy wire access shielded within the durable, vented enclosure. Built-in features include a junction box and protection against overload, short-circuit, and over-temperature. Available with a maximum wattage of 25W or 60W. The optional 6ft power cord has a 5-15 plug.
$12.99 ea.
$99.99 ea.
$129.99 ea.
$46.99 ea.
DiodeDrive Class 2 switching power supply is designed for constant voltage operation. Fully enclosed in a waterproof case, the durable device will withstand moisture and dust for a long lifespan. Reliable and widely applicable, use it to power LED lights inside or outside without energy waste or risk of circuit overload.
$49.99 ea.
