Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.
Open Box 36" T5 Integrated LED Light Fixture - Multipurpose Linkable Linear Light - 12-36V - 5000K
Part Number:
IT5-50K36_ob
Manufacturer Part Number:
Discontinued
Features
- Link up to two fixtures for a 6' maximum length
- Includes all accessories needed to mount, power, and link fixtures
- 400 lm/ft
- 12-36 VDC
- Lifetime warranty
- Open Box Tier: Good
Overview

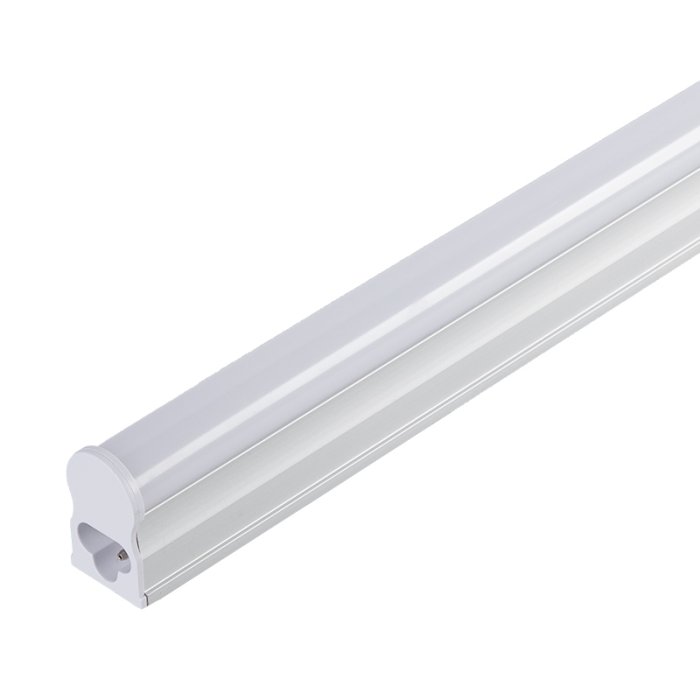

IT5 series integrated LED light fixture is 36 inches long and can be linked in pairs to create a fixture with a six-foot length. Designed as a general lighting solution for low-voltage applications, these compact fixtures can be surface mounted in RV or trailer interiors, food trucks, sheds, boat cabins, and more. The round frosted lens diffuses a wide beam of bright, glare-free light. Install one linear light bar independently, or use included accessories to mount, connect, and power two fixtures together. Note: Do not link more than two (2) together in a run.
Product Details:- Open Box Tier: Good
- Extruded aluminum body, polycarbonate lens
- Rated IP20 - suitable for damp locations
- 5000K cool white
- 120° beam angle
- CRI 80+
- Surface mount
- 20 AWG pigtail connector
Accessories included:- 2 mounting brackets with screws
- 1 direct connector
- 1 six-inch pigtail power adapter
- 1 end cap
- Open Box Tier: Good
- Extruded aluminum body, polycarbonate lens
- Rated IP20 - suitable for damp locations
- 5000K cool white
- 120° beam angle
- CRI 80+
- Surface mount
- 20 AWG pigtail connector
Accessories included:- 2 mounting brackets with screws
- 1 direct connector
- 1 six-inch pigtail power adapter
- 1 end cap
- 2 mounting brackets with screws
- 1 direct connector
- 1 six-inch pigtail power adapter
- 1 end cap
Documents
IT5-50K36_ob User Manual
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -25~+45 °C (-13~+113 °F) |
|---|---|
| Certifications/Compliance | CE |
|
Color Temperature
Color Temperature
Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. |
5000K |
| CRI | 80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
280 mA @ 36 VDC, 420 mA @ 24 VDC, 830 mA @ 12 VDC |
| Dimmable | No |
| Finish | Gray |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Color | Cool 5000K |
| Length | 36 in. (3 ft) |
| LED Lifetime | 35000 Hours |
| Lumens Per Foot | 400 lm/ft |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.
|
2 Bars |
| Operating Voltage | 12-36 VDC |
| Wattage | 10 Watts |
| Wire Gauge | 20 AWG |
