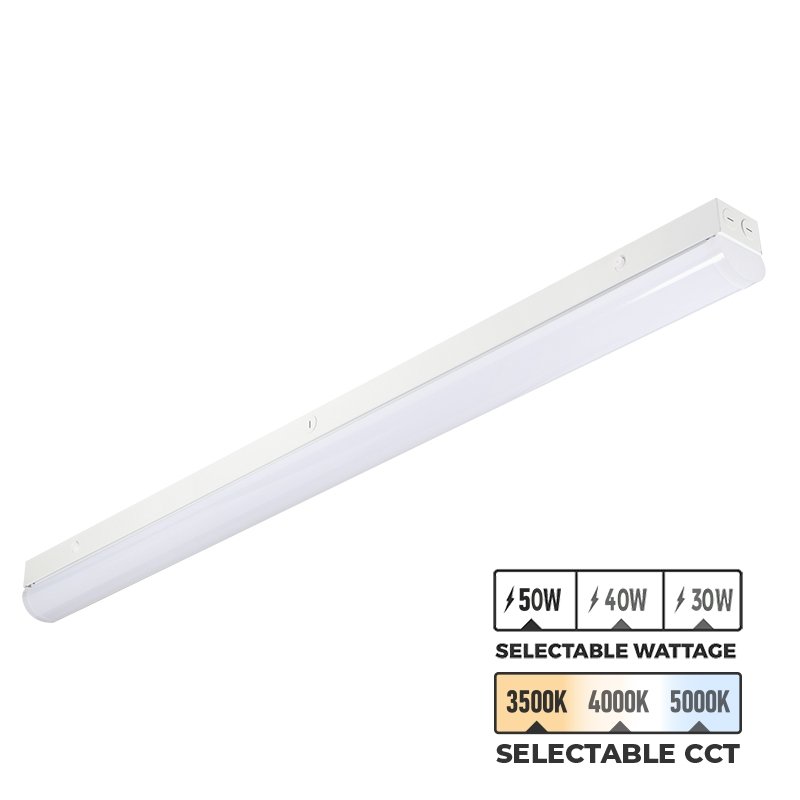

Name: 4' LED Strip Light Fixture / Shop Light - Selectable CCT and Wattage - Up To 6250 Lumens - 3500K / 4000K / 5000K - 30W / 40W / 50W
Brand: Super Bright LEDs
SKU: LSFD-SW3C50-H
Price: 64.99 USD
Availability: InStock

Overview

The LED strip light fixture features field-selectable CCT and wattages for an all-in-one fixture that fits a wide range of residential, commercial, and industrial environments. Use the internal slide switches to select between three color temperatures: 3500K, 4000K, and 5000K, and three wattages: 30W, 40W, and 50W. Construction is both durable and lightweight, with a white steel body rated for use in damp locations. The curved lens diffuses light, producing a uniform 120° beam angle. The lens-release button allows for easy access to the wiring compartment and mounting holes. Ideal for basements, workshops, and garages.

Product Details:

Equivalency of: up to three 32-watt T8 tubes
White steel housing and a polycarbonate lens
Six 1/2” trade size knockouts
IP44 for applications where moisture may be present
0-10 V dimming
Compatible with optional motion sensor (sold separately)
Flush mount using junction box bracket
Suspension mount with optional hanging kit (sold separately)
120-277 VAC
Certified by UL
DLC 5.1 Premium

This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.

This product has been certified by Underwriter Laboratories to their engineering and safety standards.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Stairwells and Public Corridors
Warehouses
Utility Lighting
Garages
Retail
Pole Barns
Metal Buildings
Shops
Low Bays

Specifications

Beam Angle	120°
Brand	Super Bright LEDs
CCT Value	3500K, 4000K, 5000K
Comparable Wattage	2-lamp 28W T8 Tubes, 2-lamp 32W T8 Tubes
CRI	80+
Current Draw	108/144/181 mA @ 277 VAC, 250/333/417 mA @ 120 VAC
Dimensions	4ft
Dimmable	Yes
Dimming Type TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton. Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application. Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned. 1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. 0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.	0-10V
Efficacy	135 lm/W
Fixture Type	Standard Strip Fixture
Input Connection Type	Pigtail
IP Rating	IP44
LED Color	Selectable CCT
LED Lifetime	50000 Hours
Length	48in (4ft)
Lens	Frosted
Linkable	No
Lumen	4050 Lumen, 5200 Lumen, 6250 Lumen
Material	Polycarbonate Lens, Steel Housing
Operating Temperature	-20~+45 °C (-4~+113 °F)
Power Consumption	30 Watts, 40 Watts, 50 Watts
Power Factor	≥0.9
Product Weight	3lb 11oz (1.67kg)
Shipping Exclusions and Details Shipping exclusions apply to some products, making them ineligible for free shipping. Any order with a combined weight of over 150 pounds or containing an excluded item will be excluded from free shipping automatically. One or more exclusions may apply to the same product as well. Exclusions per item may include, but are not limited to, the following: • Any package with any two dimensions of the package over 30 inches. • Any package with a single side of the package over 42.3 inches. • Any package with a total combined length of the longest side added to 2 times the second and third longest sides over 130 inches. (L + 2H + 2W) • Any package with a weight over 50 pounds.	Excluded From Free Shipping
Standards And Certifications Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	Certified by UL, DLC Premium
Voltage	120-277 VAC
Wire Gauge	18 AWG

Print Specifications

Accessories & Power Supplies

All Accessories

Dimmers

Mounting

Installation Supplies

Wiring

Controllers

Emergency Drivers

Accessories Links

Accessory Category

Accessory Type:

$27.99 ea.

0-10 Volt DC Low Voltage Dimmer with Slide Dimmer Switch - 0-10V Dimmer Part Number: F019-W
In stock

This 0-10 volt DC low-voltage dimmer is designed for high-power LEDs, 3021/3023 BuckPuck™ LED drivers, and other compatible drivers or light engines with a 0-10V current-sinking control. Features logarithmic response and reverse polarity protection. Product comes complete with slider switch, wall trim plate, mounting screws, and wire nuts.
$44.99 ea.

0-10V LED Switch and Slide LED Dimmer - Single Pole/3-Way Part Number: DMD-LED3-105-x
In stock

Use this 0-10V LED switch and slide dimmer on LED fixtures, such as panels and high-bay lights, with 0-10V dimming capabilities. It has a paddle for on/off functionality and a small slider for dimming. Use the 3-way switch to control lights from two locations. Integrated high- and low-end trim adjustment dials allow access to the lowest and highest light levels without flickering. The dimmer is rated for six amps at 120 VAC or three amps at 277 VAC (amps = fixture wattage/voltage).
$34.99 ea.

0-10 Volt DC Low Voltage Dimmer with Rotary Dimmer Switch - 0-10V Dimmer Part Number: A019
In stock

This 0-10 volt DC low-voltage dimmer is designed for high-power LEDs, 3021/3023 BuckPuck LED drivers, and other compatible drivers or light engines with a 0-10V current-sinking control. Features logarithmic response and reverse polarity protection. Product comes complete with knob, wall trim plate, mounting screws, and wire nuts.

$4.99 ea.

Suspension Kit - 4ft LED Strip Light Fixtures Part Number: LSFD-HK
In stock

Use the suspension cables to hang LED light fixtures. The suspension kit includes two stainless steel hooks and two 4.65ft aircraft cables with durable corrosion-resistant construction to mount fixtures securely.

$0.09 ea.

22-16 AWG Grey 3M Twist-On Wire Connector Part Number: WN-2216
In stock

Use these 3M 22-16 AWG grey wire connector for closed-end connections and secure splices. The UL-Listed twist-on wire connectors tighten with out ratcheting and feature a deep skirt to prevent bare wire from being exposed.

$7.99 ea.

Power Cord for Power Supplies - Power Cord for Power Supplies Part Number: _POWERCORD
In stock

Standard grounded power cord for plugging power supplies into standard 115VAC receptacle. 18 gauge, SJT type 3 conductor, 6 foot length.
$0.39 per Foot

22 Gauge Wire - Two Conductor Power Wire - 22 AWG Part Number: WP22-2
In stock

Power Wire for low voltage installations. Parallel bonded two conductor 22 gauge stranded wire. Price per foot.
$0.59 per Foot

SJT Cable - Black Jacketed 18 Gauge Three Conductor Power Wire - 18 AWG Power Wire Part Number: WP18-35J
In stock

Parallel bonded three conductor 18 gauge 3x18 stranded power wire for installations. This standard SJT cable is ideal for high voltage applications. Price per foot.

$28.99 ea.

PIR Motion Sensor - Fixture Mount - 360° Detection - 120-277 VAC Part Number: BRI819P-B-O
In stock

BRI819 series Motion Sensor turns lights ON/OFF based on occupancy detection. Mount to a high bay to control a single light, or mount to a central junction box to control multiple lights from one sensor. Maximize efficiency, lower energy costs, and reduce maintenance in commercial and industrial locations with passive infrared occupancy sensor. Suitable for use in high bay areas such as distribution centers and manufacturing areas.
$34.99 ea.

Merrytek Microwave Occupancy Sensor - Remote Controlled - 120-277 VAC Part Number: MC054V RC2 D-x
In stock

Merrytek Microwave Occupancy Sensor provides hands-free and efficient operation of light fixtures. Highly configurable, the motion sensor includes customizable control options including detection range, daylight threshold, dimming level, and standby period. Mount to any 1-10V dimmable fixture in a standard ½" knockout. The remote can be used to access control features, as well as be paired with multiple sensors to control several light fixtures.
$37.99 ea.

0-10V PIR Motion Sensor - Fixture Mount - 360° Detection - 120-277 VAC Part Number: BRI819P-B-D
In stock

BRI819 series Motion Sensor dims and turns lights ON/OFF based on occupancy detection. Mount to a high bay to control a single light, or mount to a central junction box to control multiple lights from one sensor. Maximize efficiency, lower energy costs, and reduce maintenance in commercial and industrial locations with passive infrared occupancy sensor. Suitable for use in high bay areas such as distribution centers and manufacturing areas.

$229.99 ea.

Green Creative 23W Emergency LED Driver - Title 20 Compliant - 120-277 VAC Part Number: 23EMDRIVER
In stock

The 23W Emergency LED Driver by Green Creative provides constant power for a minimum of 90 minutes on a 24 hour charge. The driver is constructed with steel and has 48-3/4" flex conduit for easy connection. 23EMDRIVER has a 120-277 VAC input. Test switch and cover plate included.
$82.99 ea.

Emergency Battery Backup Inverter - 8W - 100-347V Input - 170 VDC Output Part Number: EMH-08170-HY
In stock

The internal lithium-ion battery provides backup light for a minimum of 90 minutes and powers fixtures up to 72W. The UL 924 Listed certification and an included test switch/charge indicator.
$109.99 ea.

Emergency Battery Backup Inverter - 25W - 100-347V Input - 170 VDC Output Part Number: EMA25FY-170
In stock

The internal lithium-ion battery provides backup light for a minimum of 90 minutes and powers fixtures up to 200W. The UL 924 Listed certification and an included test switch/charge indicator.
