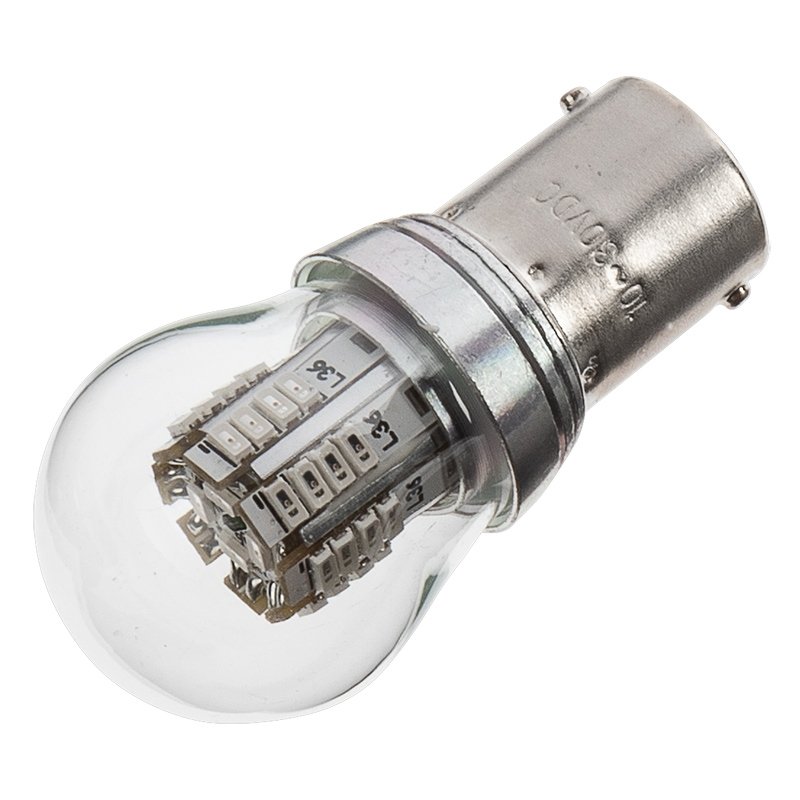

Name: 1156 LED Light Bulb with Stock Cover - (36) SMD LED Tower - BA15S Base - Red
Brand: Super Bright LEDs
SKU: 1156-R3W-G
Price: 14.99 USD
Availability: InStock
Rating: 4.6 (85 reviews)

Overview

Description

The BA15S plug-and-play LED replacement bulb is suitable for vehicle applications. The 360° beam angle reduces hot spots and provides a wide viewing angle for all-over light emission. The stock bulb cover encloses the LEDs and gives the bulb a traditional look. Designed to last 30,000 hours- 25 times longer than incandescent bulbs- they are ideal for tail lights, brake lights, and turn signals.

Product Details:

12 VDC
3 year warranty

Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Specifications

Base Type	BA15S (Single Contact Bayonet)
Beam Angle	360°
Brand	Super Bright LEDs
CAN Bus CAN Bus LED bulbs are simple plug-and- play LED bulbs which are made specifically for CAN Bus-equipped vehicles. These bulbs work with your vehicle's advanced computer system, so when your vehicle's computer reads them, they respond back correctly. To see if your vehicle operates with a CAN Bus system, simply remove the bulb you're looking to replace, start your vehicle, and if you have a "Bulb Out" message on your dash you have a CAN Bus system.	No
Dimmable	No
IP Rating	IP65
LED Lifetime	30000 Hours
LED Quantity	36 LEDs
LED Type	3014 SMD
Lens	Clear
Material	Glass Lens
Operating Temperature	-30~+60 °C (-22~+140 °F)
Oversize	No
Polarity Sensitive Polarity Sensitive (YES) Bulbs have Plus and Minus (like batteries) and will only work when polarity is correct. If bulb does not work when installed, turn it around in the socket. Polarity Sensitive (NO) Bulbs do not have Plus and Minus and will work either way installed in the socket.	No
Power Consumption	1.9 Watts
Reference Number	1156 (BA15S)
Stock Numbers	1156, 1141, 7506, 1073, 93, 1156A, 1295, 3497, 97, 1156NA, 63, 631, 1195, 7506L, 1156LL, 12088, 1295NA, 1159, 3497LL, 7533, 631LL, 7506LL, 7506ST, 93LL, 97LL, 97A, 199, 1095, 1141LL, 1156ST, 1073LL, 1156ALL, 2396, 97NA
Voltage	12 VDC

Print Specifications

Part NO	CCT Value CCT Value	Current Draw	Efficacy	LED Color	Lumen	Lumen Per LED
1156-CW3W-G	5700K	210 mA	142 lm/W	Cool 5700K	290 Lumens	7.5
1156-CW3W-G-2PK	5700K	210 mA	142 lm/W	Cool 5700K	290 Lumens	7.5
1156-NW3W-G	4000K	220 mA	142 lm/W	Natural 4000K	300 Lumens	7.5
1156-NW3W-G-2PK	4000K	220 mA	142 lm/W	Natural 4000K	300 Lumens	7.5
1156-R3W-G		140 mA	34 lm/W	Red	65 Lumens	1.8
1156-R3W-G-2PK		140 mA	34 lm/W	Red	65 Lumens	1.8
1156-WW3W-G	3000K	220 mA	142 lm/W	Warm 3000K	290 Lumens	7.5
1156-WW3W-G-2PK	3000K	220 mA	142 lm/W	Warm 3000K	290 Lumens	7.5

Comparing Lumens Across Colors: Why Do Colored Bulbs Have Such Low Lumen Values

Lumen meters are a great way to measure white light output but can be deceptive for colored bulb intensity. Lumens measure light wavelengths in all colors of the visible spectrum. Because multiple wavelengths create white light and colored bulbs are a single-wavelength source, colored bulbs will have lower lumen readings. However, they will appear equally as bright as a white bulb.

Accessories & Power Supplies

All Accessories

Flashers & Relays

Installation Supplies

Bulb Sockets

Load Resistors

Accessories Links

Accessory Category

Accessory Type:

$1.99 ea.

BA15 Bayonet Base Sockets - Wired Part Number: BA15x-SW
In stock

Replacement BA15 sockets accept 15-mm bayonet base bulbs. Socket fits single-contact single-filament (BA15S) 1156 bulbs, dual-contact dual-filament (BAY15D) 1157 bulbs or dual-contact single-filament (BA15D) 1142 bulbs. Durable construction with 6” power wires. Mounting holes (spaced 1-1/4” apart) let you secure the socket in place. Price per socket.
$2.99 ea.

BA15 Bayonet Base Sockets - Wired Part Number: BA15x-SW2
In stock

Replacement BA15 sockets accept 15-mm bayonet base bulbs. Socket fits single-contact (BA15S) 1156 bulbs or dual-contact dual-filament (BAY15D) 1157 bulbs. Durable construction with 4-1/2” power wires. Price per socket.

$4.95 ea.

LED Light Load Resistor Kit - LED Turn Signal Hyper Flash & Warning Fix Part Number: RL-650-K-x
In stock

6 Ohm, 50 Watt load resistor kit. Solves common LED turn signal problems with hyperflashing and bulb out warning indicators. Connect one across each LED turn signal bulb to simulate filament Tail/Turn signal bulbs.

View Installation Diagram & Instructions [PDF]. Mount the resistor away from painted surfaces, plastic, or other components that may be damaged by the heat generated by the resistor.
