LBFA-DT LuxBar Mini Touch Dimmer - Touch Dimmer
Part Number
LBFA-DT
Overview
LBFA series touch dimmer for LBFA linear light fixtures. Dimmer can be placed anywhere on the series and must be used with included 24 VDC power supply. Includes the power connector (LBFA-PDT), two direct interconnect jumpers (LBFA-I), 1 flat type mounting clip (LBFA-MC1), and user manual.
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More
Specifications
| Connector Type | Dimmers, Multiple Accessory Options, Single Color Dimmer |
|---|---|
| Input Connection Type | 5.5 mm x 2.1 mm DC Barrel |
Model LBFA-D LuxBar 24VDC Dimmers Specifications
 |
 |
 |
|||||
| SPECIFICATIONS | LBFA-DT | LBFA-D2 | LBFA-D4 | ||||
| PRICE | $14.95 |
$49.95 |
$59.95 |
||||
| DC INTPUT/OUTPUT VOLTAGE | 24V ±5% | 24V ±5% | 24V ±5% | ||||
| OUTPUT RATED CURRENT | 1.6A (1600ma) | 1.6A (1600ma) per channel / 3.2A (3200ma) total | 1.6A (1600ma) per channel / 6.4A (6400ma) total | ||||
| DC OUTPUT POWER | 40W | 80W | 160W | ||||
| COMPATIBLE POWER SUPPLY | CPS-24VDC-24W or CPS-24VDC-48W | CPS-24VDC-24W or CPS-24VDC-48W | SP-240-24, S-320-24 or RD-150-24 | ||||
| MAX NO. OF LBFA-W2 FIXTURES (max run* = 72) | 72 | 145 | 290 | ||||
| MAX NO. OF LBFA-W6 FIXTURES (max run* = 24) | 24 | 48 | 96 | ||||
| MAX NO. OF LBFA-W12 FIXTURES (max run* = 12) | 12 | 24 | 48 | ||||
| MAX NO. OF LBFA-W24 FIXTURES (max run* = 6) | 6 | 12 | 24 | ||||
| MAX NO. OF LBFA-W36 FIXTURES (max run* = 4) | 4 | 8 | 16 | ||||
| MAX NO. OF LBFA-W48 FIXTURES (max run* = 3) | 3 | 6 | 12 | ||||
| To determine how many LED products can be connected to a power supply: divide the total current capability of the power supply by the current draw of the LED product |
|||||||
| WEIGHT | 233g | 233g | |||||
| WORKING TEMP., HUMIDITY | 0°C~+40°C, 20%~80% RH | 0°C~+40°C, 20%~80% RH | |||||
| STORAGE TEMP., HUMIDITY | -20°C~+80°C, 10%~90% RH | -20°C~+80°C, 10%~90% RH | |||||
| *Maximum number of units in one run connected end to end - for higher quantities, multiple runs back to the power supply must be made to prevent excessive voltage drop | |||||||
Instructions Manual for Model LBFA-DT Mini Touch Dimmer
Safety Precautions
- Do not scratch the sensing area. Do not disassemble, repair, or modify the device
- Disconnect the power (adapter) before installing/removing this dimmer.
- Do not use this device near water, or moisture for indoor use only.
- This product should only be operated from the type of power source indicated on the label.
Part Definition
1.) Dimmer I/O socket - connect to adapter or light bar (bi-directional)
2). Sensor area - sensing region for on/off or dimming control
Recommended Power Supply:
CPS-24VDC-48W (24VDC/2A/48W) Max 40W or 11.8ft (360cm) of LBFA LuxBar series Light Fixtures
CPS-24VDC-48W (24VDC/2A/48W) Max 40W or 11.8ft (360cm) of LBFA LuxBar series Light Fixtures
Operating Voltage:
DC 24V±5%
DC 24V±5%
Operating Description

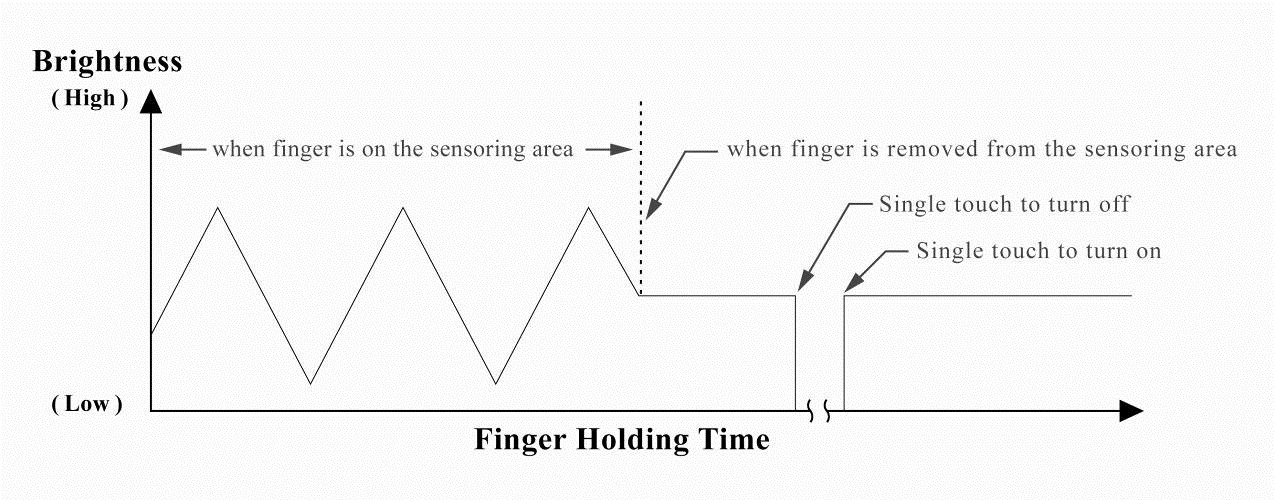

On/Off: Use your finger to touch the sensor area shortly.
Dimming:
Continue to hold the finger on the sensor area, it will dim the light bar brightness
Brightness Setting Memory: The previous selected brightness is stored until power is removed from the dimmer
System Configuration
Mini dimmer can be installed at any place in a light bar chain or network. Several scenarios are illustrated below.

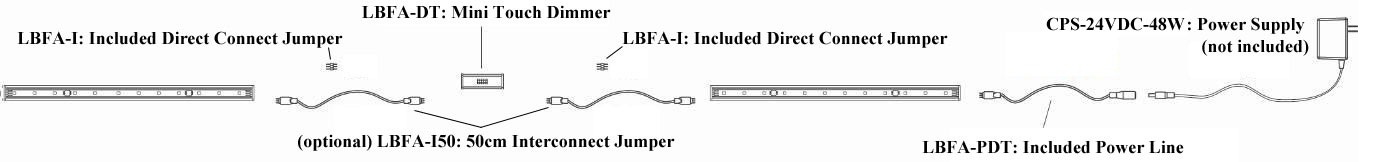

Scenario 1: Dimmer at the end of a chain

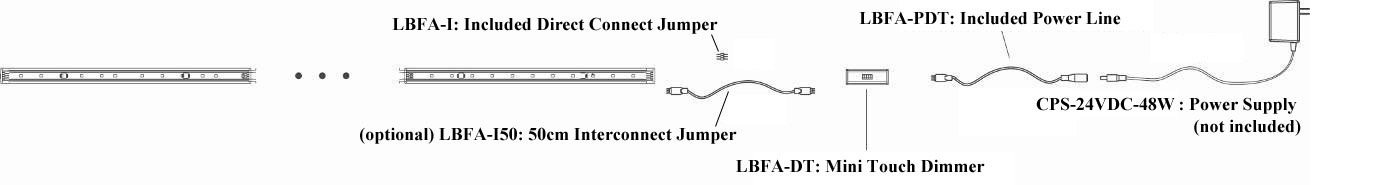

Scenario 2: Dimmer at the middle of a chain

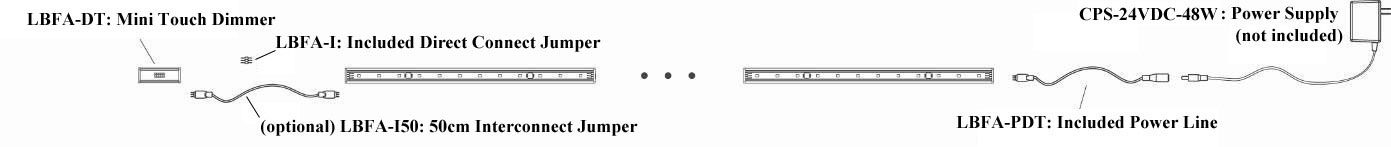

Scenario 3: Dimmer at the beginning of a chain

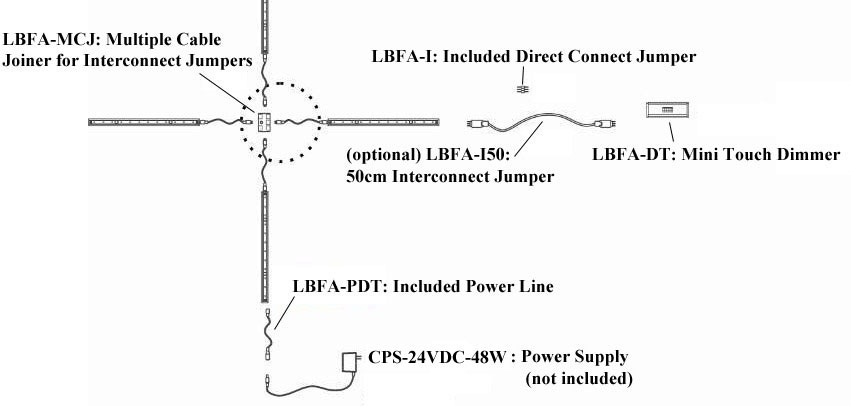

Scenario 4: Dimmer at a branching of a network
Installation Guide
Step 1: Refer to section IV and configure the preferred dimmer position
Step 2: Connect dimmer to the light bar or adapter with corresponding cables or accessories.
Step 3: Use the specific power line included with kit to connect the adapter when a mini dimmer is installed in a light bar chain or network.
Step 4: Plug in the power (adapter) to AC line.
