Philips 28W ED75 LED Glass HID Lamp - E26 Base - 70W MH Equivalent - 4,000 Lumens - 3000K / 4000K / 5000K
Part Number:
28GC-LED-8x-ND E26 BB 6-1
Manufacturer Part Number:
Starting at
$59.99
ea. (per Bulb)
Starting at
Was
In Stock
Features
- ED75 bulb with aluminum E26 medium screw base
- Type-B ballast bypass
- 70W metal-halide bulb equivalent
- 142 lm/W efficacy
- UL Listed and UL Classified
Overview
Philips 28W LED Glass HID Lamps are an energy-efficient choice over traditional 70W metal-halide bulbs. Each bulb emits 4,000 lumens of light from a frosted glass lens in uniform 300-degree x 360-degree coverage. The bulbs are available in either 3000K, 4000K, or 5000K to suit your application. These E26 medium screw base bulbs are a Type-B bypass design eliminating future ballast failure issues for long-lasting, reliable performance. The existing ballast must be removed before installation. These bulbs offer a reliable, long-lasting brightness while also saving you money on energy costs.
Product Details:
- Sturdy aluminum base with frosted white glass lens
- E26 medium screw base
- 300-degree x 360-degree beam angle
- UL Listed and UL Classified
- 3-year warranty
Documents
46677578879 28GC-LED-830 Specification Sheet
46677578879 28GC-LED-830 IES File Applications:
- Cobra Heads
- High Bays
- Low Bays
- Parking Lots
- Post Tops
- Street Lights
- Wall Packs
- Warehouses
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Need help?

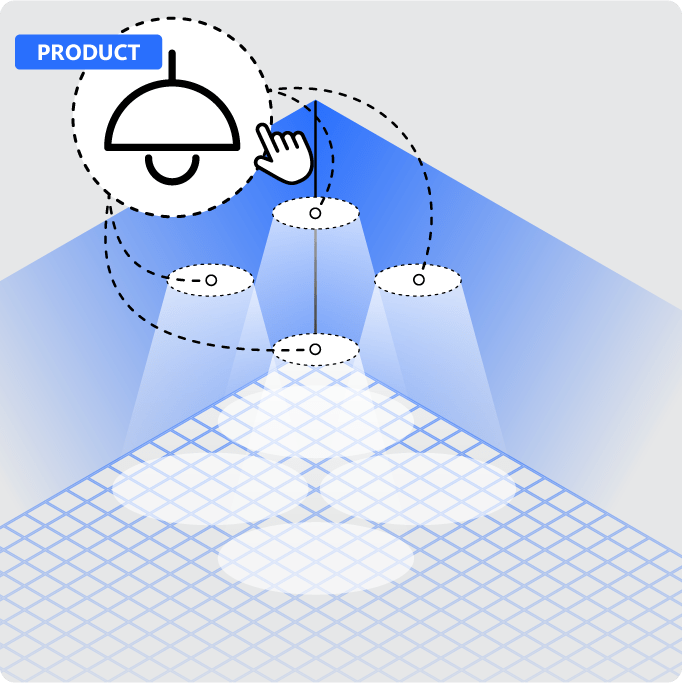

Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Ballast Compatibility | Type B (Ballast Bypass) |
| Base Type | E26 (Medium Base) |
| Beam Angle | 300° x 360° |
| Brand | Philips |
| Bulb Type | ED75 |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
UL Classified (cULus), UL Listed (cULus) |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
235 mA @ 120 VAC, 100 mA @ 277 VAC |
| Dimmable | No |
| Efficacy | 142 lm/W |
| Equivalency | 70 Watt Metal Halide |
| Rated Life (L70) | 25000 Hours |
| Lens Color | Frosted |
| Lens Type | Glass |
| Lumens | 4000 Lumens |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Base, Glass Lens |
| UL File Number | E343253, E364159 |
| Warranty | 3 Year |
| Wattage | 28 Watts |
| Part NO |
CCT
CCT
|
LED Color | Manufacturer Part Number |
|---|---|---|---|
| 46677578886 | 4000K | Natural White | 28GC/LED/840/ND E26 BB 6/1, 929003508104 |
| 46677578893 | 5000K | Cool White | 28GC/LED/850/ND E26 BB 6/1, 929003508204 |
