Name: LED DMX 512 Decoder - 8 Amp 3 Channel - Digital Display - DMX2-3CH-8A
Brand: Super Bright LEDs
SKU: DMX2-3CH-8A
Price: 39.99 USD
Availability: InStock

Overview

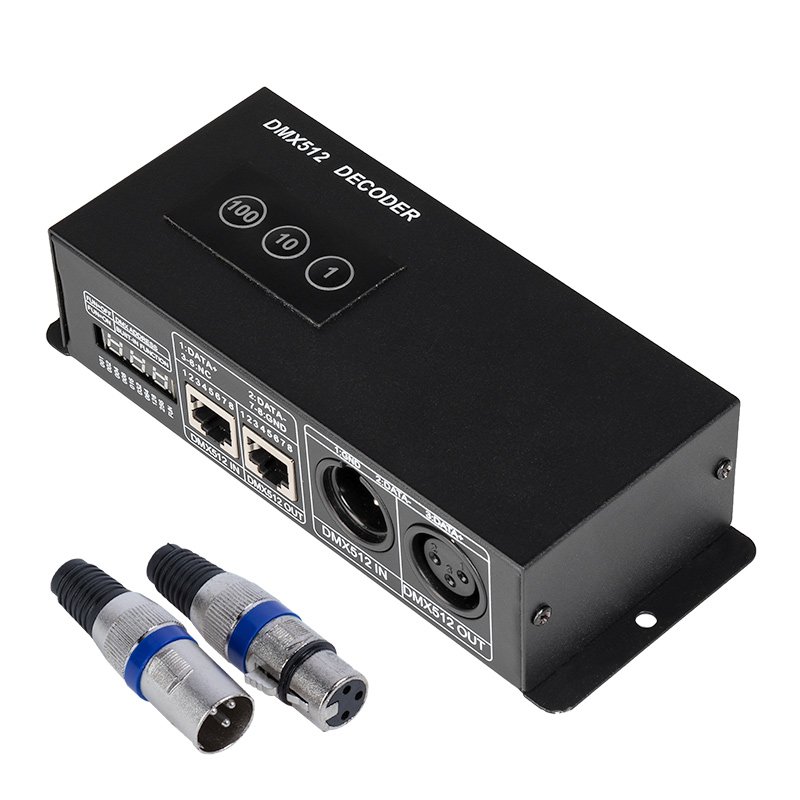

This DMX 512 decoder can control up to 3 different single-color 12-24 VDC LED products or any 1 RGB LED light bar or strip. The decoder can run in stand-alone mode using address code buttons or under DMX512 digital control signals using XLR-3 or RJ45 DMX512 input/output interfaces. The DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by a DMX512 console. The decoder allows for 256 brightness levels. Maximum load is 8 amps per channel. Includes male and female 3-pin XLR connectors.

Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Specifications

Amps	8 Amps
Amps Per Channel	8 Amps/CH
Channels	3 Channels
Control Type	DMX512
DMX In/Out	RJ45, XLR3
Input Connection Type	Screw Terminals
IP Rating .	IP20
Operating Temperature	-40~+85 °C (-40~+185 °F)
Voltage	12-24 VDC

Print Specifications
