Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.
8ft T8/T12 LED Tube - 2 4-foot Sections - 36W - 4860 Lumens - Dual End Ballast Bypass Type B - 75W Equivalent - 5000K - Cool White
Part Number:
T12B-50K36W-8S
Manufacturer Part Number:
Discontinued
Features
- Type B ballast bypass dual-ended wiring
- Quick connect 2-piece 4’ tubes
- Designed for economic shipping
- Includes G13, FA8, or R17D adapters
- Replaces 75W fluorescents
- UL Classified
- 5-year warranty
Related Products
Overview

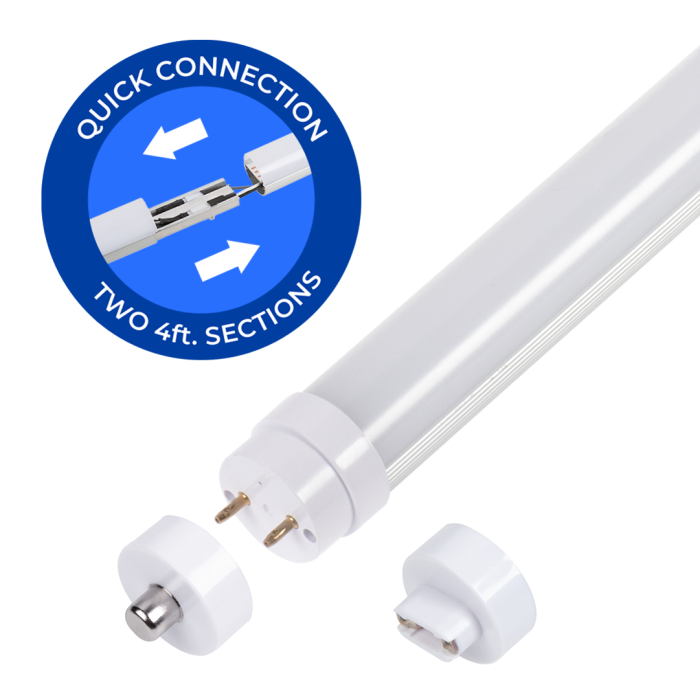

This T8/T12 LED Type B Tube makes replacing fluorescent tubes easier and safer with a two-piece design, two manageable 4’ sections that quickly connect instead of a long breakable 8’ piece. The completed bulb secures with a magnetic clamp for additional support. It is dual-ended with multiple base adapters, conveniently installed in old fixtures bypassing the ballast. The frosted shatterproof lens emits comfortable, smooth illumination, while the aluminum frame is durable and lightweight. Upgrade warehouse and office lighting with this flicker-free, energy-efficient tube.
Product Details:
- Type A also available
- G13 dual ended with FA8 and R17D adapters
- Frosted polycarbonate lens
- Rated for open or enclosed fixtures
- IP20 rated for dry/damp locations
- 5000K color temperature
- 50,000-hour (L70) rated life
- UL Classified (UL 1598C)
- 5-year warranty
Documents
T12B User Manual Applications:
- Commercial Buildings
- Factories
- Hospitals
- Industrial Facilities
- Offices
- Schools
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. UL tests specific properties of product samples to ensure that they adhere to applicable UL requirements, Standards for Safety, and other national and international organization's standards.
Specifications
|
Ballast Compatibility
Ballast Compatibility
|
Type B (Ballast Bypass) |
|---|---|
| Base Type | FA8, G13 (Medium Bi-Pin), R17D |
| Beam Angle | 120° |
| Brand | Super Bright LEDs |
| Bulb Type | T8, T12 |
|
CCT
CCT
Correlated Color Temperature (CCT) can be defined as the color of white light a light source is emitting. CCT is measured in Kelvin (K). The different color temperatures along the Kelvin scale correlate with different shades of white light, all of which impact how an individual perceives the space. LED lights are typically grouped into 3 different color temperatures: warm white, natural white, and cool white. Warm white gives off a yellow shade of light, natural light closely resembles the color of light given off from the sun, and cool light has a slightly blue tint to it. |
5000K |
| Comparable Wattage | 1-lamp 75W T8/T12 Tube |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
The current draw of your lights is calculated using the amount of power your light needs (wattage) and system voltage using the following formula: Watts/Volts = amps or W/V = amps.
An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to1 A. Choosing LED bulbs with the correct amperage ensures proper operation and prevents damage to your electrical system or the bulbs. See your vehicle owner's manual for amperage, wattage, and voltage information, or match the information on your existing bulbs. |
300 mA |
| Dimmable | No |
| Efficacy | 135 lm/W |
| Enclosed Fixture Rated | Yes |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Cool 5000K |
| LED Lifetime | 50000 Hours |
| LED Tube Wiring | Dual Ended |
| Length | 96 in. (8 ft) |
| Lens Color | Frosted |
| Lens Type | Polycarbonate |
| Lumens | 4860 Lumens |
| Material | Aluminum, Polycarbonate |
| Operating Temperature | -20 to 40 °C (-4 to 104 °F) |
| Wattage | 36 Watts |
| Reference Number | G13 (Bi-Pin) |
|
Standards And Certifications
Standards And Certifications
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application.The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here. |
UL Classified |
| UL File Number | E348221 |
| Voltage | 120-277 VAC |
| Warranty | 5 Year |
