Name: 7507 (PY21W) CAN Bus LED Bulb - 30 SMD LED Tower - BAU15S Bulb
Brand: Super Bright LEDs
SKU: BAU15S-x30-CBT-CAR
Price: 8.99 USD
Availability: InStock
Rating: 3.2 (47 reviews)

Overview

Description

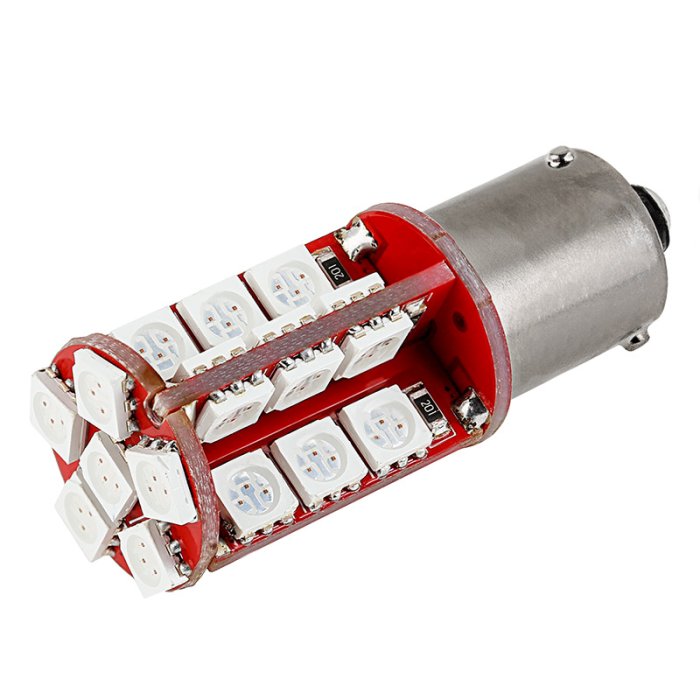

CAN Bus LED replacement bulbs can fit vehicle tail lights, brake lights, reverse lights, turn signals, or side marker lights. This 7507 (PY21W) single-contact bulb has 30 LEDs (5050 SMD) that create a 360° viewing angle for better, allover light emission with reduced hot spots. The error-free LED bulb is designed to communicate with your vehicle's CAN Bus computer system and prevent "bulb out" error messages. Tower-style design with a 15-mm BAU15S bayonet base and 150° offset locking pins. Easy plug-and-play installation—just twist to lock in place. The energy-efficient bulb operates with in a 10-14.8V DC range and is designed to last 30,000 hours on your car, truck, SUV, or van—25 times longer than incandescent bulbs. Available in amber, deep amber, cool white, and red. Deep amber color is ideal for housings with clear lenses. Not sold in pairs. Price per bulb.

Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Specifications

Base Type	BAU15s (Single Contact Offset Bayonet)
Beam Angle	360°
Brand	Super Bright LEDs
CAN Bus CAN Bus LED bulbs are simple plug-and- play LED bulbs which are made specifically for CAN Bus-equipped vehicles. These bulbs work with your vehicle's advanced computer system, so when your vehicle's computer reads them, they respond back correctly. To see if your vehicle operates with a CAN Bus system, simply remove the bulb you're looking to replace, start your vehicle, and if you have a "Bulb Out" message on your dash you have a CAN Bus system.	Yes
Comparable Wattage	10-15 Watt Incandescent
LED Lifetime	30000 Hours
LED Quantity	30 LEDs
LED Type	5050 SMD
Operating Temperature	-35~+85 °C (-31~+185 °F)
Oversize	No
Polarity Sensitive Polarity Sensitive (YES) Bulbs have Plus and Minus (like batteries) and will only work when polarity is correct. If bulb does not work when installed, turn it around in the socket. Polarity Sensitive (NO) Bulbs do not have Plus and Minus and will work either way installed in the socket.	Yes
Reference Number	BAU15S
Stock Numbers	7507, 1056, 12496, 5009, 7507LL, 7507AST, PWY24WSV
Voltage	10-14.8 VDC

Print Specifications

Part NO	CCT Value CCT Value	Current Draw	Efficacy	LED Color	Lumen	Power Consumption
BAU15S-A30-CBT		330 mA	31 lm/W	Amber	77 Lumens	4.5 Watts
BAU15S-A30-CBT-2PK		330 mA	31 lm/W	Amber	93 Lumens	4.5 Watts
BAU15S-CW30-CBT	6500K	330 mA	31 lm/W	Cool 6500K	140 Lumens	4.5 Watts
BAU15S-CW30-CBT-2PK	6500K	330 mA	31 lm/W	Cool 6500K	140 Lumens	4.5 Watts
BAU15S-R30-CBT		320 mA	21 lm/W	Red	90 Lumens	4.3 Watts
BAU15S-R30-CBT-2PK		320 mA	21 lm/W	Red	90 Lumens	4.3 Watts

Comparing Lumens Across Colors: Why Do Colored Bulbs Have Such Low Lumen Values

Lumen meters are a great way to measure white light output but can be deceptive for colored bulb intensity. Lumens measure light wavelengths in all colors of the visible spectrum. Because multiple wavelengths create white light and colored bulbs are a single-wavelength source, colored bulbs will have lower lumen readings. However, they will appear equally as bright as a white bulb.

Accessories & Power Supplies

All Accessories

Installation Supplies

Load Resistors

Flashers & Relays

Bulb Sockets

Accessories Links

Accessory Category

Accessory Type:

$4.95 ea.

LED Light Load Resistor Kit - LED Turn Signal Hyper Flash & Warning Fix Part Number: RL-650-K-x
In stock

6 Ohm, 50 Watt load resistor kit. Solves common LED turn signal problems with hyperflashing and bulb out warning indicators. Connect one across each LED turn signal bulb to simulate filament Tail/Turn signal bulbs.

View Installation Diagram & Instructions [PDF]. Mount the resistor away from painted surfaces, plastic, or other components that may be damaged by the heat generated by the resistor.

$1.99 ea.

BA15 Bayonet Base Sockets - Wired Part Number: BA15x-SW
In stock

Replacement BA15 sockets accept 15-mm bayonet base bulbs. Socket fits single-contact single-filament (BA15S) 1156 bulbs, dual-contact dual-filament (BAY15D) 1157 bulbs or dual-contact single-filament (BA15D) 1142 bulbs. Durable construction with 6” power wires. Mounting holes (spaced 1-1/4” apart) let you secure the socket in place. Price per socket.
$2.99 ea.

BA15 Bayonet Base Sockets - Wired Part Number: BA15x-SW2
In stock

Replacement BA15 sockets accept 15-mm bayonet base bulbs. Socket fits single-contact (BA15S) 1156 bulbs or dual-contact dual-filament (BAY15D) 1157 bulbs. Durable construction with 4-1/2” power wires. Price per socket.
