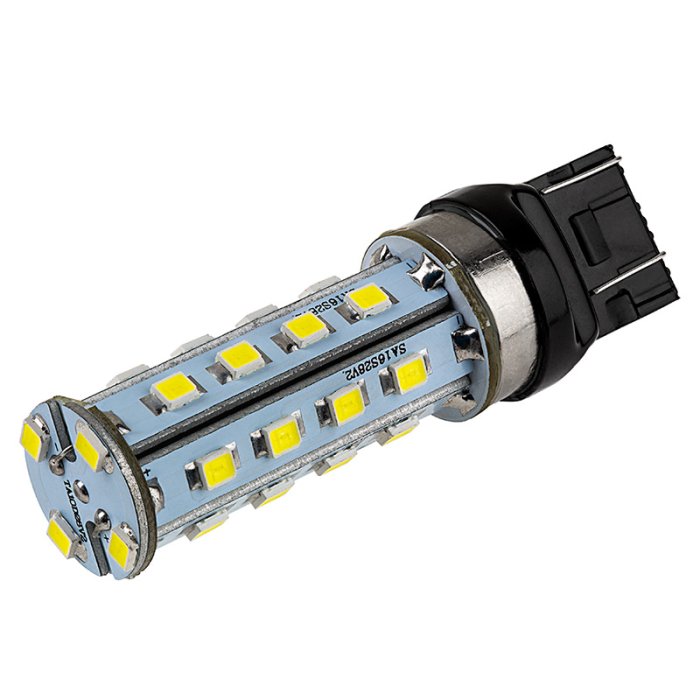

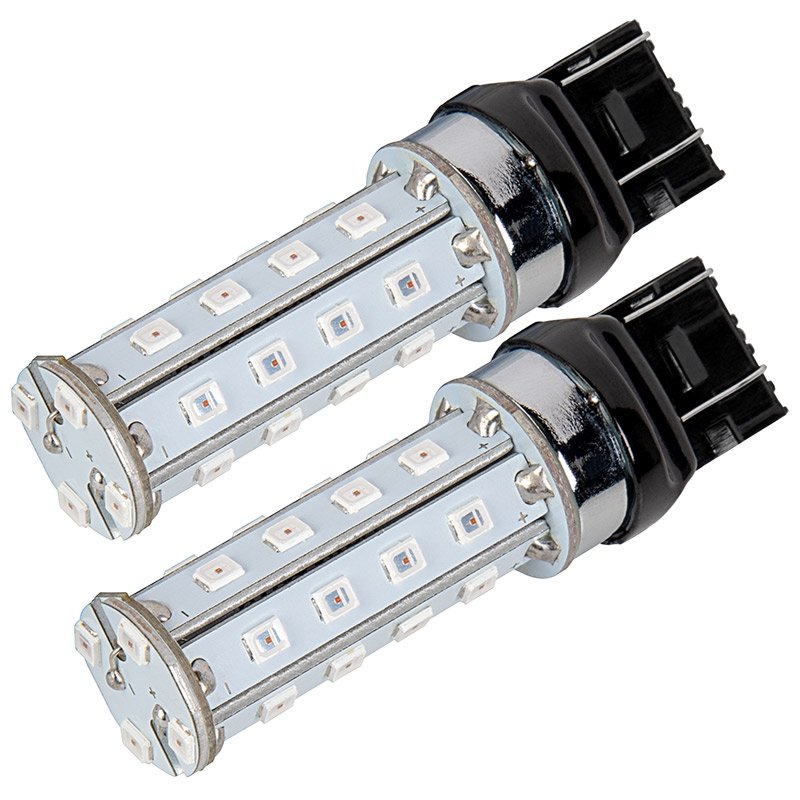

7443 LED Bulb - Dual Function 28 SMD LED Tower - 2 Pack
Part Number
7443-AHP28-T-2PK
Overview
LED replacement bulbs can fit vehicle tail lights, brake lights, reverse lights, turn signals or side marker lights. This 7443 dual-contact, dual-function bulb has 28 LEDs (0.5-watt SMD) that create a 360° viewing angle for better, allover light emission with reduced hot spots. Tower-style design with a 16-mm wedge base for easy plug-and-play installation. The energy-efficient bulb operates with in a wide 9-14.8V DC range and is designed to last 30,000 hours on your car, truck, SUV, or van—25 times longer than incandescent bulbs. Available in cool white, natural white, amber, and red. Not sold in pairs. Price per bulb.
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More
Info Center
News, Tips, Tutorials
LED Automotive Bulbs
Easy and Effective Vehicle Lighting Upgrades.
Finding the Right Replacement Bulb
Whether you're searching for replacements for burned-out bulbs...
CAN Bus LED Bulbs - FAQ
You may have seen CAN bus bulbs on our website and were unsure of what that meant or if they were compatible...
How to Fix Hyper Flashing for LED Turn Signal Lights
Hyper flashing is where your LED turn signals blink faster than your stock incandescent bulbs did.
Specifications
| Base Type | W3x16d (Double) |
|---|---|
| Beam Angle | 360° |
| Brand | Super Bright LEDs |
| CAN Bus | No |
| LED Quantity | 28 LEDs |
| LED Type | 0.5W SMD |
| Oversize | Yes |
| Polarity Sensitive | No |
| Reference Number | 7443 |
| Voltage | 9-14.8 VDC |
Swipe left to see additional specifications
| Part NO | CCT Value CCT Value | Current Draw | Efficacy | Color Options | Lumen | Power Consumption | Stock Numbers |
|---|---|---|---|---|---|---|---|
| 7443-AHP28-T | 0.07A (70mA), 0.29A (290mA) | Amber | 100 Lumen, 360 Lumen | 3.4 Watts | 7443, 7444NA, 7444LL, 7443LL, 7442NALL, 7443ST, 7443ULL, 7444NAP | ||
| 7443-AHP28-T-2PK | 0.07A (70mA), 0.29A (290mA) | Amber | 100 Lumen, 360 Lumen | 3.4 Watts | 7443, 7444NA, 7444LL, 7443LL, 7442NALL, 7443ST, 7443ULL, 7444NAP | ||
| 7443-RHP28-T | 0.06A (60mA), 0.26A (260mA) | Red | 45 Lumen, 185 Lumen | 2.4 Watts | 7443, 7444NA, 7444LL, 7443LL, 7443ST, 7443ULL, 7444NAP | ||
| 7443-RHP28-T-2PK | 0.06A (60mA), 0.26A (260mA) | Red | 45 Lumen, 185 Lumen | 2.4 Watts | 7443, 7444NA, 7444LL, 7443LL, 7443ST, 7443ULL, 7444NAP | ||
| 7443-WHP28-T | 5700K | 0.06A (60mA), 0.28A (280mA) | 107 lm/W | Cool 5700K | 75 Lumen, 550 Lumen | 4.5 Watts | 7443, 7444NA, 7444LL, 7443LL, 7443ST, 7443ULL, 7444NAP |
| 7443-WHP28-T-2PK | 5700K | 0.06A (60mA), 0.28A (280mA) | 107 lm/W | Cool 5700K | 75 Lumen, 550 Lumen | 4.5 Watts | 7443, 7444NA, 7444LL, 7443LL, 7443ST, 7443ULL, 7444NAP |
Comparing Lumens Across Colors: Why Do Colored Bulbs Have Such Low Lumen Values
| Lumen meters are a great way to measure white light output but can be deceptive for colored bulb intensity. Lumens measure light wavelengths in all colors of the visible spectrum. Because multiple wavelengths create white light and colored bulbs are a single-wavelength source, colored bulbs will have lower lumen readings. However, they will appear equally as bright as a white bulb. |  |
 |
 |
|---|
