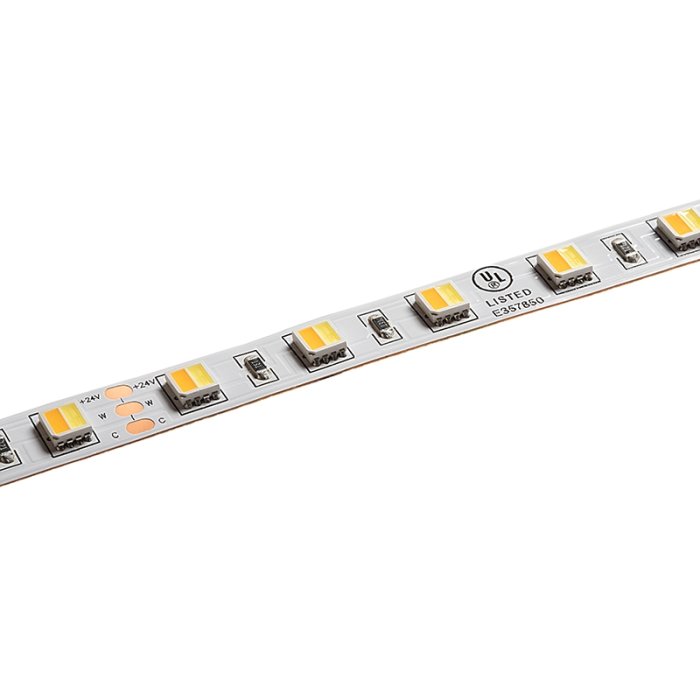

5m Tunable White LED Strip Light - LED Tape Light - 24V - IP20 - Tunable White - 196.9in (16.40ft)
Part Number:
STN-H80-A6A-10B5M-24V
Manufacturer Part Number:
$99.99
ea.
Was
In Stock
Frequently Bought Together
Total Price:
Loading...
Related Products
Overview
This flexible LED strip light combines warm white and cool white LEDs into a single node for seamless blending and purest white tones. Adjust color temperature with precision and ease. Peel-and-stick 3M™ adhesive backing enables fast, easy mounting. Backed by a lifetime warranty.
Product Details:
- 24 VDC input
- Maximum run up to 6.5m
- 18 LEDs/ft
- Strip width measures 10mm
- 3M™ adhesive backing for surface mounting
- Pigtail connection
- 0-100% dimmable
- CE certified and UL listed
- Lifetime warranty
STN-H80-A6A-10B5M-24V Specification Sheet Applications:
- Accent Lighting
- Backlighting
- Bias Lighting
- Cove Lighting
- Display Cases
- Off Grid Lighting
- Retail Shops
- Task Lighting
- Trade Shows
- Under-Cabinets
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Tunable White
Tunable White bulbs and strips allow users to adjust the color temperature of the light output, ranging from warm to cool white, to suit different settings and preferences. This adjustability is achieved by mixing different proportions of white LEDs with varying color temperatures within a single fixture.
LED Strip Light FAQs
What is color temperature? Which one is best?
What LED strip light accessories do I need?
The only thing you need for certain to power a strip light is a power supply. We offer accessories used for installation, such as connectors and aluminum mounting channels. As well as others that add functionality such as such as dimmers, switches, and remote controls. Complete kits are also offered which include everything you need to get started.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Certifications/Compliance | CE, UL Listed |
|
Color Temperature
Color Temperature
 Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. |
Tunable CCT |
| CRI | 80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
2.9 A |
|
Current Draw per Foot
Current Draw per Foot
Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).
|
175mA |
| Dimmable | Yes |
| Dimmer Type | PWM |
| Efficacy | 80 lm/W |
|
Environmental Rating
Environmental Rating
 |
Non-weatherproof, Suitable for Dry Locations |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
 |
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Color | Tunable CCT |
| LED Density | 18 LEDs/ft |
| LED Chip Type | 5050 SMD |
| LEDs per Segment | 6 |
| Length | 16.4 ft (5 m) |
| LED Lifetime | 50000 Hours |
| Lumens Per Foot | 335 lm/ft |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.   |
21.3 ft (6.5 m) |
| Minimum Cut Length | 100mm (3.9in) |
| Operating Voltage | 24 VDC |
| Series | DynamicColor |
| Strip Width | 10mm (0.39in) |
| Wattage | 69 Watts |
| Wattage per Foot | 4.2 W/ft |
| Wire Length | 19.2 in. |
