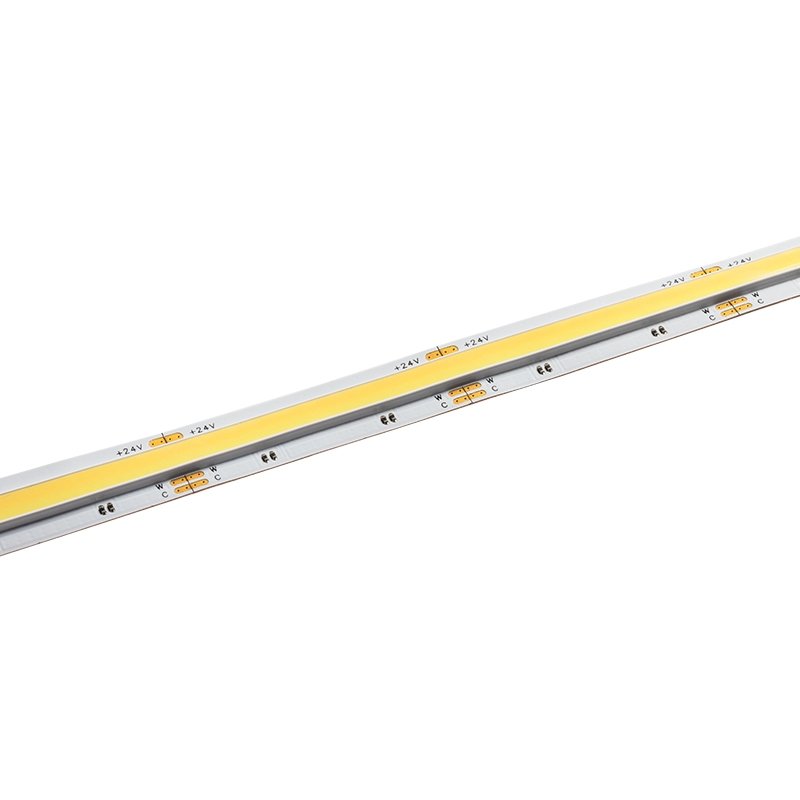

5m Tunable White COB LED Strip Light - COB Series LED Tape Light - 24V - IP20

5m Tunable White COB LED Strip Light - COB Series LED Tape Light - 24V - IP20

Part Number
STN-H90-O42A-12Q5M-24V

Features

  • COB LEDs create seamless line of light - no visible hotspots
  • Tunable range of color temperatures from cool to warm white
  • Flexible, cuttable, 3M™ adhesive-backed design for convenient install
  • High density of 307 LEDs/ft
View more details
In Stock
$199.99 ea.

Free Shipping: On orders $300 and up. Flat rate shipping for other qualifying orders. Learn More⇒

Loading...

Overview

COB series LED Strip Light uses chip-on-board technology to create continuous tunable white lighting. The high density of LEDs produces a seamless linear light without the need of a diffused cover. Dotless illumination is ideal for reflective surfaces such as granite countertops, tile floors, and more. The tunable white is also helpful for environments requiring circadian rhythm lighting, such as hospitals and care facilities. Pair with a controller (sold separately) to select from a range from cool to warm white, or changing pattern.
Product Details:
  • 3M™ adhesive backing for surface mounting
  • Max Run: 16.4ft (5m)
  • Strip width measures 12mm
  • 0-100% dimmable
  • 180° beam angle
  • 3-wire pigtail connection
  • Cuttable segment length: 1.64 in. (41.65 mm)
  • UL Listed
  • 5 year warranty
UL Listed
UL Listed
5 Years
5 Years
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

  • Displays
  • Light Design
  • Stage & Theaters
  • Toe Kicks
  • Accent Lighting
  • Off Grid Lighting
  • Coves
  • Under-Cabinets
  • Bias Lighting

Specifications

Ambient Operating Temperature -20~+40 °C (-4~+104 °F)
Brightness 396 lm/ft
CCT Value 2700-6500K
Certifications/Compliance UL Listed
Color Temperature Tunable CCT
CRI 90+
Current Draw 3.58A (3580mA)
Current Draw per Foot 218mA
Dimmable Yes
Efficacy 83 lm/W
Environmental Rating Non-weatherproof, Suitable for Dry Locations
Finish White
IP Rating IP20
LED Beam Angle 180°
LED Density 307 LEDs/ft
LED Type COB (chip-on-board)
LEDs per Segment 42
Length 16.4ft (5m)
Max Run (Class 2) Up to 16.4ft (5m)
Minimum Cut Length 41.65mm (1.64in)
Operating Voltage 24 VDC
Power Consumption 86 Watts
Rated Life (L70) 30000 Hours
Series COB
Strip Width 12mm (0.47in)
Wattage per Foot 5.3 Watts
Wire Length 18.5in(47cm)
