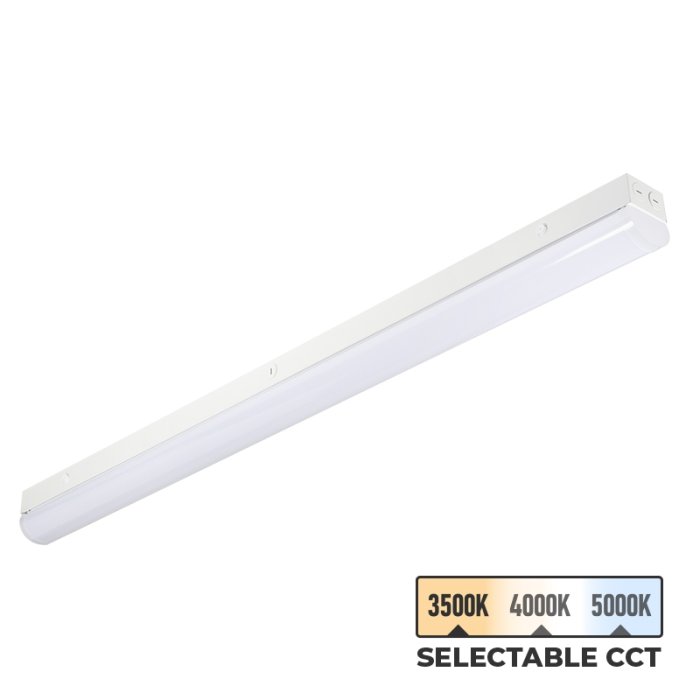

40W Selectable CCT Strip Light Fixture - LED Shop Light - 4' Long - 5400 Lumens - 3500K/4000K/5000K

40W Selectable CCT Strip Light Fixture - LED Shop Light - 4' Long - 5400 Lumens - 3500K/4000K/5000K - LSFD-SW3C40W-H

brand logo
Part Number
LSFD-SW3C40W-H

Discontinued

We have discontinued this product permanently. Please find suggested replacement products from below section.

Features

  • 4ft selectable CCT strip fixture is ideal for a range of applications: residential, commercial, or industrial
  • Field selectable CCT options contained in one fixture: 3500K, 4000K, 5000K
  • Tool-less access to wiring compartment and mounting holes with lens-release button
  • High efficacy of up to 135 lm/W - Up to 5400 lumens at only 40W
  • 120-277 VDC - universal input voltage for wide application range
View more details

Similar Products

Overview

LSFD series Selectable Strip Light Fixture has convenient and versatile features to fit a wide range of residential, commercial, and industrial environments.The field-selectable CCT slide switch allows installers and users to choose between 3500K, 4000K, and 5000K. Construction is both durable and lightweight, with a white steel body rated for use in damp locations. Frosted round linear lens matches the style of traditional single fluorescent fixtures, while distributing instant-on, cold start, flicker and glare-free light. Ideal for any retrofit or new construction application that requires interior linear light, from basements and workshops, to healthcare facilities and commercial offices.
Product Details:
  • External Selectable CCT slide switch located on the side of the fixture
  • Maintains traditional fluorescent fixture appearance with improved LED performance
  • 6 total conduit knockouts - 1/2" trade size
  • Includes hardware for flush mount
  • Compatible with optional motion sensor (sold separately)
  • Suspension mount with optional hanging kit (sold separately)
  • 130° beam angle
  • Rounded diffuse lens shape for wide, glare-free, uniform light distribution
  • Through wiring design for end to end runs
  • 0-10V dimmable
  • 18 AWG pigtail power wires
  • Operational temperature: -4°–113° F (-20°–45° C)
  • Suitable for damp locations
  • 50000 hours (L70) lifespan
  • Certified by UL
  • 5 year warranty

Applications

  • Educational Facilities
  • Garages
  • Low Bays
  • Metal Buildings
  • Pole Barns
  • Retail Shops
  • Stairwells and Public Corridors
  • Utility Lighting
  • Warehouses
Certified by UL
Certified by UL
5 Years
5 Years
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
luxiflux tool image

Incorporate this product in your next project by using our Lighting Layout Tool.

Try it now
Use as a guide only—values are based on our own in-house testing. Contact us for additional information or to discuss your lighting needs.

Specifications

Beam Angle 130°
Brand Super Bright LEDs
CCT Value 3500K, 4000K, 5000K
Comparable Wattage 2-lamp 17W T8 Tubes
CRI 80+
Current Draw 140 mA @ 277 VAC, 330 mA @ 120 VAC
Dimmable Yes
Dimming Type 0-10V
Efficacy 135 lm/W
Environmental Rating Non-weatherproof, Suitable for Damp Locations
Fixture Type Standard Strip Fixture
Input Connection Type Pigtail
IP Rating IP20
LED Color Selectable CCT
LED Lifetime 50000 Hours
Length 48in (4ft)
Linkable No
Lumen 5400 Lumens
Material Polycarbonate Lens, Steel Body
Operating Temperature -20~+45 °C (-4~+113 °F)
Power Consumption 40 Watts
Power Factor ≥0.9
Product Weight 3.7 lb (1.7 kg)
Standards And Certifications Certified by UL
UL File Number E366643
Voltage 120-277 VAC
Warranty 5 Year
Print Specifications
