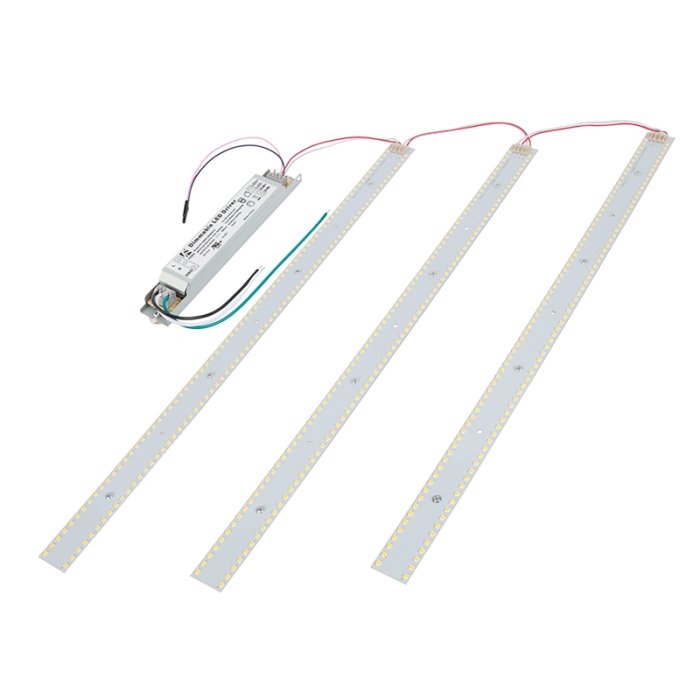

Components of the 40W LED magnetic strip troffer retrofit kit for 2x2 troffers

40W LED Magnetic Strip Troffer Retrofit Kit - 2x2 Troffer - Up To 5200 Lumens - Dimmable

brand logo
Part Number
MRKD-x22-40W

Features

  • Easiest and most versatile fluorescent bulb retrofit solution
  • Magnetic LED strips and driver attach directly to troffer or strip fixture
  • Bypass ballast - No tools needed to install
  • DLC 5.1 Standard (excluding 3000K)
View more details
In Stock
Only %1 left

$39.99 ea.
Request a Quote
Free Shipping
On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify

Frequently Bought Together
Total Price: $39.99

Overview

Description
This dimmable LED magnetic strip retrofit kit is designed to replace the ballast and tubes in 2' x 2' fluorescent troffers. Bright and powerful—the 40-watt LED retrofit kit emits up to 5200 lumens of warm, natural, or cool white light—equivalent to the output of 4 17-watt fluorescent T8 tubes. They're designed to last 5 times longer than fluorescent lights. The LED lights have magnets every 5” for secure mounting, and they operate on 100-277 VAC. A 0-10V dimmable constant-current driver is included, and brightness can be controlled with a 0-10V dimmer. This LED magnetic retrofit kit is perfect for homes, offices, schools, hospitals, and more!
DLC
DLC
Certified by UL
Certified by UL
5 Years
5 Years
80+ CRI
80+ CRI
0-10V Dimmable
0-10V Dimmable
IP20
IP20
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
IP Ratings

Specifications

Ambient Operating Temperature -20~+40 °C (-4~+104 °F)
Beam Angle 125°
Brand Super Bright LEDs
CRI 80+
Current Draw 140 mA @ 277 VAC, 330 mA @ 120 VAC
Dimensions 2ft
Dimmable Yes
Dimming Type 0-10V
Efficacy 130 lm/W
Environmental Rating Non-weatherproof, Suitable for Damp Locations
Equivalency 3-lamp 17W T8 Tubes
Finish White
Input Connection Type Pigtail
Integrated Surge Protection 1 kV (L-N), 2 kV (L/N-G)
IP Rating IP20
Rated Life (L70) 50000 Hours
Length 24 in. (2 ft)
Linkable No
Lumens 5200 Lumens
Microwave Motion Sensor None
Mount Type Magnetic Mount
Operating Voltage 120-277 VAC
Wattage 40 Watts
Power Factor ≥0.9
Product Materials Aluminum, Neodymium Magnet
UL File Number E348221, E366643
Warranty 5 Year
Wire Gauge 18 AWG
Print Specifications
Swipe left to see additional specifications
Part NO CCT Certifications/Compliance LED Color
MRKD-40K22-40W 4000K Certified by UL, DLC Natural White
MRKD-50K22-40W 5000K Certified by UL, DLC Cool White
