Name: 3157 LED Bulb - Dual Function 28 SMD LED Tower - Wedge Base
Brand: Super Bright LEDs
SKU: 3157-xHP28-T-CAR
Price: 7.99 USD
Availability: InStock
Rating: 4.6 (80 reviews)

Overview

Description

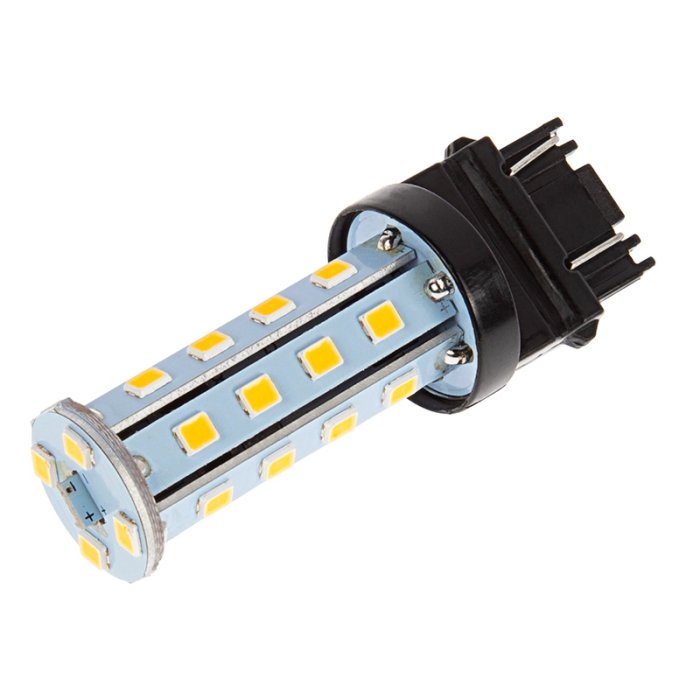

LED replacement bulbs can fit vehicle tail lights, brake lights, reverse lights, turn signals or side marker lights. This 3157 dual-contact, dual-function bulb has 28 LEDs (0.5-watt SMD) that create a 360° viewing angle for better, allover light emission with reduced hot spots. Tower-style design with a 16-mm wedge base for easy plug-and-play installation. The energy-efficient bulb operates with in a wide 9-14.8V DC range and is designed to last 30,000 hours on your car, truck, SUV, or van—25 times longer than incandescent bulbs. Available in cool white, natural white, amber, and red. Not sold in pairs. Price per bulb.

Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Specifications

Base Type	W2.5x16q (Double)
Beam Angle	360°
Brand	Super Bright LEDs
CAN Bus CAN Bus LED bulbs are simple plug-and- play LED bulbs which are made specifically for CAN Bus-equipped vehicles. These bulbs work with your vehicle's advanced computer system, so when your vehicle's computer reads them, they respond back correctly. To see if your vehicle operates with a CAN Bus system, simply remove the bulb you're looking to replace, start your vehicle, and if you have a "Bulb Out" message on your dash you have a CAN Bus system.	No
Comparable Wattage	55-60 Watt Incandescent
Dimmable	No
LED Quantity	28 LEDs
LED Type	0.5W SMD
Oversize	Yes
Polarity Sensitive Polarity Sensitive (YES) Bulbs have Plus and Minus (like batteries) and will only work when polarity is correct. If bulb does not work when installed, turn it around in the socket. Polarity Sensitive (NO) Bulbs do not have Plus and Minus and will work either way installed in the socket.	No
Reference Number	3157
Stock Numbers	3157, 3057, 3157K, 3157A, 3047, 3157NA, 3057K, 3357, 4114K, 4157K, 3155, 4157NAK, 3157NAK, 4057K, 3157KX, 3457AK, 3457NAK, 3057KX, 3157AK, 3757AK, 3047K, 3057A, 3457K, 4114KLCP, 3454NAK, 3357NAK, 3457AST, 3456K, 2358NA, 3057NA, 3357NA, 3157KLCP, 5702AK, 3757NAKLCP, 4157NAKLCP, 3057KLCP, L1230R-4C, 3457NAKLCP, 2358, 3357K, 3357A, 2458
Voltage	9-14.8 VDC

Print Specifications

Part NO	CCT Value CCT Value	Current Draw	Efficacy	LED Color	Lumen	Power Consumption
3157-AHP28-T		290 mA, 60 mA		Amber	100 Lumen, 360 Lumen	3.4 Watts
3157-AHP28-T-2PK		290 mA, 60 mA		Amber	100 Lumen, 360 Lumen	3.4 Watts
3157-NWHP28-T	4000K	290 mA, 60 mA	107 lm/W	Natural 4000K	110 Lumen, 425 Lumen	4.5 Watts
3157-NWHP28-T-2PK	4000K	290 mA, 60 mA	107 lm/W	Natural 4000K	110 Lumen, 425 Lumen	4.5 Watts
3157-RHP28-T		270 mA, 60 mA		Red	51 Lumen, 188 Lumen	3.1 Watts
3157-RHP28-T-2PK		270 mA, 60 mA		Red	51 Lumen, 188 Lumen	3.1 Watts
3157-WHP28-T	6500K	30 mA, 380 mA	107 lm/W	Cool 6500K	75 Lumen, 550 Lumen	4.5 Watts
3157-WHP28-T-2PK	6500K	30 mA, 380 mA	107 lm/W	Cool 6500K	75 Lumen, 550 Lumen	4.5 Watts

Comparing Lumens Across Colors: Why Do Colored Bulbs Have Such Low Lumen Values

Lumen meters are a great way to measure white light output but can be deceptive for colored bulb intensity. Lumens measure light wavelengths in all colors of the visible spectrum. Because multiple wavelengths create white light and colored bulbs are a single-wavelength source, colored bulbs will have lower lumen readings. However, they will appear equally as bright as a white bulb.

Accessories & Power Supplies

All Accessories

Flashers & Relays

Installation Supplies

Bulb Sockets

Load Resistors

Accessories Links

Accessory Category

Accessory Type:

$4.99 ea.

3156/3157 Wedge Base Sockets - Wired Part Number: 315x-SW
In stock

Replacement 3156 or 3157 sockets accept 16-mm wedge base bulbs. Socket fits single-contact 3156 bulbs or dual-contact dual-filament 3157 bulbs. Durable construction with 6” power wires. Price per socket.

$4.95 ea.

LED Light Load Resistor Kit - LED Turn Signal Hyper Flash & Warning Fix Part Number: RL-650-K-x
In stock

6 Ohm, 50 Watt load resistor kit. Solves common LED turn signal problems with hyperflashing and bulb out warning indicators. Connect one across each LED turn signal bulb to simulate filament Tail/Turn signal bulbs.

View Installation Diagram & Instructions [PDF]. Mount the resistor away from painted surfaces, plastic, or other components that may be damaged by the heat generated by the resistor.
