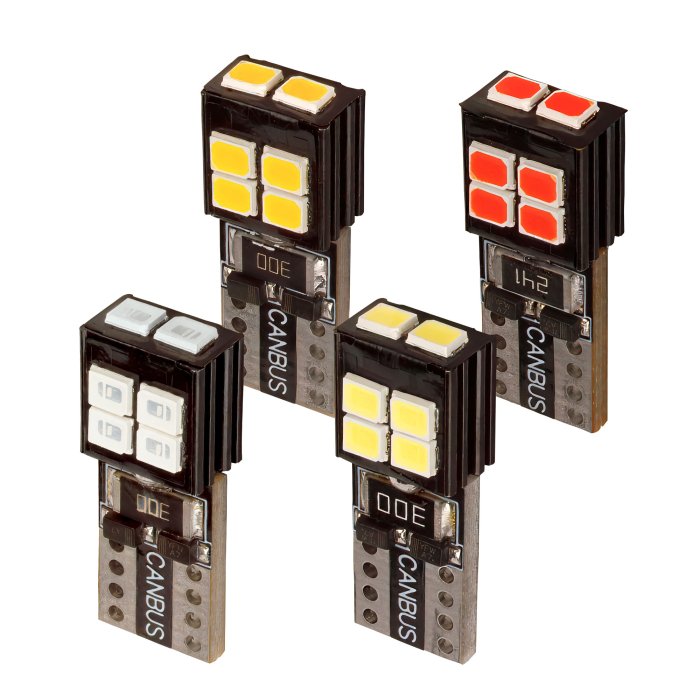

194 / 168 / T10 CANbus LED Bulb - 10 SMD LEDs - Mini Wedge - Cool White / Amber / Blue / Red
Part Number:
194-10SMD-x
Manufacturer Part Number:
Starting at
$3.99
ea.
Starting at
Was
| Quantity | |
|---|---|
Features
- Upgrades 194, 168, and T10 bulbs for interior and exterior applications
- CANbus compatible for error-free operation
- SMD LEDs increase efficiency, brightness, and lifespan
- 1:1 sizing for easy plug-and-play installtion
Overview
The 194 / 168 / T10 LED Bulb features a tower design that delivers 210 lumens with a 360° beam, providing even light distribution and reducing hot spots. Each bulb is CANbus compatible to prevent flickering and dashboard "bulb out" vehicle error codes. It offers easy plug-and-play installation with a standard miniature wedge base. This multi-purpose bulb is 12VAC compatible, operates on 12-14 VDC, and is ideal for replacing bulbs used for license plates, maps, domes, trunks, side markers, step-wells, parking, and door courtesy lights. They are available in singles, 10-pack, or 20-pack options.
Product Details:
- 30,000 hour lifespan
- Miniature Wedge Base (W2.1x9.5d)
- 150 mA at 12VDC
- 12VAC Compatible, 12-14 VDC
Info Center
News, Tips, Tutorials
LED Automotive Bulbs
Easy and Effective Vehicle Lighting Upgrades.
Finding the Right Replacement Bulb
Whether you're searching for replacements for burned-out bulbs...
CAN Bus LED Bulbs - FAQ
You may have seen CAN bus bulbs on our website and were unsure of what that meant or if they were compatible...
How to Fix Hyper Flashing for LED Turn Signal Lights
Hyper flashing is where your LED turn signals blink faster than your stock incandescent bulbs did.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -45~+105 °C (-49~+221 °F) |
|---|---|
| Base Type | W2.1x9.5d (Glass Wedge) |
|
Beam Angle
Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
360° |
| Brand | Super Bright LEDs |
|
CAN Bus
CAN Bus
CAN Bus LED bulbs are simple plug-and- play LED bulbs which are made specifically for CAN Bus-equipped vehicles. These bulbs work with your vehicle's advanced computer system, so when your vehicle's computer reads them, they respond back correctly.
To see if your vehicle operates with a CAN Bus system, simply remove the bulb you're looking to replace, start your vehicle, and if you have a "Bulb Out" message on your dash you have a CAN Bus system. |
Yes |
| Compatible Stock Number | 12961 (W5W), 168NA (168A), 194NA (194A), 2825 (W5W), 2825B (W5WB), 906NA (906A), 916NA (906A), 194, W5W, 921, 168, 912, 906, 161, 2827, 158, 175, 192, 922, 193, 579, 904, 2821, 658, 916, 194B, 194G, W10W, 2886X, 195, 3652, 161B, 194R, 558, 124, 917, 920, 904NA, T10, 12961, T15 |
| Current Draw | 150 mA |
| Efficacy | 117 lm/W |
| LED Lifetime | 30000 Hours |
| Lumens | 210 Lumens |
| Operating Voltage | 12-14 VDC |
| Oversize | No |
|
Polarity Sensitive
Polarity Sensitive
Polarity Sensitive (YES)
Bulbs have Plus and Minus (like batteries) and will only work when polarity is correct. If bulb does not work when installed, turn it around in the socket. Polarity Sensitive (NO) Bulbs do not have Plus and Minus and will work either way installed in the socket. |
No |
| Reference Number | 194/168/T10 |
| Standards And Certifications | CE |
| Warranty | 2 Year |
| Wattage | 2 Watts |
| Part NO | LED Color |
|---|---|
| 194-10SMD-A | Amber |
| 194-10SMD-A-10PK | Amber |
| 194-10SMD-A-20PK | Amber |
| 194-10SMD-B | Blue |
| 194-10SMD-B-10PK | Blue |
| 194-10SMD-B-20PK | Blue |
| 194-10SMD-R | Red |
| 194-10SMD-R-10PK | Red |
| 194-10SMD-R-20PK | Red |
| 194-10SMD-W | Cool 6500K |
| 194-10SMD-W-10PK | Cool 6500K |
| 194-10SMD-W-20PK | Cool 6500K |
