Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

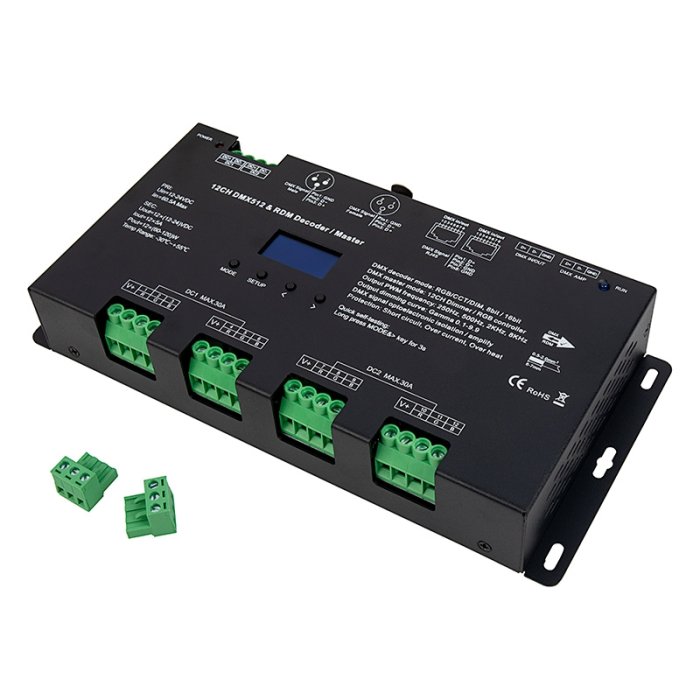

12 Channel LED DMX512 and RDM Decoder / Master - 5A/CH - 12-24V - OLED Display - DS-DMX125
Part Number:
DS-DMX125
Manufacturer Part Number:
Discontinued
Features
- 12 channels constant voltage output, Max. 5A current per channel, up to 1440W output power
- Master & decoder mode, RDM function
- DIM/CCT/RGB decoding mode selectable
- Pulse Width Modulation Frequency settable from 250–80000 Hz for a flicker-free performance
- Stand-alone RGB mode with 10 built-in programs, speed and brightness adjustable
- 12 VDC, 24 VDC
- 5 year warranty
Related Products
Overview
DS series 12 Channel DMX512 and RDM Decoder converts DMX and RDM signals to PWM for single color, CCT and/or RGB LED lighting products. It features both DMX decoder and master functions that are easy to switch between. RDM bi-direction communication enables the DMX console to detect and display decoder information and set DMX addresses. with a total of 12 channels, it allows a max of 5A and 120W per channel for controlling larger projects.
Selectable 16-bit (65536 levels) or 8-bit (256 levels) grey levels customize the smoothness of color fades. Choose between 4 PWM frequencies, with a maximum of 8000Hz, to reduce flicker and enhance quality for audiovisual applications. Settings and features are easily accessible with OLED display menus and operated with four control buttons. 3-pin XLR, RJ45, and green terminal DMX interface with photoelectric isolation and signal amplifier function improve signal transmission efficiency and anti-interference. Common anode screw-down terminals for connection to LED light strips or fixtures. The stand-alone function allows for easy testing, as well as control of RGB LEDs when no DMX signal is present. This feature includes ten built-in RGB programs with adjustable speed and brightness levels.
Selectable 16-bit (65536 levels) or 8-bit (256 levels) grey levels customize the smoothness of color fades. Choose between 4 PWM frequencies, with a maximum of 8000Hz, to reduce flicker and enhance quality for audiovisual applications. Settings and features are easily accessible with OLED display menus and operated with four control buttons. 3-pin XLR, RJ45, and green terminal DMX interface with photoelectric isolation and signal amplifier function improve signal transmission efficiency and anti-interference. Common anode screw-down terminals for connection to LED light strips or fixtures. The stand-alone function allows for easy testing, as well as control of RGB LEDs when no DMX signal is present. This feature includes ten built-in RGB programs with adjustable speed and brightness levels.
Product Details:
- Easy operation with an OLED display and four buttons
- PWM frequency 250/500/2000/8000Hz selectable
- 16bit (65536 levels) /8bit (256 levels) grey level selectable
- Output dimming curve gamma value 0.1-9.9 selectable
- Protects against over-heat, over-load, and short circuit
- 1-12 channel configuration
- Max load current: 60.5A
- 3-pin XLR, RJ45, and screw post green terminals
- DMX address selection OLED display
- Max output per channel: 60W at 12V or 120W at 24V
- Rated IP20 for dry locations
- RoHs, CE certificate, FCC
- 5-year warranty
Documents
DS-DMX125 User Manual
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Specifications
| Ambient Operating Temperature | -30 to 55 °C (-22 to 131 °F) |
|---|---|
| Amps Per Channel | 5 Amps/CH |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application.The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here. |
CE, FCC |
| Control Type | DMX512, RDM Decoder |
| DMX In/Out | RJ45, Screw Terminals, XLR3 |
| Input Voltage | 12-24 VDC |
|
IP Rating
IP Rating
|
IP20 |
| Max Input Current | 60.5 A |
| Number of Channels | 12 Channels |
| Output Current Draw per Channel | 5 A x 12 CH, max 60 A |
| Product Weight | 1.9 lb (0.9 kg) |
| Voltage | 12-24 VDC |
| Warranty | 5 Year |
