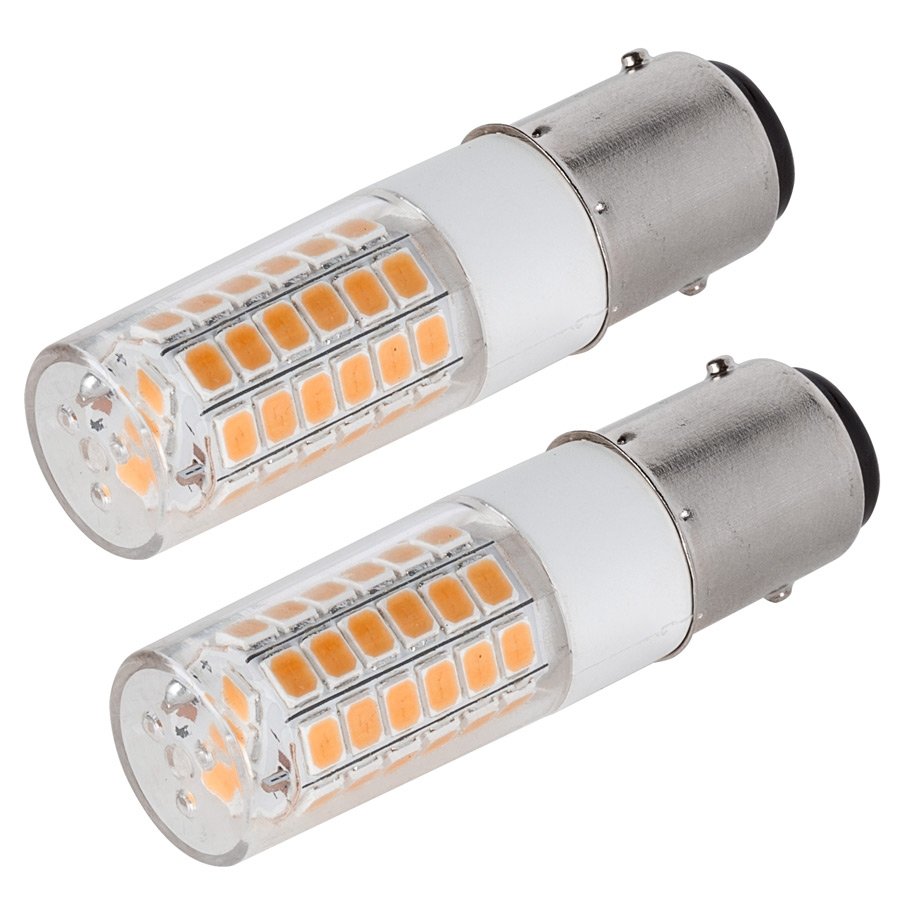

1157 LED Bulb - Dual Function 51 SMD LED Tower - BAY15D Retrofit

1157 LED Bulb - Dual Function 51 SMD LED Tower - 2 Pack

Part Number
1157-A51-PT-2PK

Features

  • Protective polycarbonate lens
  • 10-24 VDC operating range
  • Plug-and-play installation
View more details
In Stock
Starting at $6.95 ea.
Frequently Bought Together
Total Price: $11.90

Overview

This LED replacement bulb can fit vehicle reverse lights. The 1157 dual-contact, dual-function bulb uses powerful LEDs to emit up to 345 lumens of cool white illumination. LEDs are covered by a plastic lens. It has a tower-style design with a BAY15D 15-mm bayonet base for easy plug-and-play installation—just twist to lock in place. The energy-efficient LED bulb uses only 3 watts of power; an incandescent bulb with comparable light output would consume 30-35 watts. This 1157 LED bulb operates within a 10-24 VDC range and is designed to last 25 times longer than incandescent bulbs on your car, truck, van, or SUV. Price per bulb.
CE
CE
2 Years
2 Years
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. If the same product is no longer available, a product of equal value may be substituted. Read More

Applications

  • Turn Lights
  • Tail Lights
  • Brake Lights

Specifications

Base Type BAY15D (Index Double Contact Bayonet)
Beam Angle 300 degree
CAN Bus No
Comparable Wattage 35 Watt Incandescent
Current Draw 0.22A (220mA)
Efficacy 115 lm/w
LED Lifetime 30000 Hours
LED Quantity 51 LEDs
LED Type 2835 SMD
Lumen 345 Lumen
Operating Temperature -30~+55 °C (-22~+131 °F)
Oversize No
Polarity Sensitive Yes
Power Consumption 3 Watts
Reference Number 1157 (BAY15D)
Standards And Certifications CE, RoHS Compliant
Stock Numbers 1157, 2357, 2057, 7528, 1157A, 2357ALL, 1034, 3496, 198, 1157NA, 1157LL, 94, 2357NA, 2357LL, 1016, 2397, 2057A, 1157ALL, 1157ST, 2057NA, 2057ALL, 2057LL, 2057ST, 2397LL, 2357A, 1035, 7528L, 3496LL, 7528LL, 198LL, 1034NA, 1178A, 198NA, 1196, 1034A, 1034LL
Volts 10~24 VDC
Wattage 3 Watts
Print Specifications
Swipe left to see additional specifications
Part NO CCT Value Color Options
1157-A51-PT Amber
1157-A51-PT-2PK Amber
1157-CW51-PT 6500K Cool 6500K
1157-CW51-PT-2PK 6500K Cool 6500K
1157-NW51-PT 4000K Natural 4000K
1157-NW51-PT-2PK 4000K Natural 4000K
1157-R51-PT Red
1157-R51-PT-2PK Red
1157-WW51-PT 3000K Warm 3000K
1157-WW51-PT-2PK 3000K Warm 3000K

Accessories & Power Supplies

  1. FL2-RED LED Bulb Electronic Flasher

    $13.95 ea.

    FL2-RED LED Bulb Electronic Flasher - 2 Pin Red American Flasher and Bracket Part Number: FL2-RED-K
    In stock
    Pin Diagram
    FL2-RED-K Pin Diagram
    Legend
    • L = Load
    • + = 12V IN
    Description

    Electronic LED Flasher Relays have no minimum load-12VDC. Eliminates the need for load resistors, turn signals will flash at normal rate with or without LED bulbs.

  2. View all

    All Accessories

    1 additional compatible accessories

  1. FL2-RED LED Bulb Electronic Flasher

    $13.95 ea.

    FL2-RED LED Bulb Electronic Flasher - 2 Pin Red American Flasher and Bracket Part Number: FL2-RED-K
    In stock
    Pin Diagram
    FL2-RED-K Pin Diagram
    Legend
    • L = Load
    • + = 12V IN
    Description

    Electronic LED Flasher Relays have no minimum load-12VDC. Eliminates the need for load resistors, turn signals will flash at normal rate with or without LED bulbs.

  2. FL3-RED LED Bulb Electronic Flasher

    $13.95 ea.

    FL3-RED LED Bulb Electronic Flasher - 3 Pin Red American Flasher Part Number: FL3-RED-K
    In stock
    Pin Diagram
    FL3-RED-K Pin Diagram
    Legend
    • L = Load
    • + = 12V IN
    • P = Pilot Light Output
    Description

    Electronic LED Flasher Relays have no minimum load-12VDC. Eliminates the need for load resistors, turn signals will flash at normal rate with or without LED bulbs.

  1. View all

    Installation Supplies
