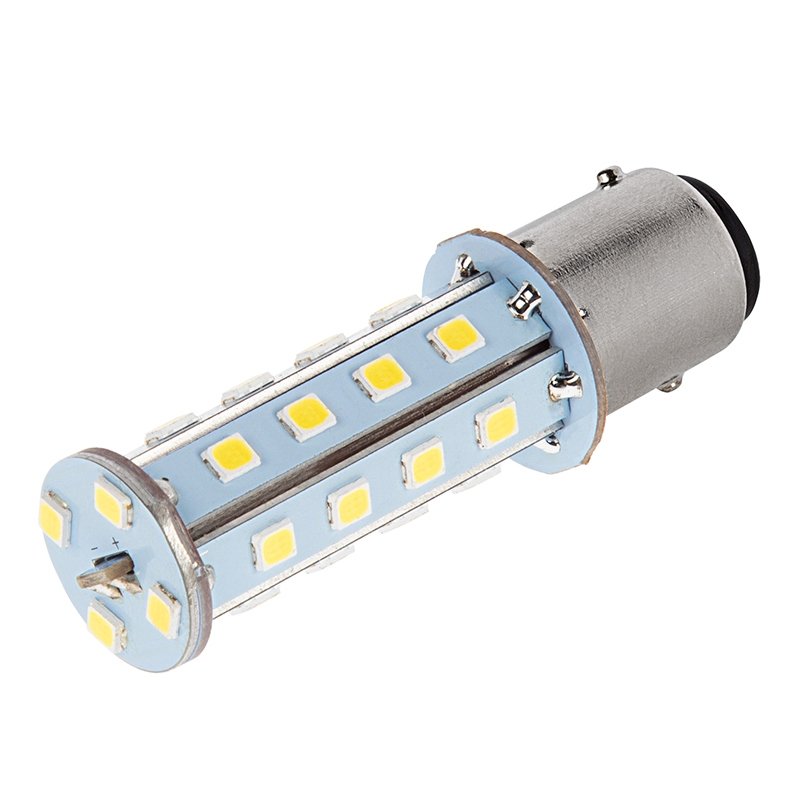

1157 LED Bulb - Dual Function 28 SMD LED Tower - BAY15D Bulb

1157 LED Bulb - Dual Function 28 SMD LED Tower - BAY15D Bulb

Part Number
1157-xHP28-T-CAR
In Stock

Starting at $7.99 ea.

Free Shipping: On orders $300 and up. Flat rate shipping for other qualifying orders. Learn More⇒

Frequently Bought Together
Loading...

Overview

LED replacement bulbs can fit vehicle tail lights, brake lights, reverse lights, turn signals or side marker lights. This 1157 dual-contact, dual-function bulb has 28 LEDs (0.5-watt SMD) that create a 360° viewing angle for better, allover light emission with reduced hot spots. Tower-style design with a BAY15D 15-mm bayonet base for easy plug-and-play installation—just twist to lock in place. The energy-efficient bulb operates with in a wide 9-14.8V DC range and is designed to last 30,000 hours on your car, truck, SUV, or van—25 times longer than incandescent bulbs. Available in cool white, natural white, amber and red. Not sold in pairs. Price per bulb.
3 Years
3 Years
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Specifications

Base Type BAY15D (Index Double Contact Bayonet)
Beam Angle 360°
Brand Super Bright LEDs
CAN Bus No
Comparable Wattage 50-55 Watt Incandescent
LED Quantity 28 LEDs
LED Type 0.5W SMD
Oversize Yes
Polarity Sensitive Yes
Reference Number 1157 (BAY15D)
Stock Numbers 1157, 2357, 2057, 7528, 1157A, 2357ALL, 1034, 3496, 198, 1157NA, 1157LL, 94, 2357NA, 2357LL, 1016, 2397, 2057A, 1157ALL, 1157ST, 2057NA, 2057ALL, 2057LL, 2057ST, 2397LL, 2357A, 1035, 7528L, 3496LL, 7528LL, 198LL, 1034NA, 1178A, 198NA, 1196, 1034A, 1034LL
Voltage 9-14.8 VDC
Print Specifications
Swipe left to see additional specifications
Part NO CCT Value Current Draw Efficacy Color Options Lumen Power Consumption
1157-AHP28-T 0.07A (70mA), 0.3A (300mA) Amber 110 Lumen, 370 Lumen 3.4 Watts
1157-AHP28-T-2PK 0.07A (70mA), 0.3A (300mA) Amber 110 Lumen, 370 Lumen 3.4 Watts
1157-NWHP28-T 4000K 0.06A (60mA), 0.28A (280mA) 107 lm/W Natural 4000K 110 Lumen, 420 Lumen 4.5 Watts
1157-NWHP28-T-2PK 4000K 0.06A (60mA), 0.28A (280mA) 107 lm/W Natural 4000K 110 Lumen, 420 Lumen 4.5 Watts
1157-RHP28-T 0.06A (60mA), 0.28A (280mA) Red 45 Lumen, 185 Lumen 3.1 Watts
1157-RHP28-T-2PK 0.06A (60mA), 0.28A (280mA) Red 45 Lumen, 185 Lumen 3.1 Watts
1157-WHP28-T 5700K 0.03A (30mA), 0.42A (420mA) 107 lm/W Cool 5700K 75 Lumen, 550 Lumen 4.5 Watts
1157-WHP28-T-2PK 5700K 0.03A (30mA), 0.42A (420mA) 107 lm/W Cool 5700K 75 Lumen, 550 Lumen 4.5 Watts

Accessories & Power Supplies

  1. LQC-x - Lever-Lock Quick Connect Terminal Blocks

    $0.29 ea.
    28-12 GA Lever-Lock Quick Connect Terminal Blocks Part Number: LQC-x
    In stock
    Lever-Lock Quick Connect Terminal Block for 28 to 12 Gauge wire. Alternative solution for traditional wire nuts to create quicker and more secure wire connections. Insert stripped wires and close the lever to secure wire and create a common connection between the other terminals, no tools required. Available with 2, 3 or 5 conductor terminals. Price for each.
  2. LED Light Load Resistor Kit - LED Turn Signal Hyper Flash & Warning Fix

    $4.95 ea.
    LED Light Load Resistor Kit - LED Turn Signal Hyper Flash & Warning Fix Part Number: RL-650-K-x
    In stock
    6 Ohm, 50 Watt load resistor kit. Solves common LED turn signal problems with hyperflashing and bulb out warning indicators. Connect one across each LED turn signal bulb to simulate filament Tail/Turn signal bulbs.

    View Installation Diagram & Instructions [PDF]. Mount the resistor away from painted surfaces, plastic, or other components that may be damaged by the heat generated by the resistor.
  3. FL2-RED LED Bulb Electronic Flasher

    $13.95 ea.

    FL2-RED LED Bulb Electronic Flasher - 2 Pin Red American Flasher and Bracket Part Number: FL2-RED-K
    In stock
    Pin Diagram
    FL2-RED-K Pin Diagram
    Legend
    • L = Load
    • + = 12V IN
    Description

    Electronic LED Flasher Relays have no minimum load-12VDC. Eliminates the need for load resistors, turn signals will flash at normal rate with or with out LED bulbs.

  4. Corrugated Split Loom

    $0.19 ea.
    Corrugated Split Loom Part Number: CSL-x
    In stock
    CSL-x series black polyethylene corrugated split looms. Protects and conceal wires, cables, and tubings. Splits down the side to allow covering of pre-installed wiring. Corrugated split looms are available in 1/4", 3/8", 1/2", and 3/4" sizes.
  5. FL3-RED LED Bulb Electronic Flasher

    $13.95 ea.

    FL3-RED LED Bulb Electronic Flasher - 3 Pin Red American Flasher Part Number: FL3-RED-K
    In stock
    Pin Diagram
    FL3-RED-K Pin Diagram
    Legend
    • L = Load
    • + = 12V IN
    • P = Pilot Light Output
    Description

    Electronic LED Flasher Relays have no minimum load-12VDC. Eliminates the need for load resistors, turn signals will flash at normal rate with or with out LED bulbs.

  6. View all

    All Accessories

    1 additional compatible accessories

  1. FL2-RED LED Bulb Electronic Flasher

    $13.95 ea.

    FL2-RED LED Bulb Electronic Flasher - 2 Pin Red American Flasher and Bracket Part Number: FL2-RED-K
    In stock
    Pin Diagram
    FL2-RED-K Pin Diagram
    Legend
    • L = Load
    • + = 12V IN
    Description

    Electronic LED Flasher Relays have no minimum load-12VDC. Eliminates the need for load resistors, turn signals will flash at normal rate with or with out LED bulbs.

  2. FL3-RED LED Bulb Electronic Flasher

    $13.95 ea.

    FL3-RED LED Bulb Electronic Flasher - 3 Pin Red American Flasher Part Number: FL3-RED-K
    In stock
    Pin Diagram
    FL3-RED-K Pin Diagram
    Legend
    • L = Load
    • + = 12V IN
    • P = Pilot Light Output
    Description

    Electronic LED Flasher Relays have no minimum load-12VDC. Eliminates the need for load resistors, turn signals will flash at normal rate with or with out LED bulbs.

  1. LQC-x - Lever-Lock Quick Connect Terminal Blocks

    $0.29 ea.
    28-12 GA Lever-Lock Quick Connect Terminal Blocks Part Number: LQC-x
    In stock
    Lever-Lock Quick Connect Terminal Block for 28 to 12 Gauge wire. Alternative solution for traditional wire nuts to create quicker and more secure wire connections. Insert stripped wires and close the lever to secure wire and create a common connection between the other terminals, no tools required. Available with 2, 3 or 5 conductor terminals. Price for each.
  2. Corrugated Split Loom

    $0.19 ea.
    Corrugated Split Loom Part Number: CSL-x
    In stock
    CSL-x series black polyethylene corrugated split looms. Protects and conceal wires, cables, and tubings. Splits down the side to allow covering of pre-installed wiring. Corrugated split looms are available in 1/4", 3/8", 1/2", and 3/4" sizes.
  3. Weatherproof Dolphin Super B Connector with Sealant - 100 Pieces

    $9.95 ea.
    Weatherproof Dolphin Super B Connector with Sealant - 100 Pieces Part Number: DC-x-S
    In stock

    Dolphin Super B Connectors provide the industry’s most reliable connection with their unique design and tine structure. They reduce costs, will not corrode and do not require insulation stripping of most wire gauges before insertion. Weatherproof IP65 rating. Available in a 100 Pack.

  4. Automotive Mini Blade Fuses

    $0.25 ea.
    Automotive Mini Blade Fuses Part Number: MAF-x
    In stock
    Miniature blade-mounting automotive fuses. Select from 2 Amp to 30 Amp fuse. Price for each however bulk discounts are available.
  5. Black Cable Ties - 10 Pack

    $0.39 ea.
    Black Cable Ties - 10 Pack Part Number: CT-B-10
    In stock
    4, 6, and 11 inch Cable tie - .875" max dia.; 6 inch Cable tie - 1.50" max dia.; 11 inch Cable tie with - 3.062" max dia.; 16 inch Stud Mount Cable tie - 4.125" max dia.
  6. psb-x-hole-snap-bushing

    $0.15 ea.
    Hole Snap-In Strain Relief Bushing Part Number: PSB-x
    In stock
    Eliminates sharp edges and protects wires and harnesses passing through holes in metal plates and panels. Resists up to 35 pounds pull.
  7. View all

    Installation Supplies
  1. BA15 Bayonet Base Sockets - Wired

    $1.99 ea.
    BA15 Bayonet Base Sockets - Wired Part Number: BA15x-SW
    In stock
    Replacement BA15 sockets accept 15-mm bayonet base bulbs. Socket fits single-contact single-filament (BA15S) 1156 bulbs, dual-contact dual-filament (BAY15D) 1157 bulbs or dual-contact single-filament (BA15D) 1142 bulbs. Durable construction with 6” power wires. Mounting holes (spaced 1-1/4” apart) let you secure the socket in place. Price per socket.
  2. BA15 Bayonet Base Sockets - Wired

    $2.99 ea.
    BA15 Bayonet Base Sockets - Wired Part Number: BA15x-SW2
    In stock
    Replacement BA15 sockets accept 15-mm bayonet base bulbs. Socket fits single-contact (BA15S) 1156 bulbs or dual-contact dual-filament (BAY15D) 1157 bulbs. Durable construction with 4-1/2” power wires. Price per socket.
  1. LED Light Load Resistor Kit - LED Turn Signal Hyper Flash & Warning Fix

    $4.95 ea.
    LED Light Load Resistor Kit - LED Turn Signal Hyper Flash & Warning Fix Part Number: RL-650-K-x
    In stock
    6 Ohm, 50 Watt load resistor kit. Solves common LED turn signal problems with hyperflashing and bulb out warning indicators. Connect one across each LED turn signal bulb to simulate filament Tail/Turn signal bulbs.

    View Installation Diagram & Instructions [PDF]. Mount the resistor away from painted surfaces, plastic, or other components that may be damaged by the heat generated by the resistor.
