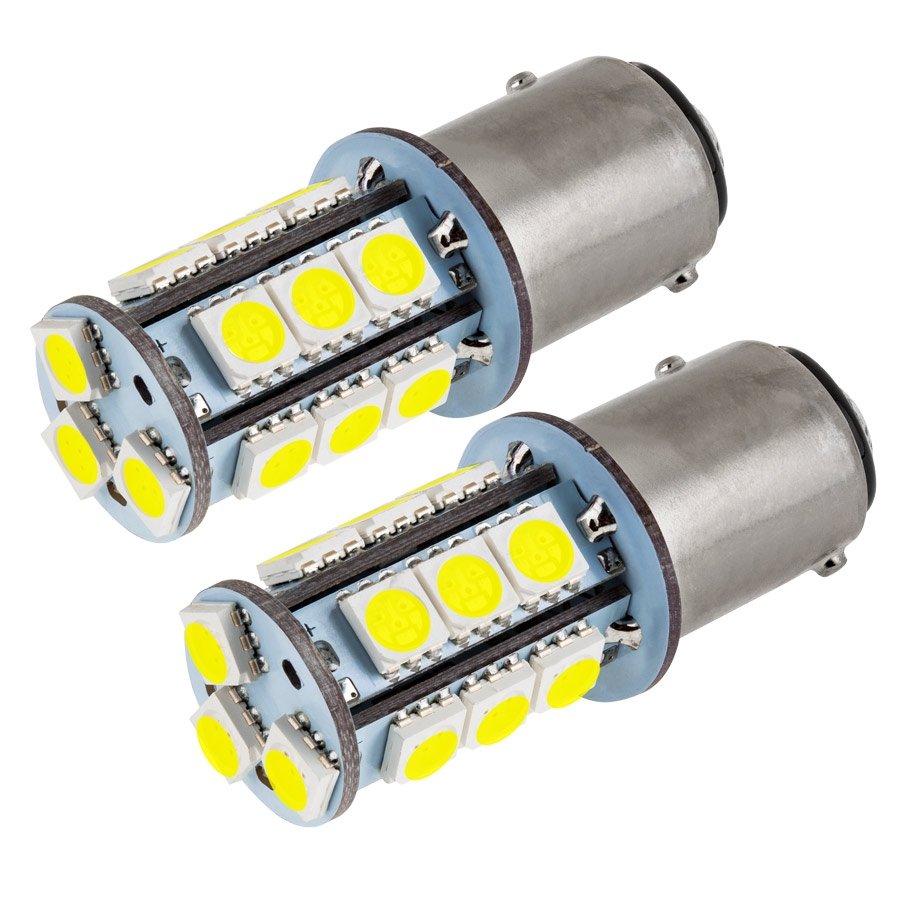

Name: 1157 LED Bulb - Dual Function 18 SMD LED Tower - 2 Pack
Brand: Super Bright LEDs
SKU: 1157-CW18-T-2PK
Price: 11.90 USD
Availability: InStock
Rating: 4.1 (87 reviews)

Overview

LED replacement bulbs can fit vehicle tail lights, brake lights, reverse lights, turn signals or side marker lights. This 1157 dual-contact, dual-function bulb has 18 LEDs (5050 SMD) that create a 360° viewing angle for better, allover light emission with reduced hot spots. Amber lights feature high-intensity LEDs that are ideal for high brightness LED applications. Tower-style design with a BAY15D 15-mm bayonet base for easy plug-and-play installation—just twist to lock in place. The energy-efficient bulb operates with in a wide 10-30V DC range and is designed to last 30,000 hours on your car, truck, SUV, or van—25 times longer than incandescent bulbs. Available in cool white, amber and red. Not sold in pairs. Price per bulb.

In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.

Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Specifications

Base Type	BAY15D (Index Double Contact Bayonet)
Beam Angle	360°
Brand	Super Bright LEDs
CAN Bus CAN Bus LED bulbs are simple plug-and- play LED bulbs which are made specifically for CAN Bus-equipped vehicles. These bulbs work with your vehicle's advanced computer system, so when your vehicle's computer reads them, they respond back correctly. To see if your vehicle operates with a CAN Bus system, simply remove the bulb you're looking to replace, start your vehicle, and if you have a "Bulb Out" message on your dash you have a CAN Bus system.	No
LED Lifetime	30000 Hours
LED Quantity	18 LEDs
LED Type	5050 SMD
Operating Temperature	-30~+85 °C (-22~+185 °F)
Oversize	No
Polarity Sensitive Polarity Sensitive (YES) Bulbs have Plus and Minus (like batteries) and will only work when polarity is correct. If bulb does not work when installed, turn it around in the socket. Polarity Sensitive (NO) Bulbs do not have Plus and Minus and will work either way installed in the socket.	Yes
Reference Number	1157 (BAY15D)
Standards And Certifications Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	CE
Stock Numbers	1157, 2357, 2057, 7528, 1157A, 2357ALL, 1034, 3496, 198, 1157NA, 1157LL, 94, 2357NA, 2357LL, 1016, 2397, 2057A, 1157ALL, 1157ST, 2057NA, 2057ALL, 2057LL, 2057ST, 2397LL, 2357A, 1035, 7528L, 3496LL, 7528LL, 198LL, 1034NA, 1178A, 198NA, 1196, 1034A, 1034LL
Voltage	10-30 VDC

Print Specifications

Part NO	CCT Value CCT Value	Comparable Wattage	Current Draw	Efficacy	Color Options	Lumen	Power Consumption
1157-A18-T			0.18A (180mA)		Amber	210 Lumen	1.4 Watts
1157-A18-T-2PK			0.18A (180mA)		Amber	210 Lumen	1.4 Watts
1157-CW18-T	6500K	10-15 Watt Incandescent	0.18A (180mA)	56 lm/W	Cool 6500K	270 Lumen	2.5 Watts
1157-CW18-T-2PK	6500K	10-15 Watt Incandescent	0.18A (180mA)	56 lm/W	Cool 6500K	270 Lumen	2.5 Watts
1157-R18-T			0.12A (120mA)		Red	53 Lumen	1.4 Watts
1157-R18-T-2PK			0.12A (120mA)		Red	53 Lumen	1.4 Watts

Comparing Lumens Across Colors: Why Do Colored Bulbs Have Such Low Lumen Values

Lumen meters are a great way to measure white light output but can be deceptive for colored bulb intensity. Lumens measure light wavelengths in all colors of the visible spectrum. Because multiple wavelengths create white light and colored bulbs are a single-wavelength source, colored bulbs will have lower lumen readings. However, they will appear equally as bright as a white bulb.

Accessories & Power Supplies

All Accessories

Load Resistors

Flashers & Relays

Installation Supplies

Bulb Sockets

Accessories Links

Accessory Category

Accessory Type:

$4.95 ea.

LED Light Load Resistor Kit - LED Turn Signal Hyper Flash & Warning Fix Part Number: RL-650-K-x
In stock

6 Ohm, 50 Watt load resistor kit. Solves common LED turn signal problems with hyperflashing and bulb out warning indicators. Connect one across each LED turn signal bulb to simulate filament Tail/Turn signal bulbs.

View Installation Diagram & Instructions [PDF]. Mount the resistor away from painted surfaces, plastic, or other components that may be damaged by the heat generated by the resistor.

$1.99 ea.

BA15 Bayonet Base Sockets - Wired Part Number: BA15x-SW
In stock

Replacement BA15 sockets accept 15-mm bayonet base bulbs. Socket fits single-contact single-filament (BA15S) 1156 bulbs, dual-contact dual-filament (BAY15D) 1157 bulbs or dual-contact single-filament (BA15D) 1142 bulbs. Durable construction with 6” power wires. Mounting holes (spaced 1-1/4” apart) let you secure the socket in place. Price per socket.
$2.99 ea.

BA15 Bayonet Base Sockets - Wired Part Number: BA15x-SW2
In stock

Replacement BA15 sockets accept 15-mm bayonet base bulbs. Socket fits single-contact (BA15S) 1156 bulbs or dual-contact dual-filament (BAY15D) 1157 bulbs. Durable construction with 4-1/2” power wires. Price per socket.
