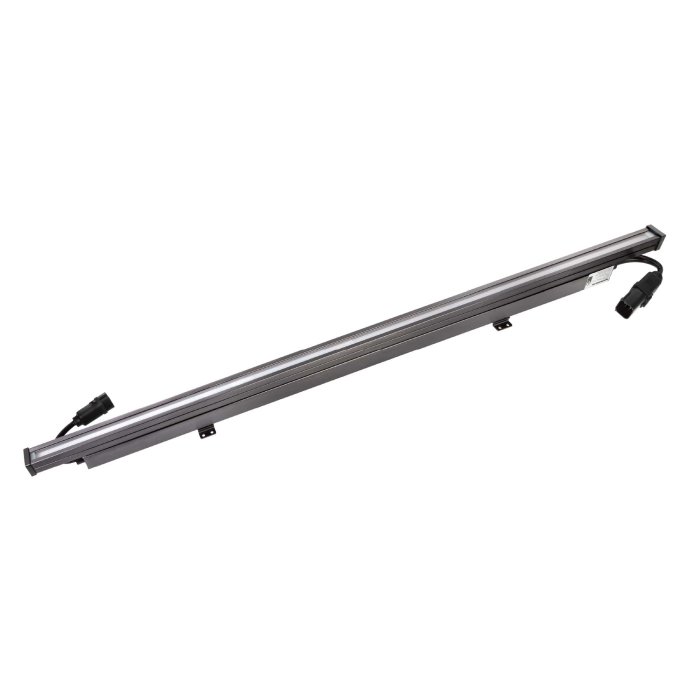

48" RGBW Linear LED Wall Washer - 25W - DMX512 Compatible - 120-277 VAC - 3000K / 4000K / 5000K
Part Number:
WW-RGBxK25-3085S-DMX
Manufacturer Part Number:
Starting at
$289.99
ea.
Starting at
Was
In Stock
Features
- Operates with a DMX controller
- Select from a range of RGB colors and CCTs
- IP66 waterproof construction for exterior applications
- Durable aluminum construction with a tempered glass lens
- Link up to 30 fixtures together
Overview
Illuminate interior and exterior walls and surfaces using the RGBW linear LED wall washer. The wall wash fixture is IP66 waterproof, with a corrosion-resistant aluminum housing and a non-yellowing tempered glass lens, perfect for outdoor applications. It has a focused 30° x 85° beam ideal for accenting walls and displays. Use a DMX controller to mix full RGB color, producing up to 16 million colors, and select between warm white 3000K, neutral white 4000K, or cool white 5000K color temperatures. Link up to 30 lights together using 1', 6', or 15' interconnects. Shop an array of optional DMX accessories and mounting accessories here.
Product Details:
- Wall Washer Input Cable required for operation
- For adjustable mounting, use an optional hinge mount or optional extendable mounting arms
- Aluminum housing and tempered glass lens
- IP66 waterproof
- Decoder is required for DMX operation
- Use optional DMX terminator to seal and complete run
- Max run: 30 fixtures
- 120-277 VAC
- Certified by UL
- 5-year warranty
Documents
WW Series Specification Sheet Applications:
- Accent Lighting
- Displays
- Wall Washing
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
Specifications
| Ambient Operating Temperature | -40 to 50 °C (-40 to 122 °F) |
|---|---|
| Beam Angle | 30° X 85° |
| Brand | Super Bright LEDs |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL |
|
CRI
CRI
|
80+ |
| Dimmable | No |
|
Distribution Type
Distribution Type
|
NEMA 5x7 |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Finish | Gray |
| Input Connection Type | 6-Pin Waterproof Connector |
| Integrated Surge Protection | 4 kV |
|
IP Rating
IP Rating
|
IP66 |
| Rated Life (L70) | 50000 Hours |
| Length | 48 in. (4 ft) |
| Lens Color | Clear |
| Lens Type | Tempered Glass |
| Lumens | 1125 Lumens |
| Max Run | 30 |
| Operating Voltage | 120-277 VAC |
| Output Connection Type | 6-Pin Waterproof Connector |
| UL File Number | E366643 |
| Warranty | 5 Year |
| Wattage | 25 Watts |
| Part NO |
CCT
CCT
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
LED Color | Product Materials | Product Weight |
|---|---|---|---|---|---|
| WW-RGB30K25-3085S-DMX | 3000K | 210 mA @ 120 VAC, 90 mA @ 277 VAC | Warm White, RGB+Warm White, RGB | Aluminum, Glass | 5.3 lb (2.4 kg) |
| WW-RGB40K25-3085S-DMX | 4000K | 90 mA @ 277 VAC, 208 mA @ 120 VAC | RGB+Natural White | Aluminum Housing, Glass Lens | 6.0 lb (2.7 kg) |
| WW-RGB50K25-3085S-DMX | 5000K | 90 mA @ 277 VAC, 208 mA @ 120 VAC | RGB+Cool White | Aluminum Housing, Glass Lens | 6.0 lb (2.7 kg) |
