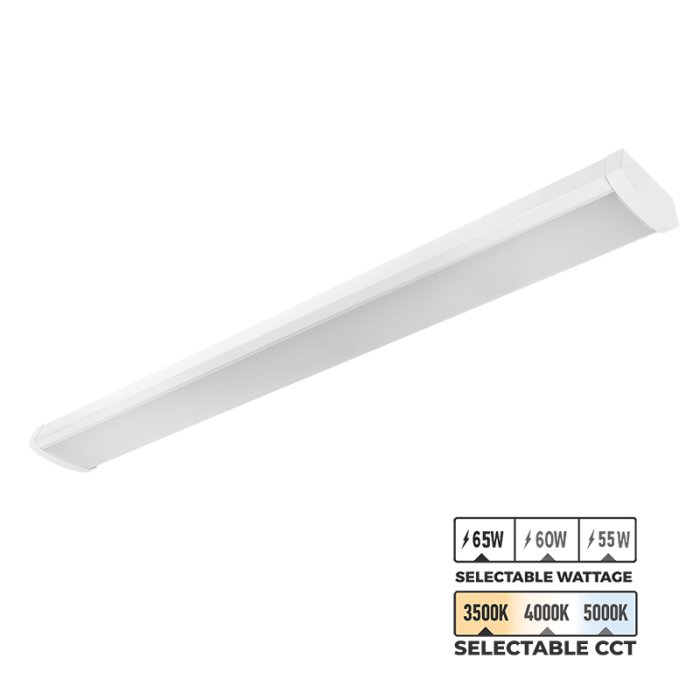

Name: 4ft LED Wraparound Light Fixture - Selectable CCT - Selectable Wattage - Up To 7,800 Lumens - 3500K / 4000K / 5000K - 55W / 60W / 65W
Brand: Super Bright LEDs
SKU: WRL-SW3C65
Price: 69.99 USD
Availability: InStock

Overview

Replace outdated fluorescent wraparound lights using the 4ft LED wraparound light fixture. The field-selectable wattage can replace fluorescent fixtures using up-to three 4-foot 32W T8 tubes. Using the switches on the internal driver, select the desired wattage and color temperature for the application setting. A curved PMMA lens diffuses the light beam creating 110° of even and glare-free light. Surface mount the fixture to a junction box. Ideal for commercial and residential applications such as offices, schools, and workshops.

Product Details:

Aluminum housing and frosted PMMA lens
0-10V Dimming
Surface mount to junction box
120-277 VAC
Certified by UL
DLC Listed
5-year warranty

The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here

This product has been certified by Underwriter Laboratories to their engineering and safety standards.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Commercial Applications
Residential Lighting
Workshop Lighting
Garages
Hospitals
Schools
Offices
Basements

Specifications

Ambient Operating Temperature	-20~+50 °C (-4~+122 °F)
Beam Angle	110°
Brand	Super Bright LEDs
CCT Value	3500K, 4000K, 5000K
Certifications/Compliance Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	Certified by UL, DLC
CRI	80+
Current Draw	199/217/235 mA @ 277 VAC, 458/500/542 mA @ 120 VAC
Dimensions	4ft
Dimmable	Yes
Dimming Type TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton. Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application. Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned. 1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. 0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.	0-10V
Efficacy	120 lm/W
Environmental Rating	Non-weatherproof, Suitable for Damp Locations
Equivalency	3-lamp 32W 4' T8 Tubes
Finish	White
Input Connection Type	Pigtail
Integrated Surge Protection	2 kV
IP Rating	IP20
LED Color	Cool White, Natural White, Warm White, Selectable CCT
Length	48in (4ft)
Lens	Frosted
Linkable	No
Intensity	6600 Lumen, 7200 Lumen, 7800 Lumen
Mount Type	Surface
Operating Voltage	120-277 VAC
Power Consumption	55 Watts, 60 Watts, 65 Watts
Power Factor	≥0.9
Product Materials	Aluminum, PMMA
Product Weight	4lb 4.8oz (1.95kg)
Rated Life (L70)	100000 Hours
Shipping Exclusions and Details Shipping exclusions apply to some products, making them ineligible for free shipping. Any order with a combined weight of over 150 pounds or containing an excluded item will be excluded from free shipping automatically. One or more exclusions may apply to the same product as well. Exclusions per item may include, but are not limited to, the following: • Any package with any two dimensions of the package over 30 inches. • Any package with a single side of the package over 42.3 inches. • Any package with a total combined length of the longest side added to 2 times the second and third longest sides over 130 inches. (L + 2H + 2W) • Any package with a weight over 50 pounds.	Excluded From Free Shipping
Warranty	5 Year
Wire Gauge	18 AWG
