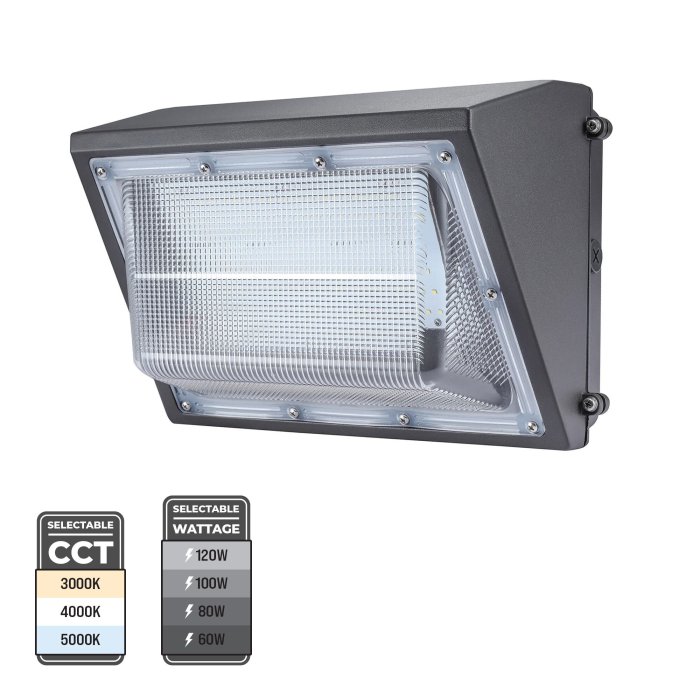

Field Selectable LED Wall Pack - Semi Cutoff - Up To 15,600 Lumens - 250W MH Equivalent
Part Number:
WP-60-80-100-120W-XXK-U
Manufacturer Part Number:
$105.99
ea.
Was
In Stock
Features
- Selectable Wattages: 60W, 80W, 100W, 120W
- Selectable CCTs: 3000K, 4000K, 5000K
- Equivalency up to 250W metal-halide fixtures
Related Products
Overview
This Field Selectable LED Wall Pack has three color temperatures and four wattages to customize the fixture to the application area. Use the switch inside the fixture to select the wattage from 60W, 80W, 100W, or 120W, and the color temperature from 3000K, 4000K, or 5000K. The fixture has a bronze die-cast aluminum housing, a prismatic glass lens, and an IP65 weatherproof rating for outdoor installations. Traditional design directs light downward, decreasing wasted light. Wide beam distribution is ideal for parking lots, building exteriors, and warehouses.
Product Details:
- Surface mount directly to junction box or use 3/4" conduit entry points
- Die-cast aluminum housing with bronze powder-coated finish
- 120-277 VAC
- DLC 5.1 Premium
- 5-year warranty
Applications:
- Building Exteriors and Facades
- Commercial Buildings
- Industrial Facilities
- Perimeters
- Residential Complexes
- Security Lighting
- Warehouses
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.
Specifications
| Beam Angle | 120° |
|---|---|
| Brand | LEDSION |
|
CCT
CCT
|
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC Premium, ETL Listed, FCC |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
500/660/830/990 mA @120 VAC, 210/280/360/430 mA @ 277 VAC |
| Efficacy | 130 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations |
| Equivalency | 250 Watt Metal Halide |
| Finish | Bronze |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lens Type | Polycarbonate |
| Lumens | 7800 Lumens, 10400 Lumens, 13000 Lumens, 15600 Lumens |
| Operating Voltage | 120-277 VAC |
|
Photocell
Photocell
What is a Photocell and How Does It Work?When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically.Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed?Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type.Shorting CapPhotocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized.DIP Switch or Slide SwitchWhile DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts.Disconnect the WiringSome photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch. |
Integrated Photocell |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Product Weight | 6.4 lb (2.9 kg) |
| Warranty | 5 Year |
| Wattage | 60 Watts, 80 Watts, 100 Watts, 120 Watts |
