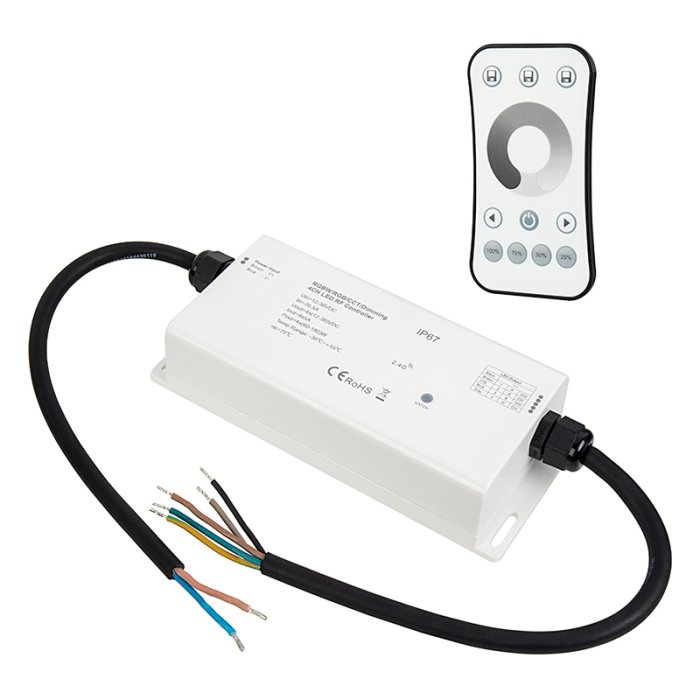

Waterproof 4 Channel Receiver with Single Color Dimming RF Remote - 5 Amps/Channel

Waterproof 4 Channel Receiver with Single Color Dimming RF Remote - 5 Amps/Channel - DS-CO4-DM

Part Number
DS-CO4-DM

Features

  • 4 channel constant voltage receiver with single color dimming RF remote
  • IP67 waterproof - fully enclosed plastic case
  • Remote controls 0-100% dimming
  • Pair additional remotes to single receiver (must pair any remote for initial use)
  • Output power 4 x 180-watts
  • 12–36 VDC
  • 5 year warranty
View more details
In Stock

$87.95 ea.

Free Shipping: On orders $300 and up. Flat rate shipping for other qualifying orders. Learn More⇒

Loading...

Overview

DS series Receiver is a constant voltage controller that allows up to 4 channels. Fully enclosed plastic housing is rated IP67 for wet conditions and outdoor application. Easily pairs with remote to dim single color LED lights between 0-100%.

Remotes must be paired as part of the installation process and do not come pre-paired. Please see manual for details.
Product Details:
  • Input Voltage Range: 12–36 VDC
  • Max Input Current: 20.5 A
  • Max. Output Current: 5 A per channel (20 A total)
  • Output power 4 x 180-watts
  • PWM Frequency 500Hz
  • Transmission Range: 98ft
  • Repeats signal to another receiver with in 98ft
  • 4096 levels for smooth 0-100% dimming
  • Protects against overheat, overload, and short circuit
CE
CE
5 Years
5 Years
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

  • Light Bars
  • Light Sheets
  • Panel Lights
  • Strip Lights

Specifications

Amps Per Channel 5 Amps/CH
Battery Type CR2032 x1 (included)
Channels 4 Channels
Control Type Handheld (RF) Remote
Input Connection Type Pigtail
IP Rating IP67
Max Input Current 20.5 A
Operating Temperature -30~+55 °C (-22~+131 °F)
Output Current Draw per Channel 20 A (5 A x 4 channels*)
Output Voltage 12-36 VDC
Remote Range Up to 30m (98ft)
Standards And Certifications CE
Print Specifications

To pair a remote, press match button, then immediately press on/off button on the remote. Connected light(s) will flash three times to indicate successful pairing.

DS-CO4 Dimming Pairing Buttons
